Fine wood dust is the quiet hazard in every shop. It hangs in the air for hours after the sander switches off, it gets into the alveoli where it cannot be cleared, and years of exposure show up as chronic bronchitis, reduced lung function and elevated lung cancer risk. MDF and plywood add respirable silica on top of that. If you want the short version of the best air filtration systems for woodworking shops, the answer is a hanging unit that moves enough air, several times an hour, with replaceable filters you can actually buy.
That is the whole argument, and the woodworking forums have made it for years. The most-repeated point over on r/woodworking is that airflow volume beats filtration grade: if the unit clears the room eight times an hour, the difference between 99.9 percent and 90 percent capture barely matters. We built this roundup on that principle. Every unit below is judged first on rated CFM against the volume of your shop, and only then on how fine the filter is.
We spent weeks reading spec sheets, mounting hardware, filter dimensions and owner reports across nine units, and we cross-checked the sizing math, the ceiling-load questions and the noise complaints that dominate the forum threads. We did not measure airflow ourselves in a calibrated chamber, so treat our CFM numbers as manufacturer ratings and our fit recommendations as math you can run on your own shop. If you want a wider bench-tool comparison while you are setting up, our jigsaw roundup covers the tools that make most of the dust in the first place.
Everything in this guide is current as of 2026, and we update it as new models land. The range covers everything from a 400 CFM hanging unit for a single-car garage to a 1000 CFM professional system and two HEPA air scrubbers for finishing work.
Table of Contents
Top 3 Picks for Woodworking Shop Air Filtration in September 2026
These three cover the most shop sizes and the most shop types. The WEN 3410 is the unit most people should buy, the VEVOR is the value pick if your work includes finishing chemicals, and the ALORAIR is the one to buy when warranty length is your top concern.
WEN 3410 400 CFM
- 400 CFM on 3 speeds
- 1-micron inner plus 5-micron pre-filter
- RF remote with programmable timer
- 50 to 60 dB
- 2-year warranty
VEVOR 550 CFM Scrubber
- H13 HEPA at 99.97 percent of 0.3 microns
- MERV-10 pre-filter plus carbon stage
- 550 CFM adjustable
- Stackable up to three
ALORAIR HEPA 550
- Three-stage MERV-10 carbon HEPA
- 270 to 550 CFM adjustable
- 10-year limited warranty
- ETL certified
- 39.7 pounds
Every Shop Air Filter We Reviewed at a Glance in September 2026
Nine units, all dedicated ambient air filtration systems rather than dust collectors. CFM is the rated maximum, and the noise figure is the manufacturer’s rating at the relevant setting.
| Product | Specifications | Action |
|---|---|---|
| WEN 3410 3-Speed Remote Filter |
|
Check Latest Price |
 DEWALT DWXAF101 Hanging HEPA Unit |
|
Check Latest Price |
 JET AFS-1000C 1000 CFM System |
|
Check Latest Price |
 Abestorm DecDust 1350 Vortex Filter |
|
Check Latest Price |
 Abestorm DecDust 1080 Three-Sided Intake |
|
Check Latest Price |
| ALORAIR HEPA 550 Air Scrubber |
|
Check Latest Price |
| VEVOR 550 CFM Air Scrubber |
|
Check Latest Price |
 Purisystems PuriCare 500IG Hanging Filter |
|
Check Latest Price |
 POWERTEC AF4001C Filter Bundle |
|
Check Latest Price |

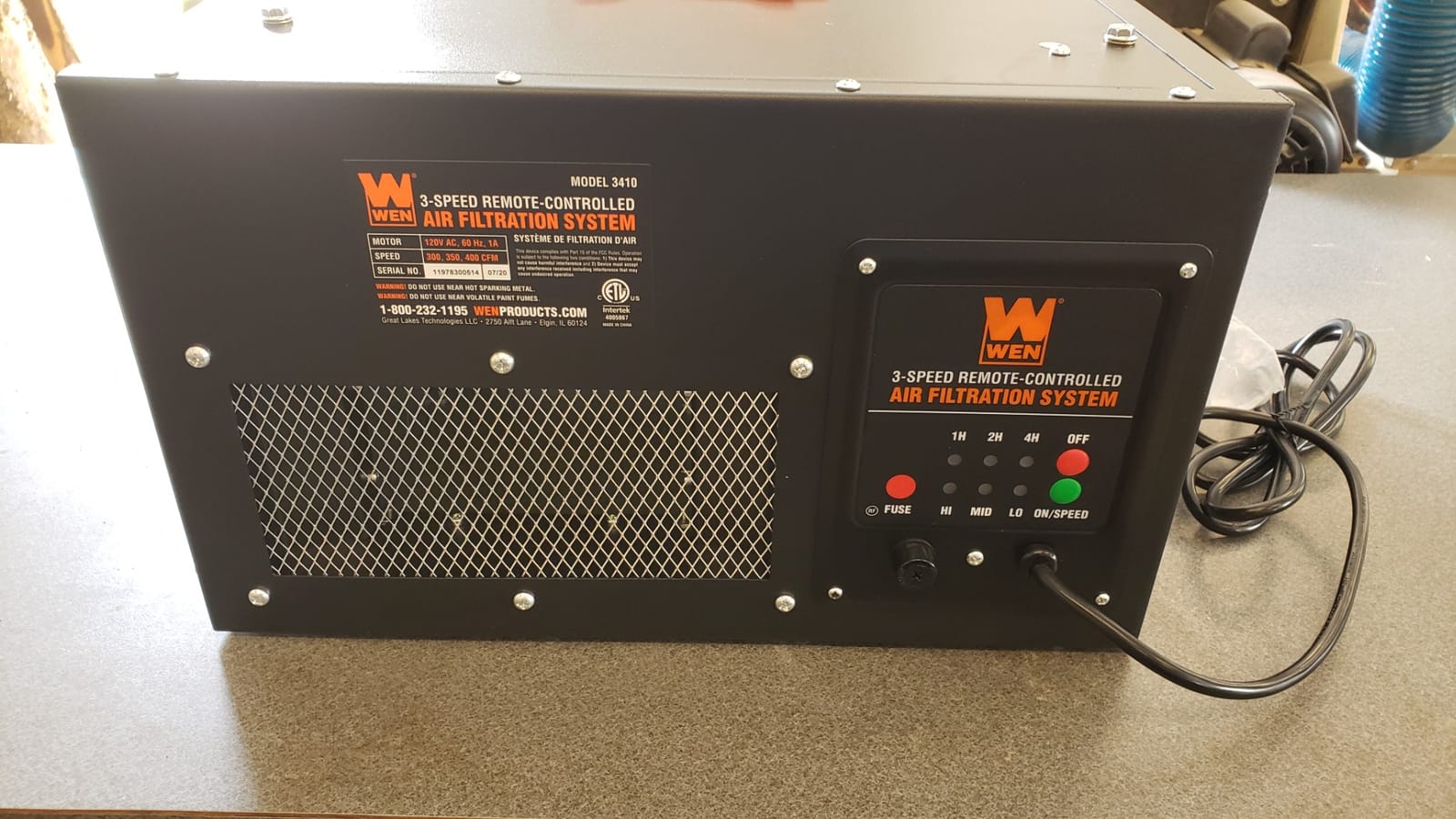

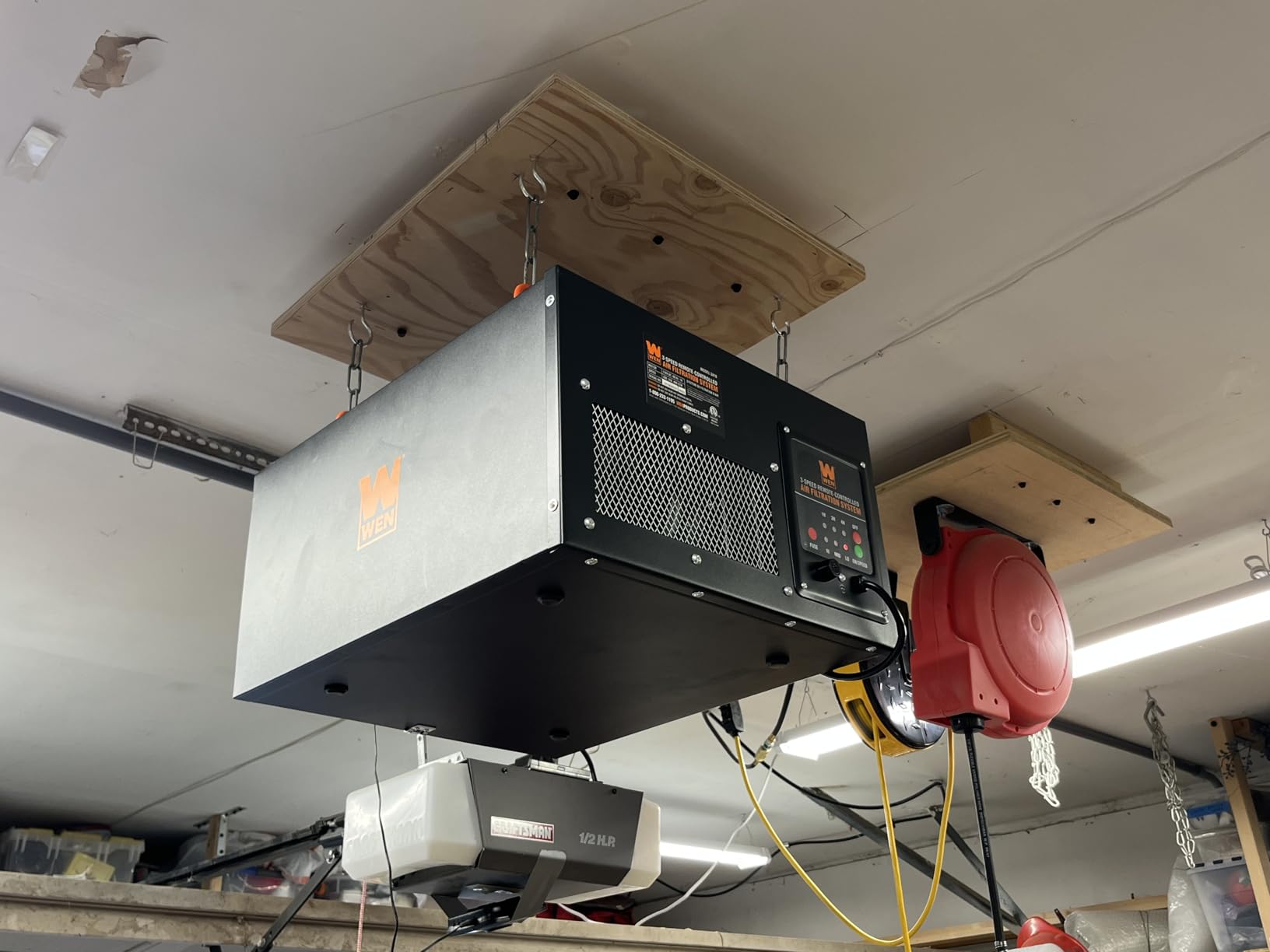

1. WEN 3410 3-Speed Remote Filter – Best Overall
WEN 3410 3-Speed Remote-Controlled Air Filtration System (300/350/400 CFM), Basic w/ RF Remote (400 CFM) , Black
400 CFM max
1-micron inner plus 5-micron pre-filter
RF remote and timer
60 dB, 2-year warranty
Pros
- RF remote works without line of sight from 26 ft
- Programmable timer with automatic shutoff
- 1-micron inner filter plus 5-micron pre-filter
- Covers rooms up to 400 sq ft
- Runs quietly enough to work beside
Cons
- 400 CFM ceiling limits it to small shops
- No auto mode or air quality sensor
- Some owners report remote dropouts at range
If you take one recommendation from this whole guide, take this one. The WEN 3410 has been the first unit in the shopping carousels and in every video roundup for the past couple of years, and the 4.6 star average across more than 5,600 reviews is the deepest review base of anything in this category. That matters in a field where listings routinely show a single review.
At 400 CFM it is not the biggest unit here, and that is the honest limitation. In a 400 square foot shop with an 8 foot ceiling it delivers about 7.5 air changes an hour on high, which is right in the band you want. Push past 500 square feet and you should be looking at one of the 780 to 1350 CFM hanging units further down.
The two-stage filter arrangement is the reason it punches above its size. A 5-micron pre-filter catches the coarse sawdust and sanding grit, and a 1-micron inner filter handles the fine fraction, so the fine stage stays alive far longer than it would if it took the full load. Both are replaceable, and the frames are a size you will find in several other brands’ units.
Control is where this unit separates itself from cheaper boxes. The RF remote works from 26 feet and through obstructions, so you can change speed from the machine you are standing at. The programmable timer shuts the unit down after a set interval, which stops the habit of leaving it running overnight all winter.
Noise is rated at 50 to 60 dB, which is about the level of a moderate conversation. In a shop that already has a table saw running, that reads as background rather than competition. It draws only 12.42 watts, so leaving it on all day barely touches a shop circuit.
When the WEN 3410 is the wrong choice
Buy a bigger unit if your sanding is heavy, if you cut a lot of MDF, or if your shop has two floors and you want one machine per floor rather than one central machine trying to serve both. A user on a vann’s Air Force thread runs two of these in a 24 by 36 shop, one on each level, and reports they do a decent job of clearing dust, which is a sensible use of two smaller machines.
What owners notice in the first month
The most common comment is about the remote and the timer, not the filtration, which tells you how much of the real experience is convenience. The second most common is that 400 CFM is the ceiling for anyone with more than one machine running at once. Check your filter indicator habits early rather than waiting for airflow to drop, because a loaded inner filter is the main reason a unit like this underperforms its rating.

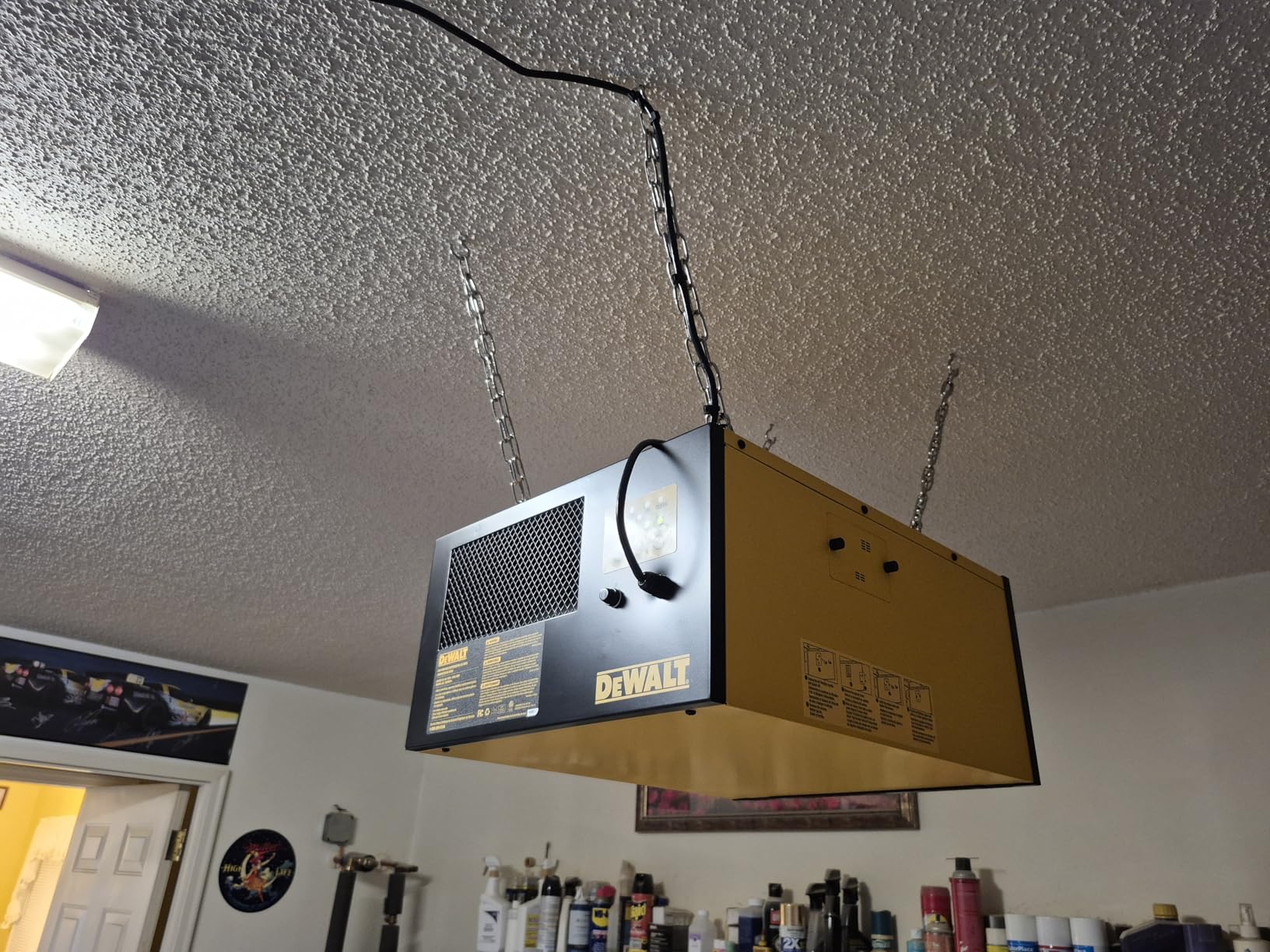

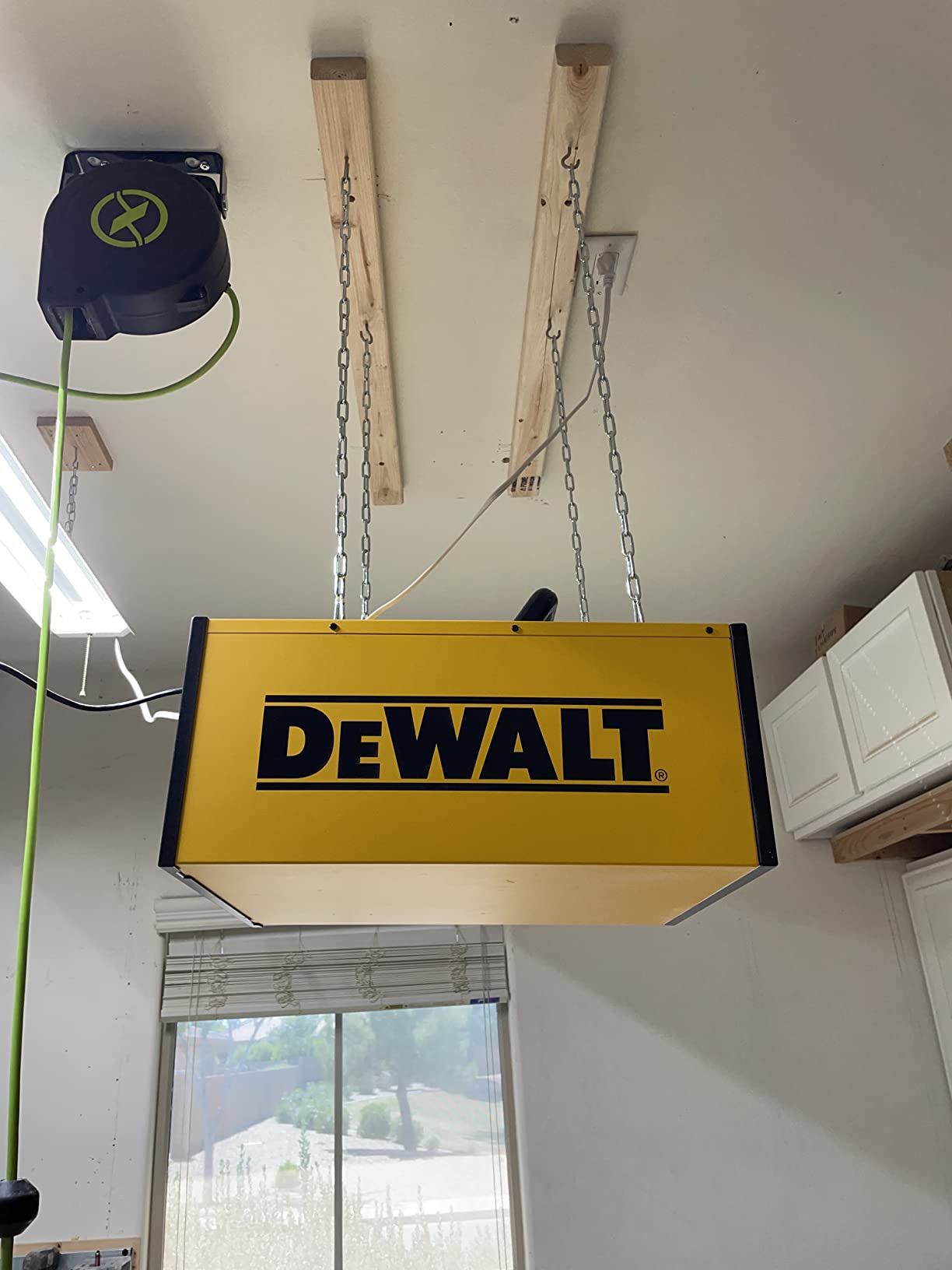

2. DEWALT DWXAF101 Hanging HEPA Unit – Best for Allergy-Sensitive Shops
DEWALT Air Filtration System Dust Collector for Woodworking DWXAF101
H11 HEPA plus cotton pre-filter
Four modes with auto sensing
8-hour timer
Ceiling mount, 3-year warranty
Pros
- H11 HEPA stage captures 95 percent or more of 0.3 micron particles
- Auto mode senses air quality and adjusts itself
- Washable pre-filter cuts maintenance cost
- 8-hour timer with automatic shutoff
- Hooks and chains included for ceiling hanging
Cons
- IR remote needs a clear line of sight
- Heavier electrical draw at 105 watts
- Only 153 reviews so far
The DWXAF101 is the unit to look at if fine airborne particles are the thing worrying you most, or if anyone in the shop has a respiratory condition. Instead of the common 1-micron inner filter, it uses an H11 HEPA stage rated at capturing more than 95 percent of 0.3 micron particles, backed by a static cotton pre-filter.
That filtration difference is real but, as we will get into below, it is not the first number you should shop on. The honest framing is that this unit wins on filtration grade and on control, and loses somewhat on remote convenience.
Four operating modes are the feature owners mention most: high, mid, low and an auto mode that uses a built-in sensor to read air quality and adjust on its own. For someone who is not in the shop every minute, auto mode does more for consistency than a manual speed you forget to raise after lunch.
The timer runs 1, 2, 4 and 8 hours with automatic shutoff, and there is a filter replacement indicator on the panel so you are not guessing. The washable pre-filter is a genuine running-cost saving, since it is the stage that takes the heaviest dust load and would otherwise be the one you replace most often.
It weighs 20.9 pounds and measures 10.2 by 15.9 by 20 inches, and the box includes four chain and hook sets for ceiling hanging. The noise rating is 64 dB, which is a little louder than the WEN at its top setting, so it is not the pick for a shop where you listen to a radio while working.
Who should look past this unit
If you need a remote that works from any angle without pointing at the unit, this is not it, because the IR remote needs a line of sight. It also draws 105 watts, which is high enough that you should check what else is on that circuit. Anyone whose real problem is that 400 CFM is not enough will not find enough airflow here either, and should read up to the 1000 CFM units.
Why the auto mode matters more than the HEPA label
The HEPA stage is the reason to buy it, but the sensor is the reason you will keep it running correctly. A unit that sits on low all day in a sanding-heavy shop is barely doing anything, and auto mode is the simplest fix for that without adding a timer to your habits. If you do not mind checking a speed manually, one of the larger CFM units does more physical work for the same effort.

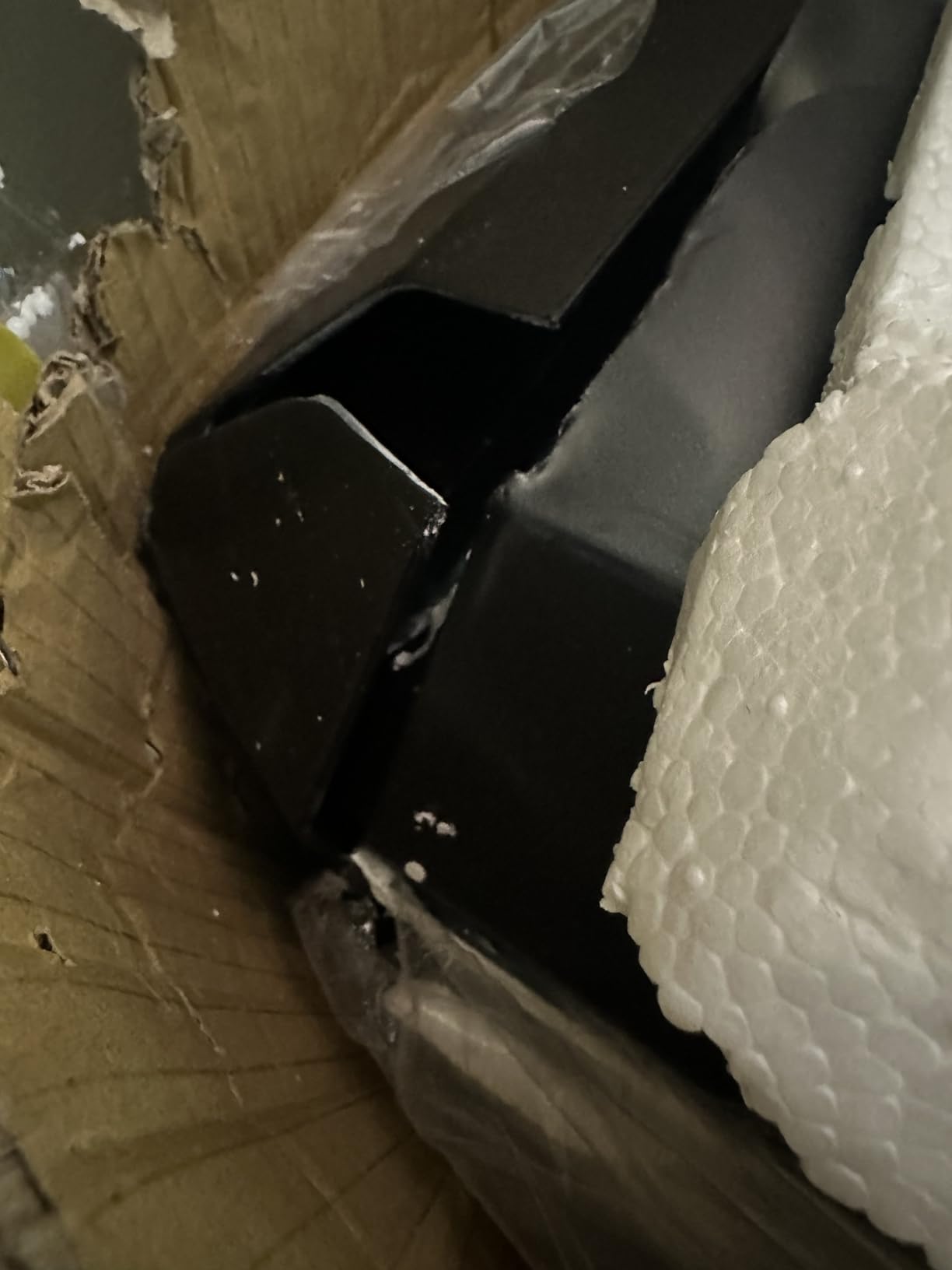

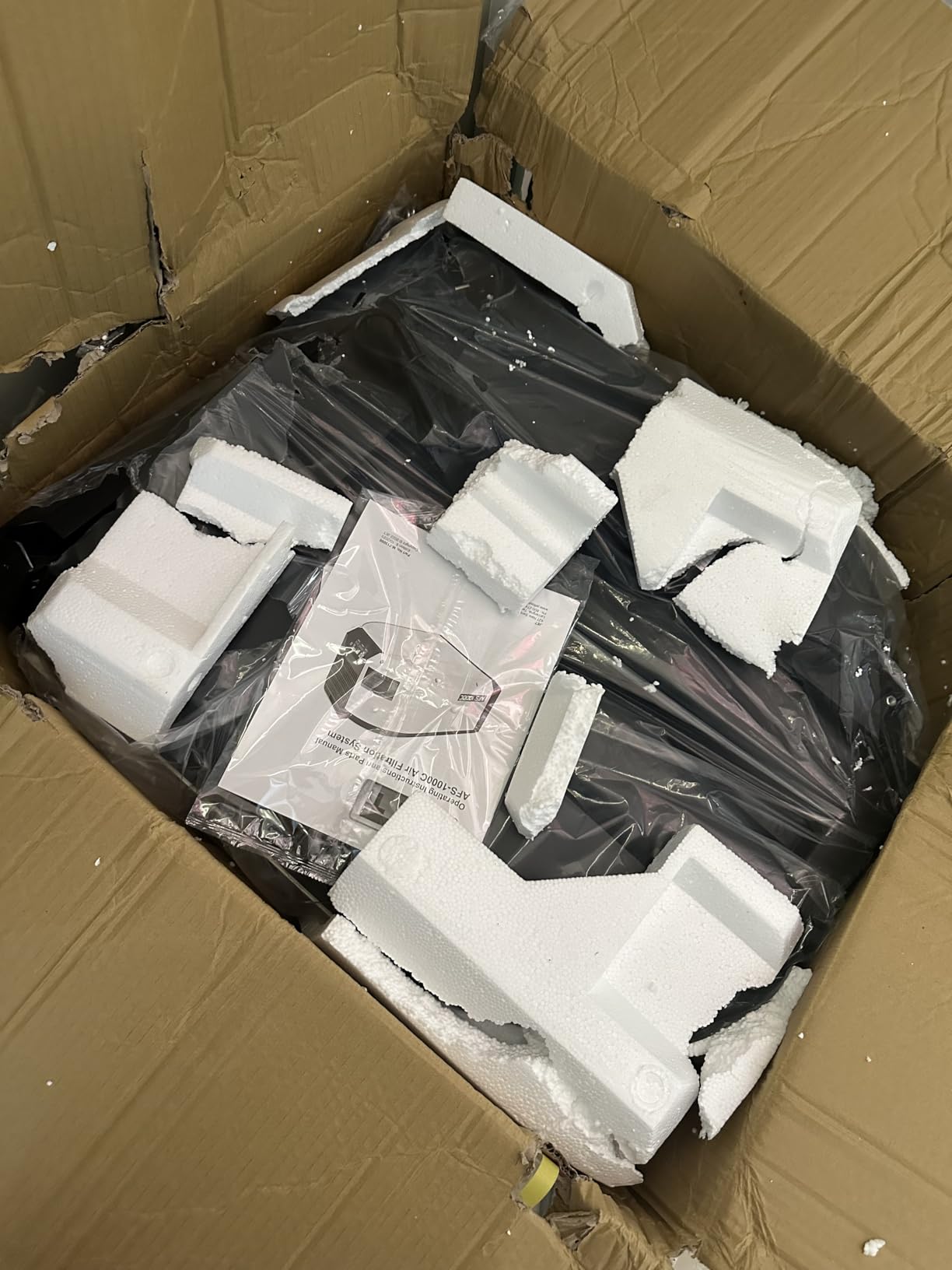

3. JET AFS-1000C 1000 CFM System – Best for Large Shops
JET Air Filtration System, 1-Micron Filter, 1000 CFM, 120V 1Ph (AFS-1000C)
1000 CFM
99 percent at 5 micron, 85 percent at 1 micron
Auto sensor with six speeds
5-year warranty
Pros
- 1000 CFM handles shops up to 1000 sq ft and beyond
- Automatic air quality sensor adjusts across six speeds
- Dual filters rated 99 percent at 5 microns and 85 percent at 1 micron
- RF remote with a 16-hour timer
- Angled LED display readable from below
Cons
- Large 30 inch by 24 inch footprint
- Heaviest hanging unit here at 33 pounds
- 67 dB at the top setting
At 1000 CFM, the JET AFS-1000C is the unit for a professional shop, a school woodshop or a two-level building where one smaller machine cannot keep up. Its automatic air quality sensor adjusts across six speeds on its own, so the airflow tracks the dust load instead of depending on you to turn a dial up every time you start a sanding operation.
The filtration is a two-stage arrangement: an outer filter rated at 99 percent of 5-micron particles and an inner filter at 85 percent of 1-micron particles. Those numbers are more conservative than the HEPA marketing you see elsewhere, and we would rather have the airflow that comes with them than a finer stage the fan cannot push air through.
The BLDC motor is rated at 67 dB at the highest speed, which is quiet for that much airflow. The angled LED display panel is designed to be read from a ceiling mount, and the control panel also carries a filter status indicator, so you get told when media needs attention.
Control comes by RF remote with six speeds and a 16-hour timer, which is the longest timer here and the one that suits a full working day. The box includes four eye bolts, so hanging hardware is in the carton, and the cabinet uses injection-moulded plastic to dampen vibration.
Size is the real trade. At 30.13 by 24.25 by 15.38 inches and 33 pounds, this needs two people and a ladder to hang, and it wants to be centred over open floor rather than tucked against a wall. Check the joists before you plan the position, because the forum threads are full of people who discovered a drywall ceiling is not a mounting surface.
When 1000 CFM is the right call
Run the formula. If your shop is 800 square feet with a 10 foot ceiling, you are looking at roughly 1,067 CFM for eight air changes an hour, so this unit is close to correctly sized and you can run it on a lower setting most of the time. If your shop is 400 square feet, it is oversized and the smaller units will do the same job more quietly.
What the warranty actually covers
The stated warranty is five years, dropping to two years if the unit is used for commercial or industrial purposes, which is worth understanding before you mount it in a paid shop. The 4.2 star average across 73 reviews is a thin base compared to the leader in this list, so treat the feature set as the reason to buy rather than the review history.

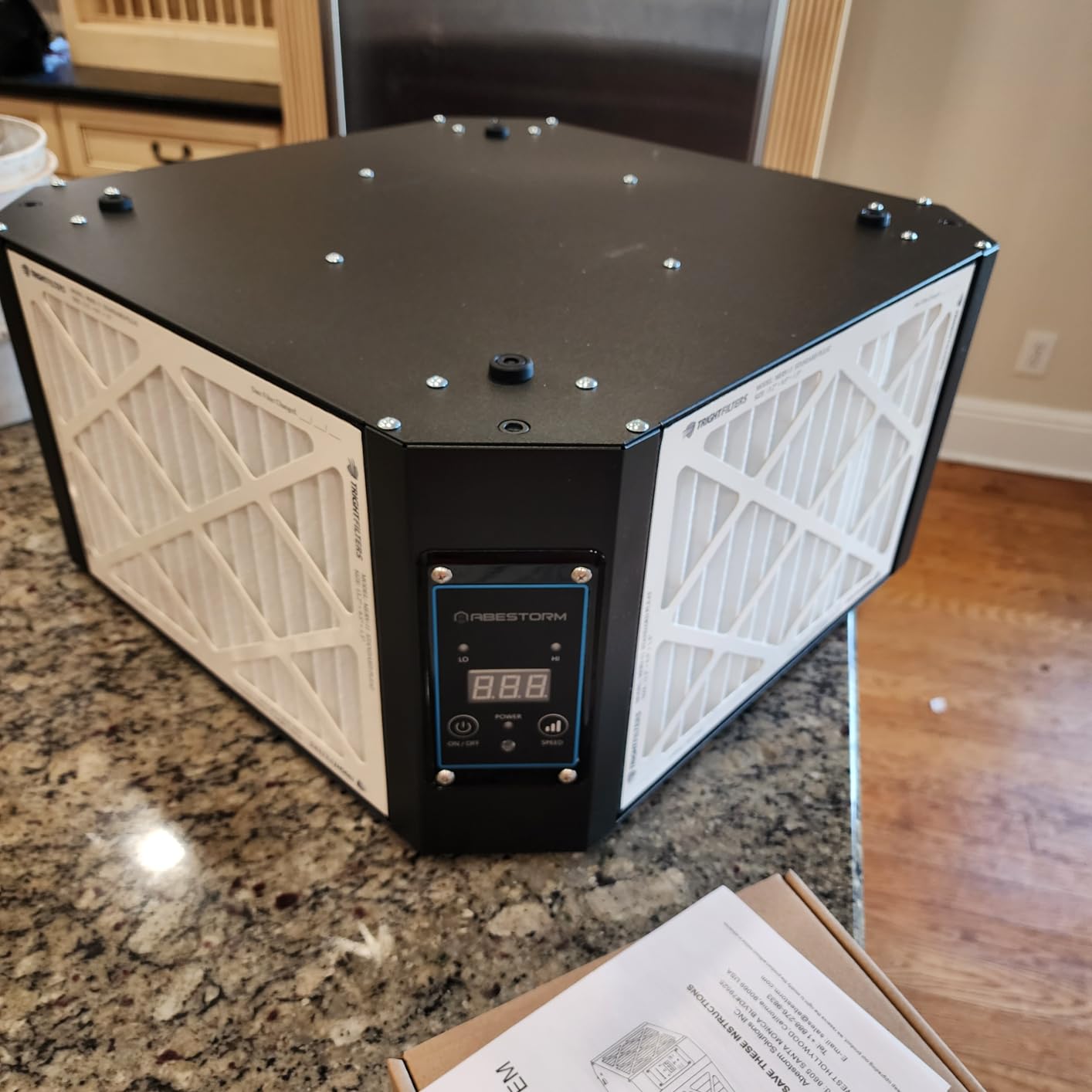

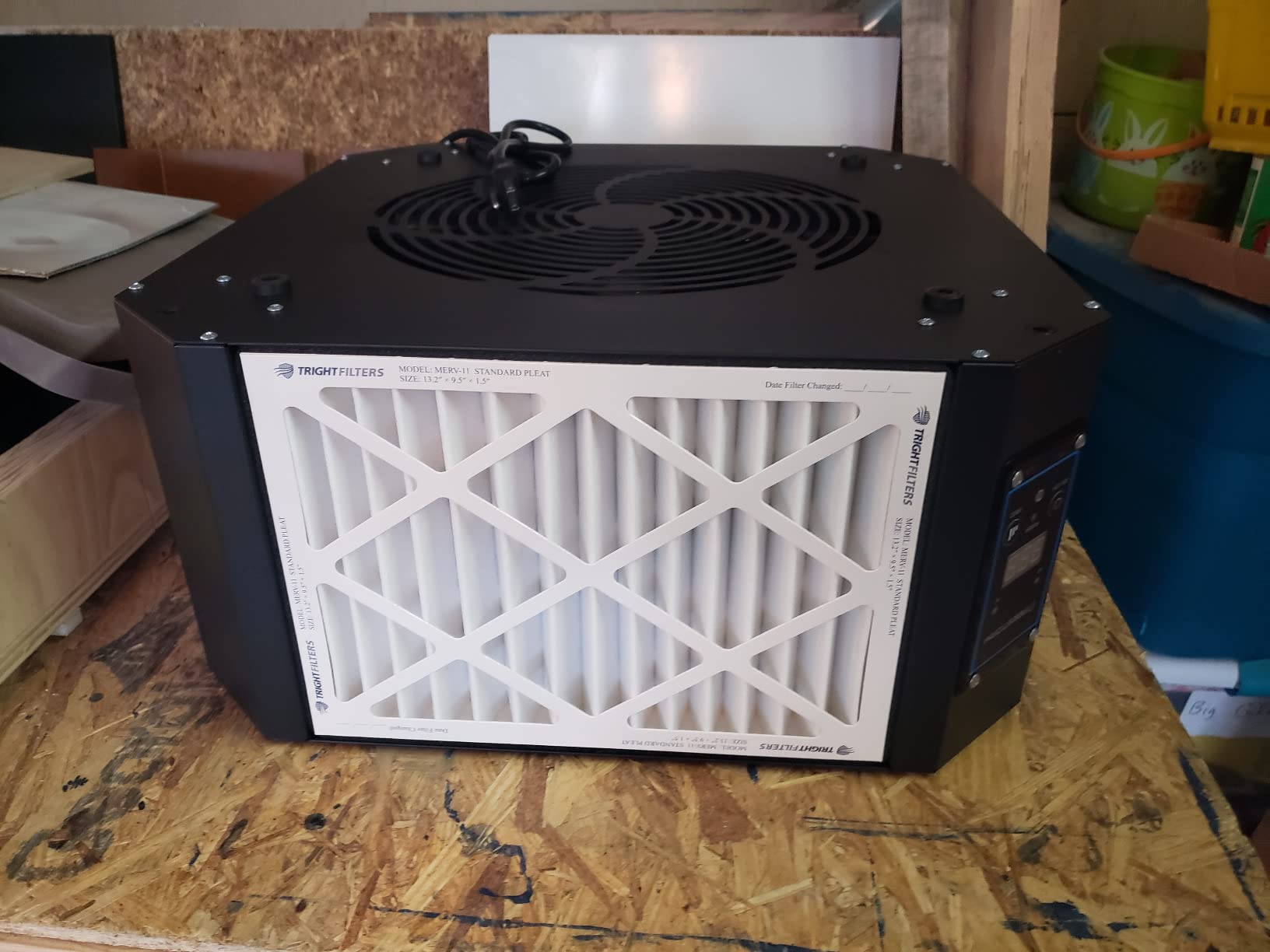

4. Abestorm DecDust 1350 Vortex Filter – Best High-Airflow Design
ABESTORM 360 Degree Intake Air Filtration System Woodworking 1350 CFM Hanging Air Filter with Strong Vortex Fan for Wood Workshop, Garage, Shop Dust Collectors, Up to 1700 sq. ft, DecDust 1350
1350 CFM maximum
360-degree intake
MERV-11 media
Covers up to 1700 sq ft
Pros
- Highest rated airflow in this roundup at 1350 CFM
- 360-degree intake captures from every side
- Manufacturer rates it for shops up to 1700 sq ft
- MERV-11 media rated at 90 percent of 3 to 10 micron particles
- Touch panel plus IR remote at 27 ft
Cons
- 69 dB at the top speed
- One-year warranty only
- IR remote needs a clear line of sight
The vortex design is the interesting part of this one. Rather than pulling air in from a flat grille, it uses a 360-degree intake with a strong vortex fan rated at 1050 or 1350 CFM on two speeds, which is the highest rated airflow of any unit we reviewed. For a large shop running several machines, raw air volume is exactly what you want.
At 1350 CFM the manufacturer rates it for coverage up to 1,700 square feet. That figure is a coverage claim rather than an air-change calculation, so run your own numbers before you trust it for a small room, because this much airflow in a small shop mostly means noise.
Filtration is MERV-11 rated at 90 percent of 3 to 10 micron particles and 85 percent of 1-micron particles, which is the efficiency-versus-airflow trade-off made plainly. It is not HEPA and does not pretend to be. What it does is keep a lot of shop air moving through a filter that is not choking the fan.
Control is a touch panel on the unit plus an IR remote with a 27 foot range. Unlike the RF remotes on the WEN and JET, an IR remote generally needs to point at the panel, so mounting height and where you stand both matter.
It can hang from the ceiling with the included hooks and chains or sit on a bench, and it weighs 27 pounds at 20.5 by 20.5 by 9.8 inches. Noise is rated 60 to 69 dBA, so on high it is the loudest unit here, and owners note the downdraft is strong when it is mounted directly overhead. Place it over open floor a little behind you rather than right at the bench.
The one-year warranty is the real compromise
This is the shortest warranty in the roundup, on the unit with the highest rated airflow, and those two facts sit awkwardly together. A one-year cover is thin for a machine you intend to hang above a table saw, so the air volume has to earn that risk on its own. If long-term cover matters to you, the ALORAIR’s ten-year term is the opposite trade.
When you would rather have two smaller machines
For a two-storey shop, one 400 CFM unit per floor often beats one large unit on one floor, which is the arrangement a vann’s Air Force user describes with a pair of WEN 400 CFM machines. The Abestorm is the right pick when you have one wide-open floor and a genuinely high dust load rather than a second storey to serve.

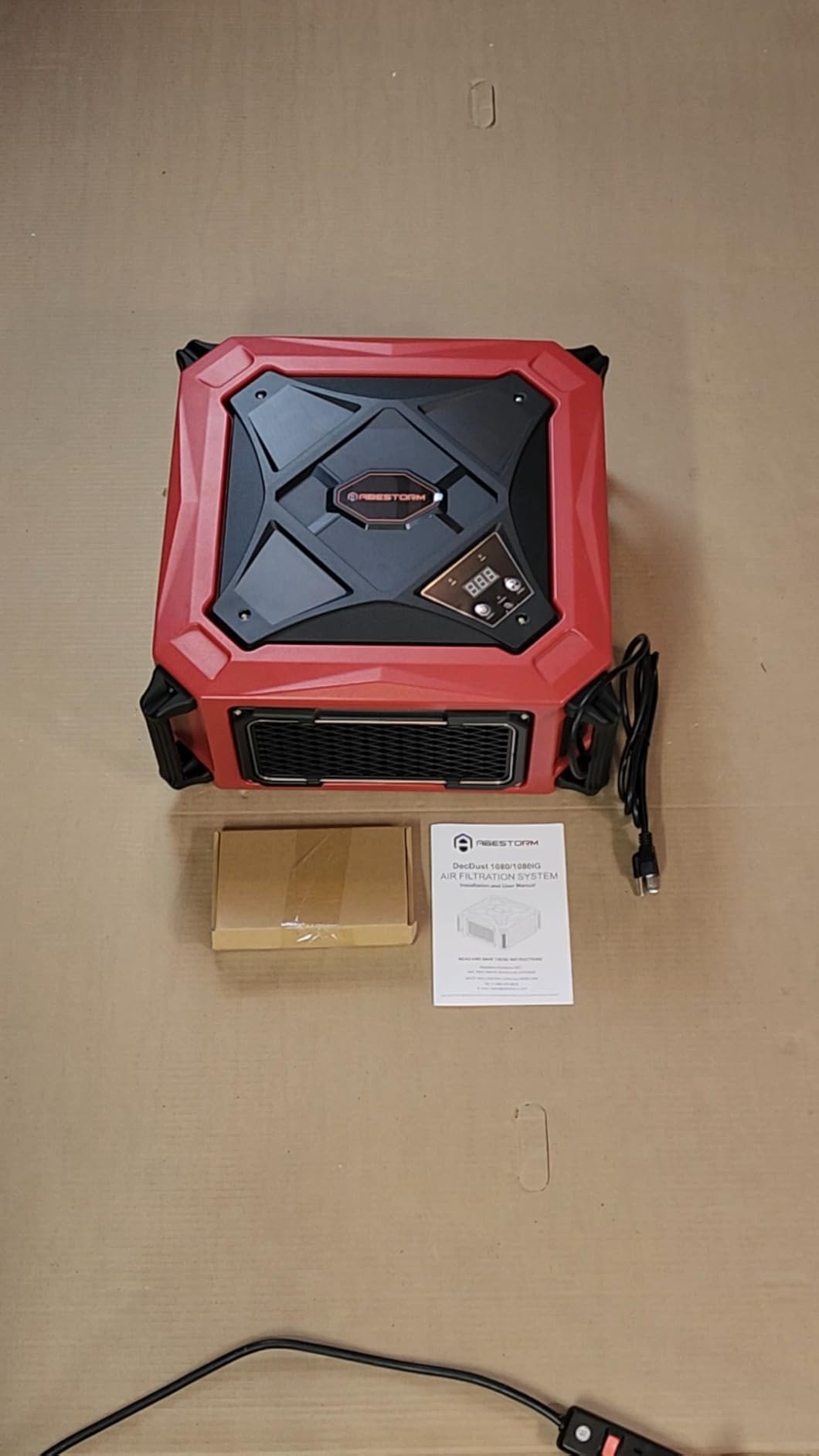

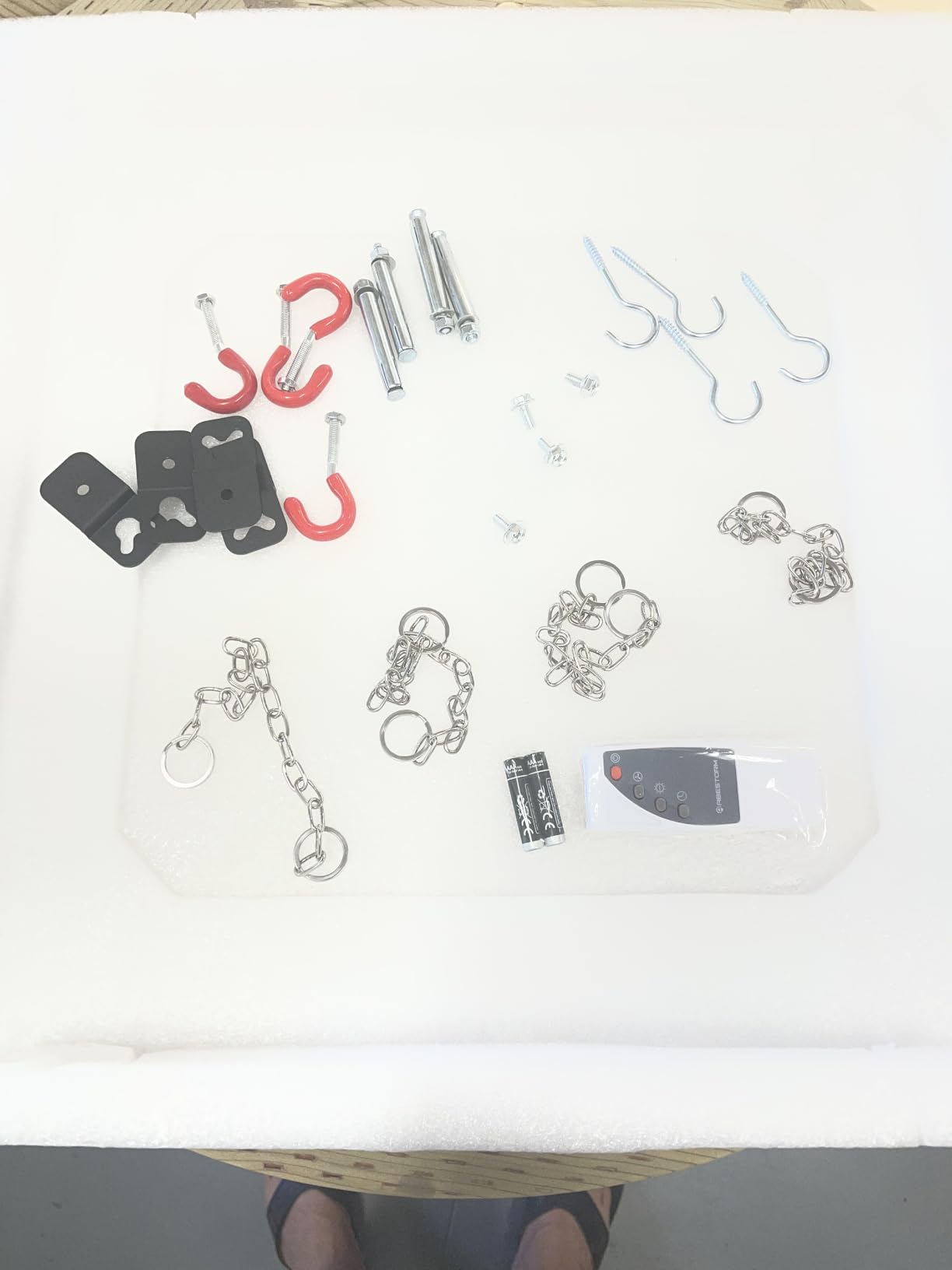

5. Abestorm DecDust 1080 Three-Sided Intake – Best for Quiet Shops
Abestorm 1080 CFM Intake Air Filtration System, 270 Degree Workshop Dust Collector with Remote Control, Ceiling Mounted for Woodworking Shops and Garage, 2-speed Adjustment, DecDust 1080
1080 CFM high, 780 low
270-degree three-sided intake
Three MERV-11 filters
Under 60 dBA
Pros
- Under 60 dBA while still moving 1080 CFM
- 270-degree three-sided intake captures dust from three directions
- Compact 19.4 inch square footprint
- Slide-out filter design speeds up maintenance
- UL certified
Cons
- Two-speed only with no auto mode
- 151 watt draw is high for the class
- Remote needs a clear line of sight
This is the quietest high-airflow option in the roundup, and that is a real distinction rather than marketing. The rated operation is under 60 dBA while still delivering 1080 CFM on high and 780 CFM on low, which is a combination none of the other hanging units here manage.
Instead of a full 360-degree swirl, it uses a 270-degree three-sided intake, which is enough to pull from three directions without the noise penalty of the full vortex. The manufacturer rates coverage up to 1,100 square feet.
Three MERV-11 filters trap 90 percent of 3 to 10 micron particles, arranged so the slide-out design lets you pull them from the side without taking the whole unit apart. That is the detail that pays off every few months, because filter changes are the task most people end up dreading and skipping.
Control is a touch panel plus a remote with a 26 foot range. The cabinet is compact at 19.4 by 19.4 by 9.6 inches, so it is far easier to site in a shop with awkward ceiling height than a 30 inch unit, and it is UL certified for electrical safety.
Two things hold it back. There are only two speeds and no auto mode, so airflow management is manual. And at 151 watts it draws more power than the far larger JET unit, which is worth checking against your circuit before you install it.
Is 60 dB actually quiet in a working shop?
For context, a shop vacuum runs around 70 dB and a table saw sits higher than that when cutting. Under 60 dBA, this unit sits below both, so you can work beside it and still hear a radio or a conversation across the room. That is why it earns the quiet-shop pick rather than the overall one.
What the lower rating reflects
The 4.1 star average is the lowest in this roundup, and its 82 reviews are a thinner base than the leader. Reviewers point most often to the manual two-speed control and to the higher power draw as the recurring gripes. If you want a similar footprint with automatic control, the DEWALT unit adds an auto mode at a similar class of noise.

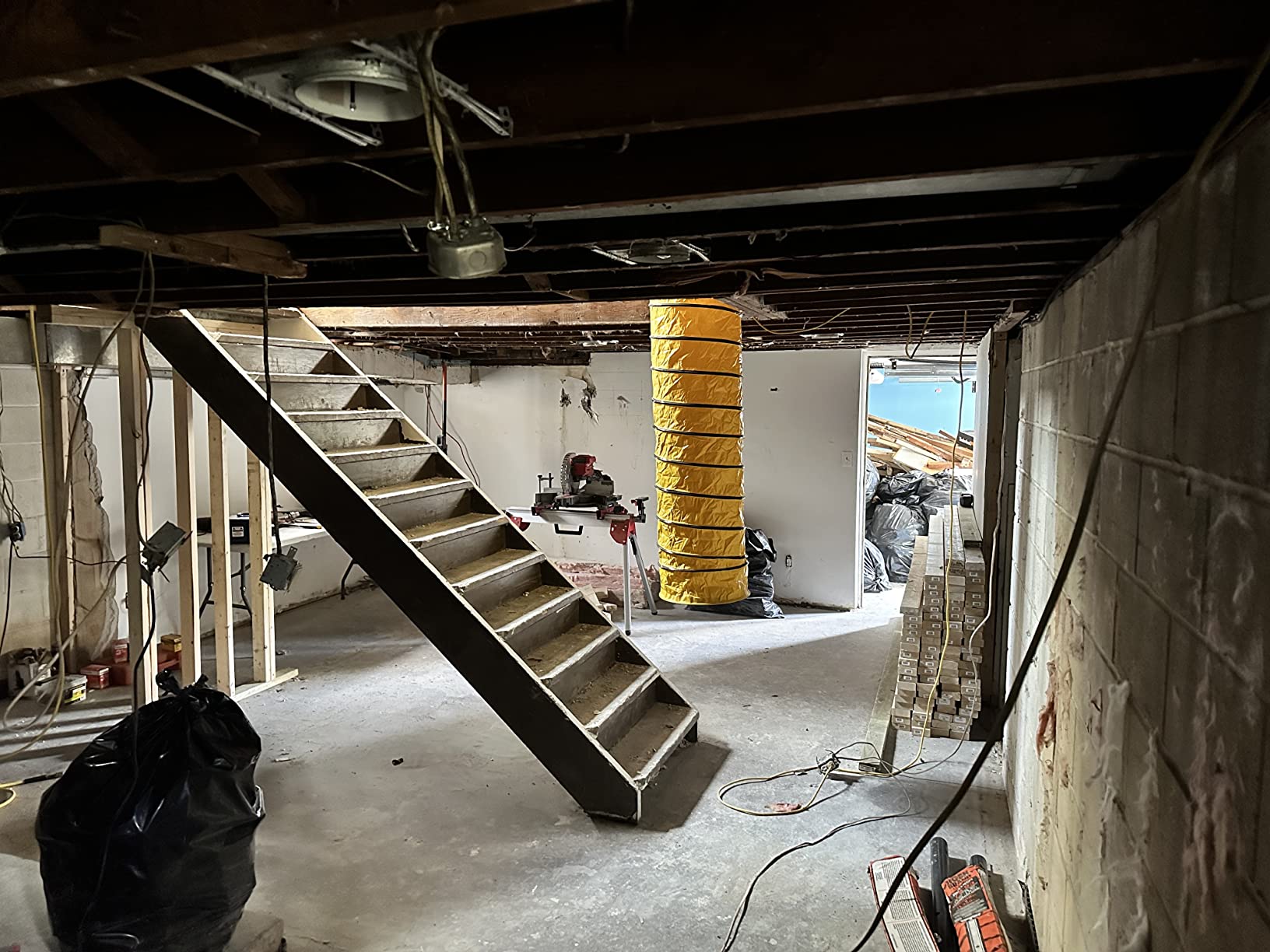

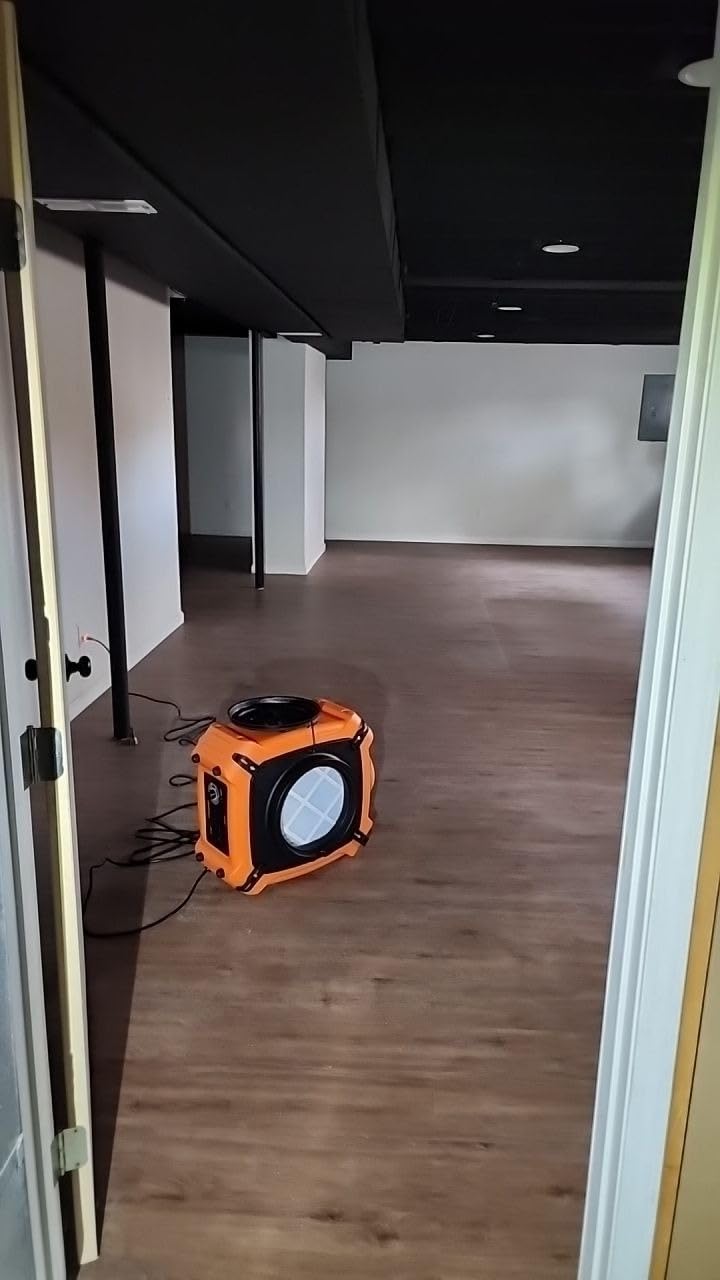

6. ALORAIR HEPA 550 Air Scrubber – Best Warranty Coverage
ALORAIR Air Scrubber HEPA with 3 Stage Filtration, 10-Year Limited Warranty
H13 HEPA 99.97 percent at 0.3 microns
270 to 550 CFM adjustable
Three-stage with carbon
10-year warranty
Pros
- 10-year limited warranty
- the longest here
- Genuine H13 HEPA at 99.97 percent of 0.3 micron particles
- Carbon middle stage handles spray finish and adhesive odour
- Stackable up to three for 1650 CFM combined
- ETL certified with GFCI outlets for daisy-chaining
Cons
- 550 CFM ceiling is low next to the hanging units
- Floor-standing and 39.7 pounds to move
- Roughly 25 by 22 by 15 inches
The ALORAIR is a floor-standing air scrubber rather than a hanging unit, and that changes what it is good at. It does not hang over a machine and clear ambient dust in a large room the way the 1000 CFM units do. What it does is take the air as it passes and strip out the finest fraction with genuine H13 HEPA rated at 99.97 percent of 0.3 micron particles.
Three stages do the work: a MERV-10 pre-filter that protects the expensive media, a carbon filter that takes spray finish, adhesive and solvent odour, and the HEPA stage at the end. That carbon stage is why this is the unit we would put in a shop doing finishing work rather than pure sanding.
Airflow is adjustable from 270 to 550 CFM across a stated filtration area of 5,500 cubic feet. The control panel gives you airflow adjustment, a reset circuit breaker and a filter indicator light, plus auxiliary GFCI outlets so you can daisy-chain.
Stacking is the underrated feature here. It can be stacked horizontally and vertically up to three units for 1,650 CFM combined, so you can buy one now and scale the shop later without replacing what you have. The rotomoulded polyethylene shell is built for job-site abuse rather than showroom looks, and the carry handle makes it portable despite the 39.7 pound weight.
The 10-year limited warranty is the single best warranty in this roundup, and it is the reason to choose this over a cheaper scrubber. It is ETL certified, it is duct compatible through a 16 inch inlet with an optional 8 inch outlet, and duct adapters are not included, so factor that in if you plan to duct it.
Do you need a scrubber or a hanging unit?
Use a scrubber when the air is dirty before it reaches the filter, which happens near a sanding area, near a finishing booth or in a room with no windows. Use a hanging unit for general ambient dust in a larger shop. Running a scrubber continuously on dusty air means replacing the HEPA stage sooner than the warranty period suggests.
Where the money really goes
The HEPA and carbon stages are consumables, and on a scrubber running long hours they are the dominant running cost, not the purchase price. That makes the filter indicator light important: replacing media on a schedule rather than on appearance is what keeps a 10-year warranty worth having.

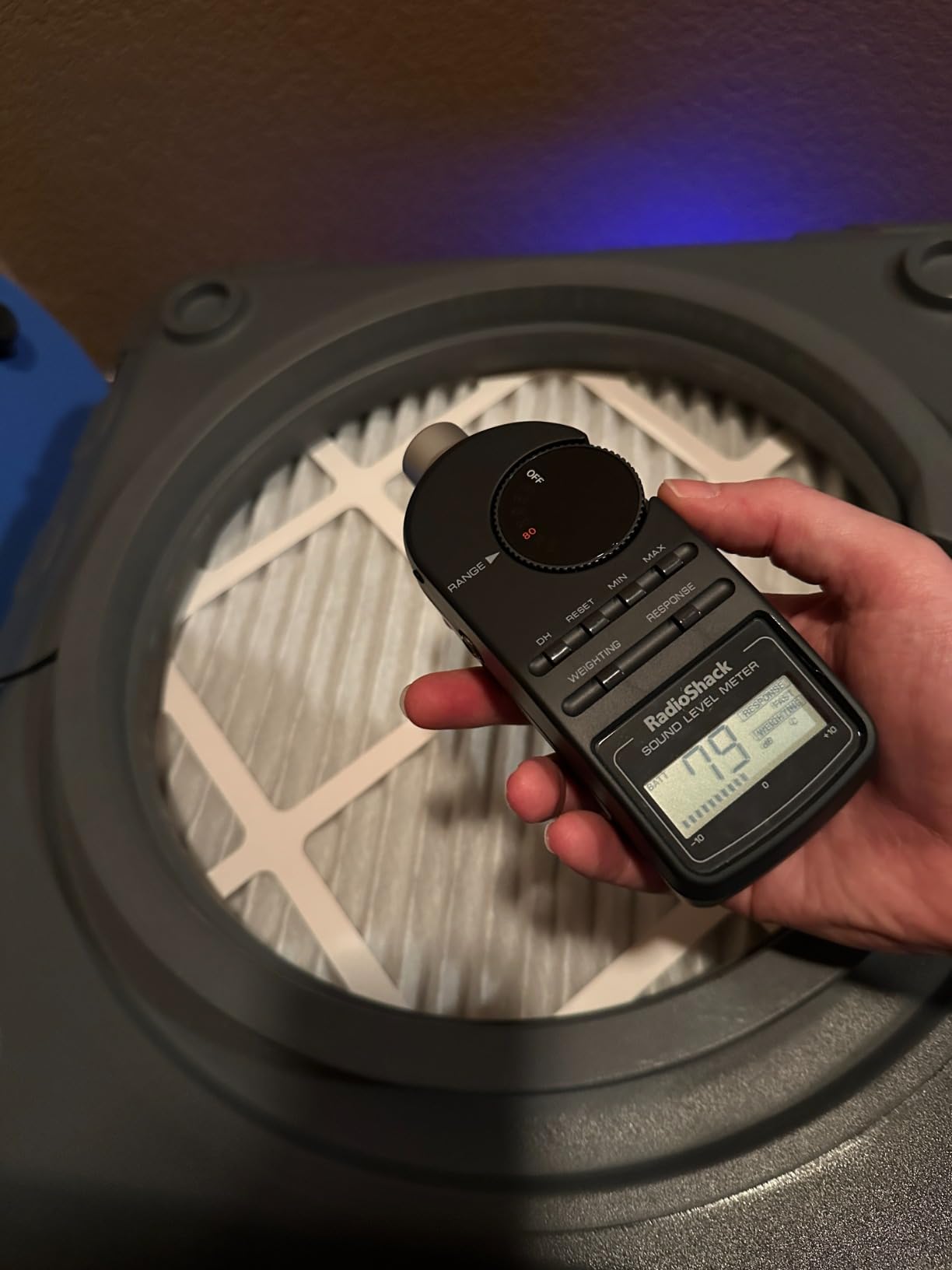

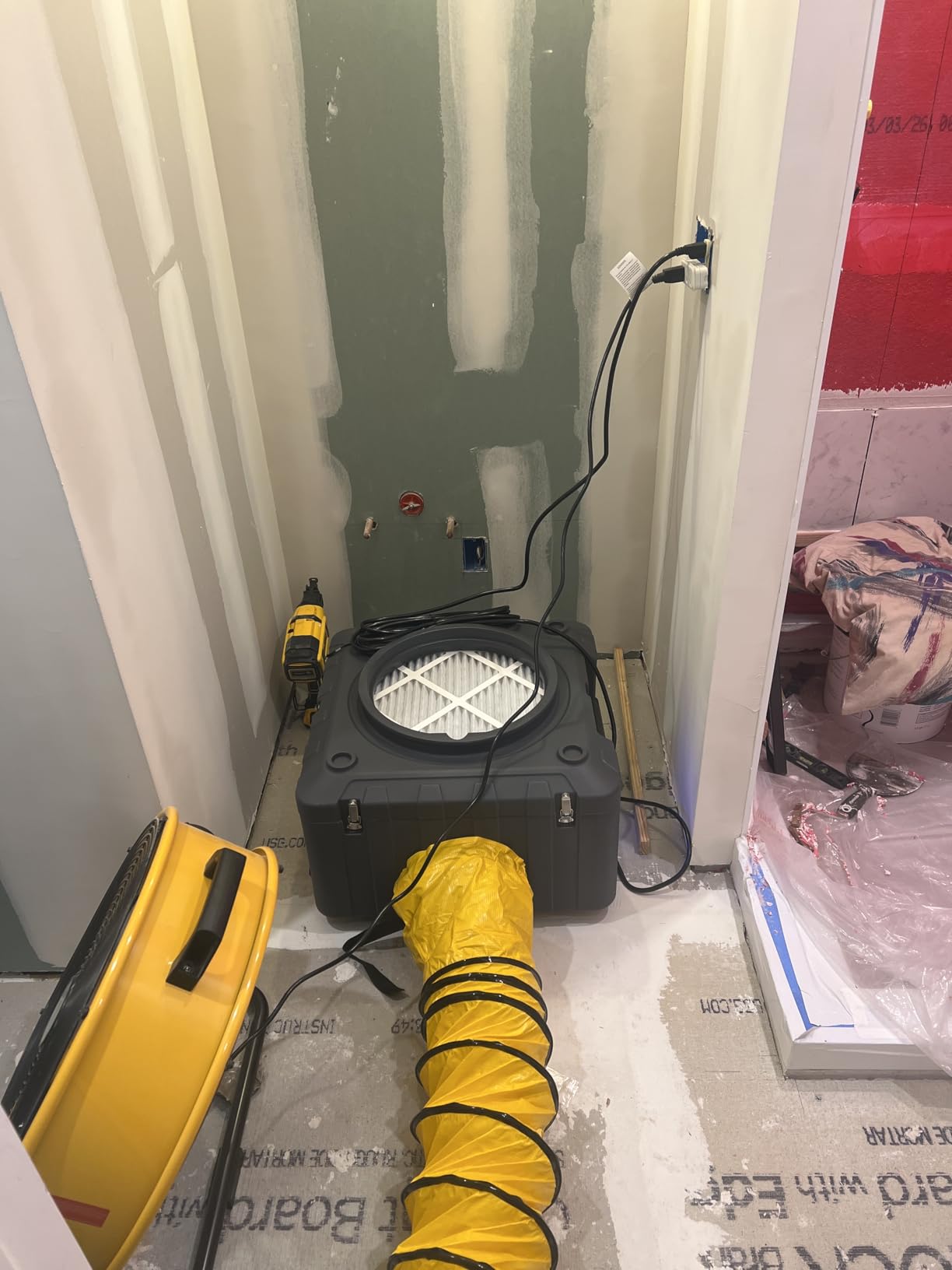

7. VEVOR 550 CFM Air Scrubber – Best Value HEPA
VEVOR Air Scrubber 550 CFM 3-Stage Filtration Stackable Negative Machine
H13 HEPA 99.97 percent at 0.3 microns
550 CFM adjustable
15.5 inch inlet
Filter indicator light
Pros
- H13 HEPA and a carbon stage at a fraction of name-brand scrubber pricing
- 550 CFM adjustable airflow on a 5500 cubic foot area
- 15.5 inch inlet gives pre-filters a longer life
- Stackable and daisy-chainable up to three
- Plug-and-play with no assembly
Cons
- Variable speed controller reported as cheap feeling
- No true off on the speed knob
- Airflow drops noticeably when ducted
The VEVOR does the same job as the ALORAIR, with the same H13 HEPA stage at 99.97 percent of 0.3 micron particles and the same 5,500 cubic foot filtration area, for a lot less money. If you are after filtration grade per pound of spend, this is the one to buy.
It is a three-stage design with a MERV-10 pre-filter, a carbon filter and the H13 HEPA stage, and airflow is adjustable up to 550 CFM through a 15.5 inch intake and 8.5 inch outlet. The large inlet is a quiet but genuinely useful detail, because a bigger inlet face slows the pre-filter and stretches its life.
Like the ALORAIR, it stacks and daisy-chains, with two auxiliary sockets for running up to three for 1,650 CFM combined. At 35 pounds with a foldable handle it is easier to move around a shop than most machines in this class, and it needs no assembly.
The control panel covers adjustable airflow, a resettable timer, a circuit breaker and a filter change indicator light. That combination means you can set it and leave it, which is what you want from a machine you are not standing next to.
The complaints are consistent enough to plan around. The variable speed controller gets described as cheap feeling, and there is no true off on the speed knob, so the unit stays powered even at the lowest setting. Some owners also report a noticeable performance drop once ducting is fitted, so treat the free-air CFM figure as an open-air figure.
Quality control versus price
There are reports of units arriving with cosmetic damage, scratches and compressed seals. That is the trade you accept for the price, and the practical response is to inspect the box on arrival and check the seal around the filter housing before you run it for the first time.
How it compares to the ALORAIR
Same filter class, same airflow class, similar stacking. The ALORAIR wins on warranty length and on the feel of the enclosure, and the VEVOR wins on every other measure. If your shop has a respiratory condition in the household, buying the longer-warrantied machine is the more conservative choice, and otherwise the VEVOR leaves more room in the budget for filters.

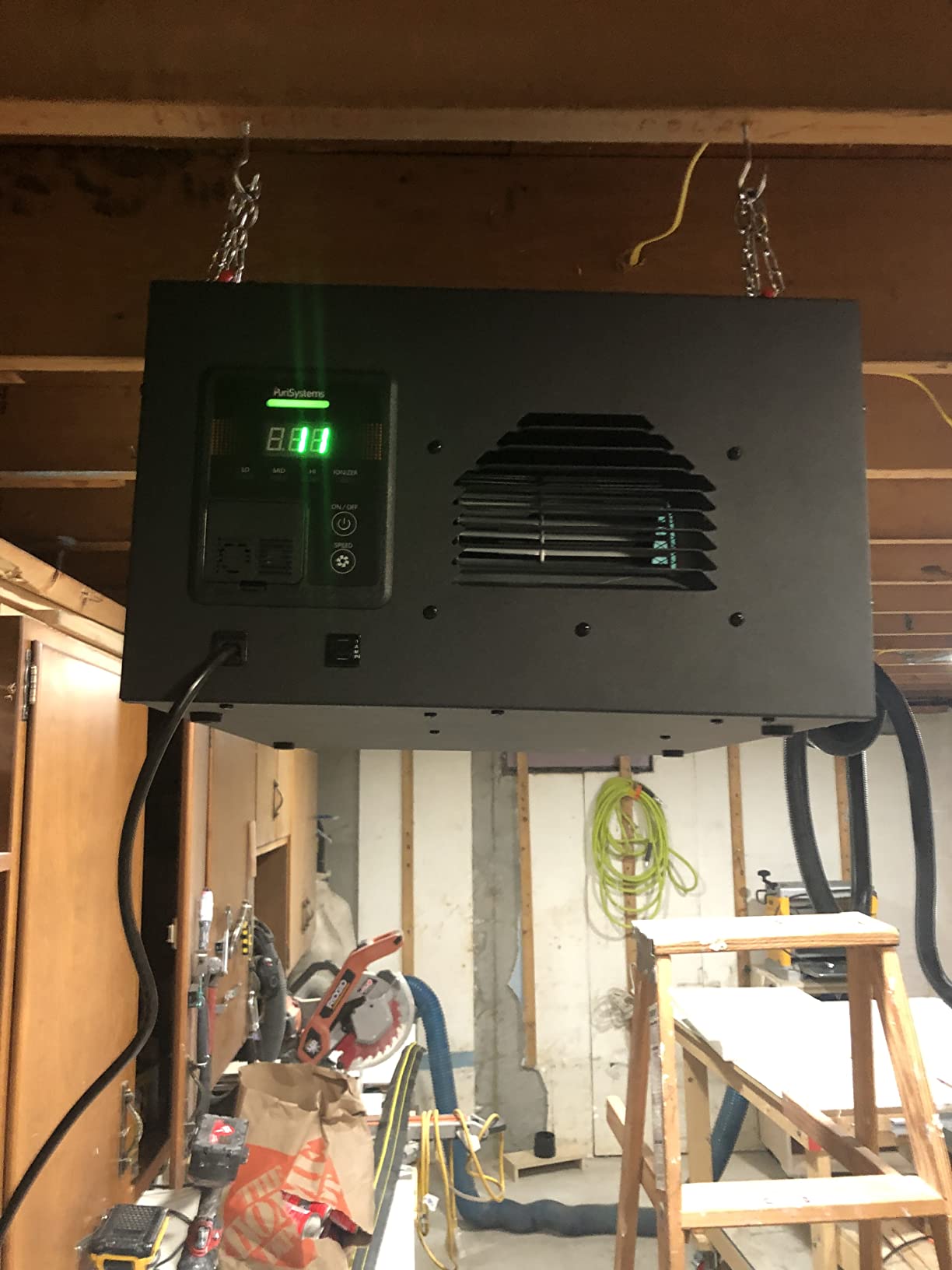

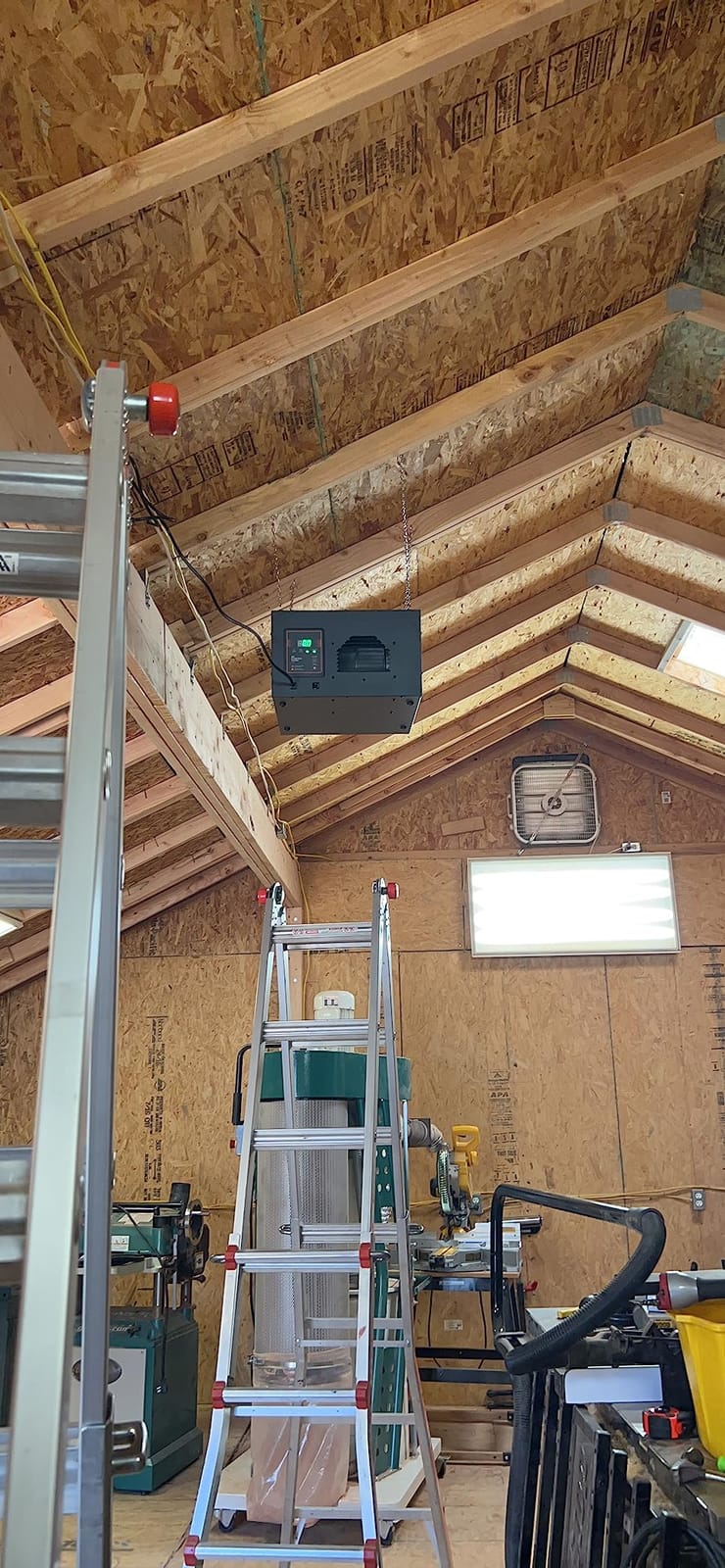

8. Purisystems PuriCare 500IG Hanging Filter – Best for Small Shops
PURISYSTEMS Air Filtration System 3-Speed Remote, Built-in Ionizer, PuriCare 500IG Hanging Air Filter w/RF Remote for Woodworking, Garage and Shop Dust Collector, up to 500 sq. ft (350/450/500 CFM)
500 CFM on three speeds
Built-in ionizer
RF remote at 26 ft
Covers up to 500 sq ft
Pros
- RF remote works from any angle up to 26 ft
- Built-in ionizer generating 15 million negative ions per second
- Three speeds at 350 450 and 500 CFM
- Timer from 1 to 6 hours with auto shutoff
- Dual filter set and both stages are easy to replace
Cons
- 500 CFM maximum suits smaller shops only
- Ionizer claims vary widely between brands
- Only 54 reviews to judge it on
The PuriCare 500IG fills the gap between a one-car shop and a professional shop. At 500 CFM it covers up to 500 square feet by the manufacturer’s rating, and three speeds at 350, 450 and 500 CFM let you trade airflow for noise through the day.
Its distinguishing feature is the built-in ionizer, rated at 15 million negative ions per second and 10 million positive ions per second. Ionizers are the least discussed part of this category, and manufacturers vary widely in what they claim, so we would treat this as a secondary benefit rather than the reason to buy.
Where it is genuinely well-featured is in the controls. The RF remote works from any angle up to 26 feet without needing line of sight, which is the same advantage the WEN offers, and the timer runs from 1 to 6 hours with automatic shutoff.
It is also the most flexible unit here physically. It has easy-grip handles and rubber feet for benchtop placement, and it is ceiling mountable with the included hardware, so you can start it on a bench and hang it later without buying anything else. At 25.5 pounds and 20.1 by 17 by 11 inches it is a one-person install.
Filtration is a three-stage arrangement with an outer filter that takes larger particles and an inner filter that traps the smaller fraction, both easily replaceable, with a stated 1-micron particle retention size. The main limit is the 500 CFM ceiling: in a sanding-heavy shop above 500 square feet you will be chasing the dust rather than clearing it.
Small shop or medium shop?
Run the numbers. A 400 square foot shop with an 8 foot ceiling needs about 427 CFM for eight air changes an hour, so this unit is correctly matched. A 600 square foot shop with a 10 foot ceiling needs about 800 CFM, and this is the wrong tool, so step up to a 1000 CFM hanging unit instead.
Where it sits against the WEN 3410
The two overlap heavily, and the deciding factors are size and noise rather than filtration class. The WEN offers the deepest review history and a quieter top setting, while this unit moves 100 CFM more, adds the ionizer, and can start on a bench before you hang it. For a shop under 500 square feet that is a real difference; above that, both are outgrown.

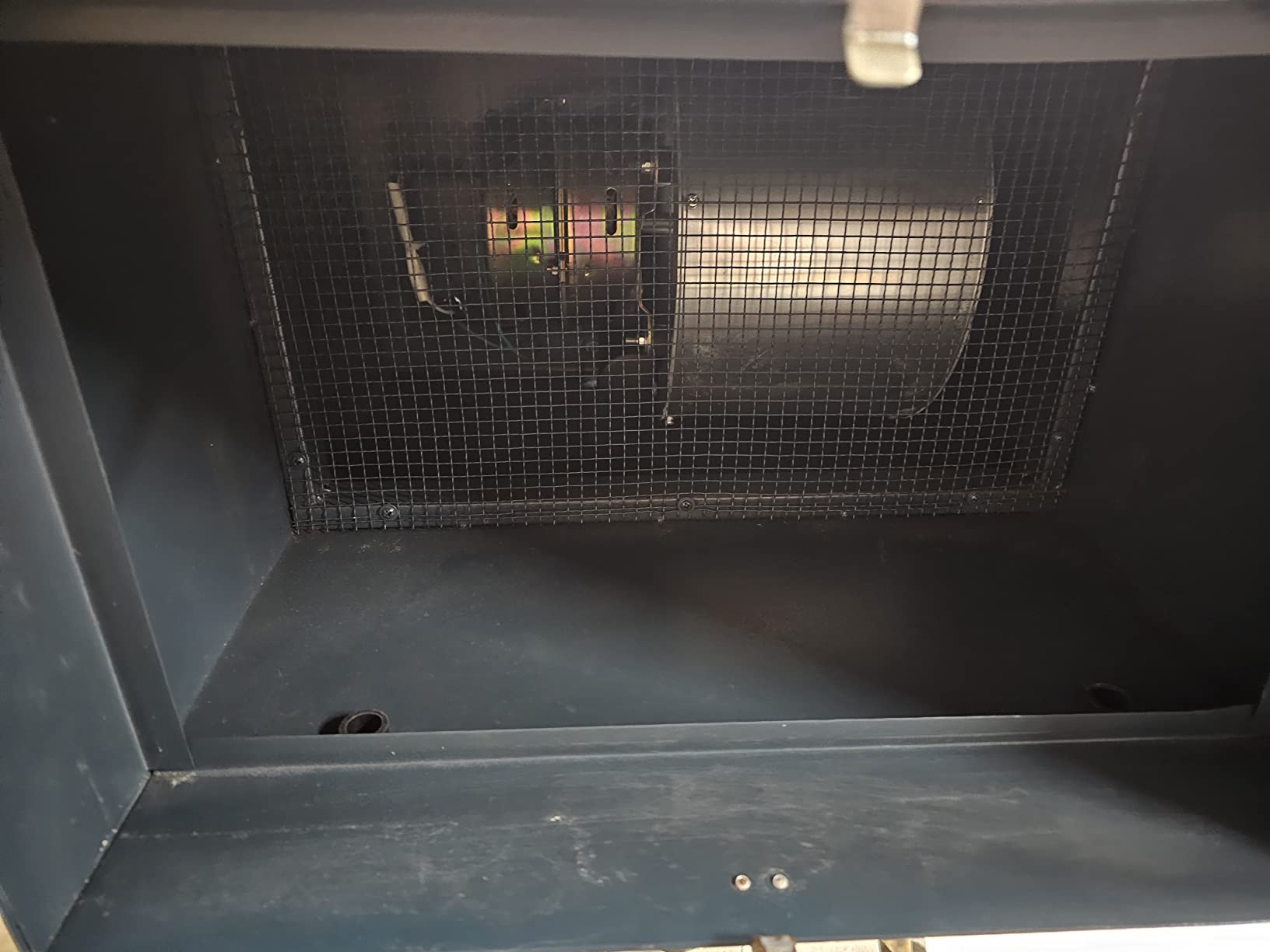

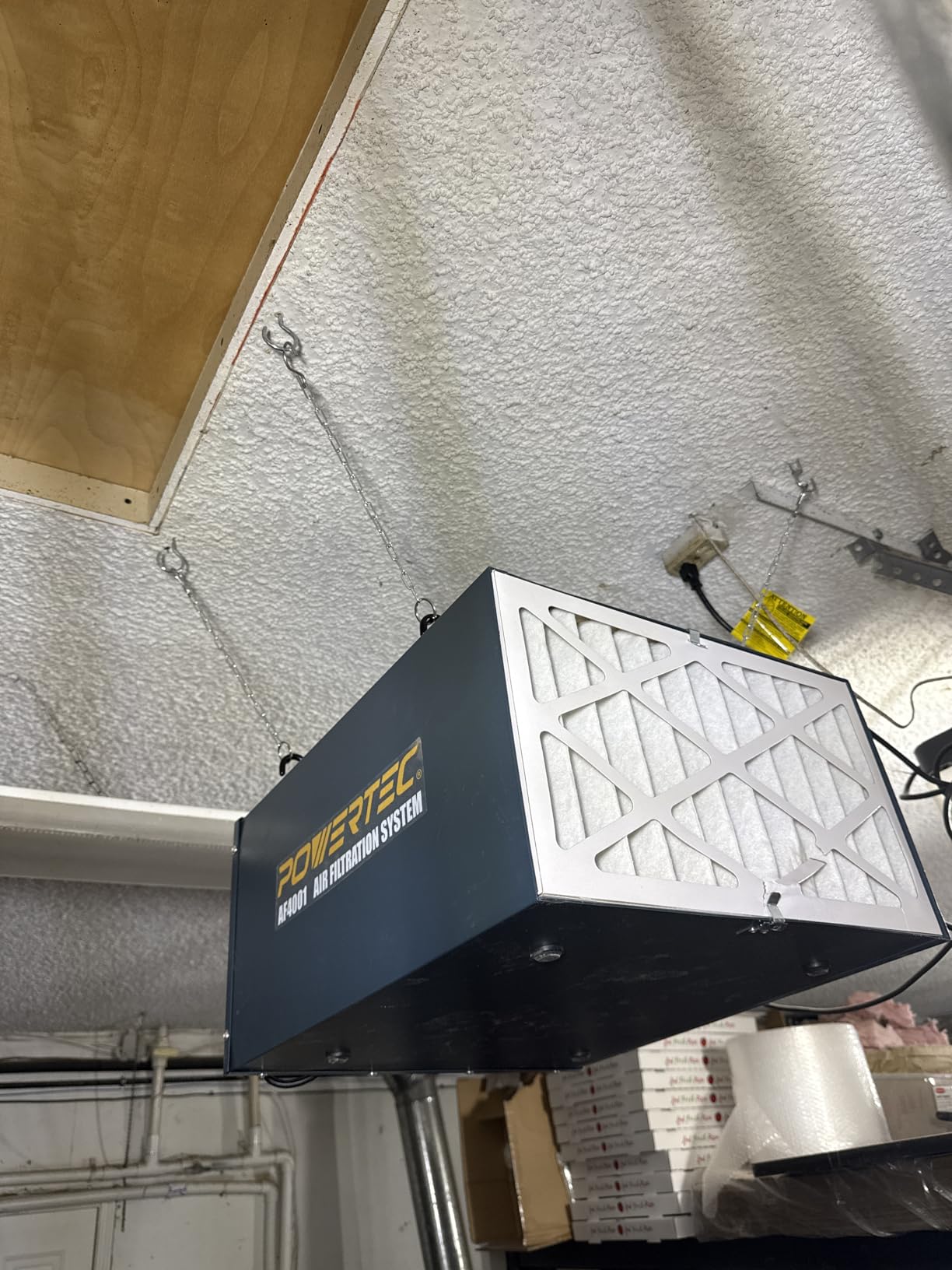

9. POWERTEC AF4001C Filter Bundle – Best Starter Bundle
POWERTEC 3-Speed Remote Controlled Air Filtration System (300/350/400 CFM) w/Extra Inner & Outer Filter (2 of Each) Replacement, Hanging Air Filter for Woodworking, Workshop & Garage (AF4001C)
400 CFM on three speeds
MERV-10 outer plus MERV-11 inner
Bundle with four spare filters
Pros
- Bundle includes two extra outer and two extra inner filters
- Filters cross-compatible with the WEN 3410 and Shop Fox W1830 frames
- RF remote with 1 2 and 4 hour timer
- Ceiling hooks included so no tools are needed
- MERV-10 outer with MERV-11 inner rated at 99 percent of particulates
Cons
- 400 CFM suits a small shop only
- Only 36 reviews on this bundle listing
- Listed weight of 68 pounds is heavier than expected
The AF4001C is the same 300, 350 and 400 CFM ceiling-hung format as the budget leaders, but the bundle is what makes it interesting. It ships with the system, the remote, the mounting hardware and four replacement filters: two MERV-10 outer filters and two MERV-11 inner filters.
That matters because filter cost is the most common complaint in this category, and having a spare set in the garage removes the excuse for running a loaded filter and losing airflow. For a first-time buyer who has never owned one of these, that is a genuinely useful package rather than a gimmick.
Filtration is a coarse MERV-10 outer filter that removes larger dust and a MERV-11 inner filter that catches the rest, rated at 99 percent of airborne particulates. Both stages are MERV-labelled, which makes this the most clearly specified media in the budget group.
Compatibility is the underrated feature. The outer and inner filters fit the WEN 3410, the POWERTEC AF4000 and AF4001, and the Shop Fox W1830, with an inner frame measuring 16 and 5/8 by 9 and 1/2 inches. If you already own one of those units, or you are choosing between them, your filter cost drops to the lowest in the group.
Control is an RF remote handling power and speed, with a built-in timer at 1, 2 and 4 hours. Installation is hooks only, no tools, which matters if the unit is going above a table saw or a planer where you do not want to be drilling. The listed weight of 68 pounds looks like it includes the spare filters, so budget for a two-person lift.
When this beats the plain alternatives
If you are starting from nothing and expect to keep the unit for a few years, the spare filters pay for themselves in convenience. If you already own a WEN 3410 or a Shop Fox W1830, this bundle is the cheapest way to keep both running, and the cross-compatible frames mean one filter purchase covers several machines.
What to watch out for
The 36 reviews are a thin base, and the listing bundles a system with consumables, so the review count is not a clean read on the machine itself. The 400 CFM ceiling is the same limit as the other units in this bracket, and there is no auto mode, so this is a manual-speed unit that relies on you to turn it up when sanding starts.
How to Choose a Shop Air Filtration System in 2026?
The forums have already settled most of this argument, and the short version is: buy airflow, buy filters you can get again, and keep the dust collector honest. The rest is detail that saves you money.
CFM Is the First Number, Not the Last
Start with the formula in the sizing section above and write your number down before you look at any listing. Then buy at or slightly above that number, not below, because rated CFM assumes a clean filter and a real installation. A unit rated 15 percent above your requirement gives you headroom for a loaded filter and for the fact that the far corner of a shop always sees less air than the middle.
Do not chase efficiency at the expense of volume. The most-upvoted framing we found in the forum discussions is that with several passes per hour, the gap between very high and merely good capture efficiency is small compared to the gap between a unit that delivers its rated airflow and one that does not. Volume is the lever; efficiency is the trim.
Filtration Grade: MERV, HEPA or 1 Micron?
For most wood shops, MERV 11 is the sweet spot. It captures the fine fraction that a dust collector misses while leaving the fan enough free air to hit its rated CFM. Where you should go finer is a specific one: anyone in the shop with asthma, COPD or a genuine respiratory diagnosis, or a shop doing spray finishing where the carbon stage matters more than the micron rating.
A 1-micron inner filter, as used by the WEN 3410, the Purisystems and the POWERTEC, sits in the same practical band as good MERV media. A true HEPA stage, as on the DEWALT, the ALORAIR and the VEVOR, adds meaningful fine-particle capture and costs you airflow, which is why the two HEPA scrubbers in this roundup top out at 550 CFM rather than 1,000.
Static Pressure: Why a MERV 13 Filter Can Make a Unit Worse
Every filter is a restriction, and the fan works against that restriction. Push the media too fine and you get lower real airflow, a hotter motor, and often a shortened filter life because coarse dust clogs the fine media instead of being caught upstream. That is why a washable pre-filter or a coarse outer stage is not optional on any of these units.
This is the single most useful thing to know when swapping filters. A shop owner who upgrades a factory filter to a much denser media and then concludes the unit was a bad purchase has diagnosed it backwards. Keep the upstream stage doing the coarse work, and change it more often than the fine stage.
Noise Level and Where You Work Next to the Unit
Use dB as a guide, not a promise. Under 60 dBA sits below a shop vacuum and below most table saws, so a unit at that level disappears into the background. 64 to 69 dBA gets audible once the saw stops, which matters only if your work is quiet, or if you run the radio while you work.
Placement solves more noise complaints than model choice. A unit directly over your head sends its downdraft straight onto you, which reads as much louder than the decibel number suggests. Offsetting it so the discharge lands on open floor behind your working position is a free improvement.
Ceiling Mounting, Joist Load and Safe Installation
Every hanging unit here weighs between 20 and 33 pounds, and a drywall ceiling is not a structural surface. Find the joists, use eye bolts or the supplied hardware rated above the unit’s weight, and attach to structure rather than to the sheetrock. A unit that lands on a table saw mid-cut is the outcome nobody wants to test.
Mount six to eight feet above the floor or above the machine generating the dust, and check the airflow direction so the discharge is not aimed at a workbench. Eye protection and a stable ladder are not optional on install day, and anything over about 30 pounds is a two-person job.
Filter Cost of Ownership Over Three Years
Filter cost is the hidden cost nobody publishes, so do the arithmetic yourself. Estimate a replacement interval from your dust load rather than from the calendar, multiply by the price of the stage that actually needs changing, and compare that against the purchase price over three years. On a heavily used unit the consumables can outweigh the machine.
Cross-compatible frames are the best lever here. The POWERTEC filters fit the WEN 3410 and the Shop Fox W1830, so buying filters off a shared size breaks the lock-in that users complain about most. Units with a washable pre-filter, like the DEWALT, cut the most frequently replaced stage to near zero.
One Big Unit or Two Smaller Ones?
For a two-storey shop, one unit per floor beats one central unit, because air does not move efficiently between floors through a stairwell. That is exactly the setup described by a user running two 400 CFM machines in a 24 by 36 shop, and it is the reason a mid-size unit is often the smarter buy for a split space.
For a single wide-open floor with a high dust load, one large unit is simpler and quieter per unit of moved air. Either way, run the numbers for the room you are actually filtering, not for the building’s total square footage.
Pair It With an Air Quality Monitor
A monitor is the cheapest way to know whether the unit is doing anything. A PM2.5 reading gives you a direct measure of fine particulate in the shop, and a CO2 reading tells you about ventilation and how much stale air is building up between door openings. Both answer questions filtration alone cannot.
Use the monitor as a feedback loop rather than a gadget. Run a sanding operation, watch the reading climb, switch the unit to high, and watch it fall. That tells you your CFM is adequate or it is not, without anyone having to argue about filter brands. If you want to read more about the underlying equipment choices, our guide to shop air compressors covers the other fixed system in a workshop.
Air Filtration Is Not Dust Collection
This is the most common confusion we found in the forums, and it is worth resolving plainly. Dust collection captures dust at the machine, at the source, through a hose and a cyclone. Air filtration circulates the whole room through replaceable filters to clean the dust that is already floating and that no hose ever captured.
They are not substitutes. A cyclone with a good filter still leaves fine dust in the air, because sanding produces a fraction of particles light enough to stay suspended and travel. Filtration does not replace source capture, because a room filter cannot pull dust into a hose, and a flex hose creates roughly three times the airflow drag of smooth rigid pipe, which reduces the capture you were counting on.
So the right order is source capture first, then ambient filtration for everything the hose missed. If your cyclone is undersized or your hose runs long and flexible, adding filtration solves the symptom, but tightening the capture end is what reduces the load the filter has to handle, which is also how you make filters last longer.
The one legitimate reason to skip ambient filtration entirely is a small shop with no ducted machines and light work, where a shop vacuum at the machine is enough. If you sand, if you cut MDF, or if you have any respiratory concern, you want both.
Frequently Asked Questions
How many CFM do I need for a shop air filter?
Multiply your shop length by width by ceiling height, multiply by 6 air changes per hour for light dust or 8 for heavy sanding, then divide by 60. A 400 square foot shop with an 8 foot ceiling needs about 320 CFM for light dust and about 427 CFM for heavy dust. Buy at or slightly above your number.
What MERV rating is recommended for wood dust filtration?
MERV 11 is the practical sweet spot for most wood shops. It captures the fine fraction a dust collector misses while leaving enough free airflow for the unit to hit its rated CFM. A 1-micron inner filter sits in the same practical band. Go finer, to HEPA, only if someone in the shop has a respiratory condition or you do heavy finishing.
Is HEPA better than a 1 micron filter for woodworking dust?
HEPA captures more, and you pay for it in airflow. A unit with a true HEPA stage typically tops out around 550 CFM, while a 1-micron unit in the same class can move 1,000 CFM or more. With six to eight air changes per hour, the volume advantage usually matters more, unless a respiratory condition makes the finest capture genuinely necessary.
Is MERV 11 too high for a shop?
No. MERV 11 is generally fine, and it is the filter grade most recommended for wood dust. The airflow problem starts when you fit media considerably finer than the unit was designed for, or skip a coarse pre-filter so the fine stage clogs with sawdust. Keep a washable pre-filter upstream and change it often, and the CFM loss stays modest.
What size air filtration system does my shop need?
For a shop under 300 square feet, a 400 CFM hanging unit is matched to the space. Between 300 and 600 square feet, look at 500 to 780 CFM. Between 600 and 900 square feet, aim for 800 to 1,000 CFM. Above 1,000 square feet, run two units on separate floors rather than one unit trying to serve the whole building.
Do I need an air filtration unit if I already have a dust collector?
Yes, because they solve different problems. A cyclone with a good filter captures dust at the machine, but fine sanding dust stays suspended and travels, and no hose catches it. Ambient filtration cleans that fraction. Tighten your source capture first, since a flexible hose creates roughly three times the airflow drag of rigid pipe, then add filtration for what is left.
What is the best air quality monitor for a woodshop?
Look for a monitor that reports PM2.5 in addition to CO2. PM2.5 gives you a direct read on fine particulate while you are sanding, and CO2 tells you whether ventilation is keeping up between door openings. Run a sanding operation, watch the PM2.5 number rise, switch the filtration unit to high, and watch it fall to confirm your CFM is adequate.
Should I recirculate shop air or exhaust it outside in winter?
Recirculate. Exhausting a heated shop throws away conditioned air and turns the unit into a furnace running backwards. Recirculating filtration cleans the air and keeps the heat, which is why cold-climate shops get the most benefit from these units. A heat recovery ventilator is the option if you genuinely need fresh air, not just clean air.
The Best Air Filtration Systems for Woodworking Shops in 2026
For most shops, the WEN 3410 is the right first buy. It is correctly sized for a single-car or small professional shop, it has the deepest review history in the category, and its remote, timer and two-stage filter handle the daily annoyances that make people stop running a unit. If your shop is 500 square feet or larger, or you sand heavily, step up to the 780 to 1350 CFM hanging units, and choose the Abestorm DecDust 1080 if noise is your concern.
Two cases break from that. A professional shop with one large floor wants the JET AFS-1000C and its 1000 CFM, auto-sensing airflow. A shop doing spray finishing, or one with a respiratory condition in the household, wants a HEPA scrubber instead, and the VEVOR delivers that filtration at the lowest outlay while the ALORAIR covers it with a 10-year warranty.
Work out your CFM number before you click anything, keep the dust collector tight, and remember that airflow volume is what actually clears a room. If you are still comparing the rest of your shop setup, our shop winch guide covers the hardware side of a working garage.
