Auto body steel is thin. A typical door skin or quarter panel is 18 to 20 gauge, which is closer to the wall of a beverage can than it is to anything you would call sheet metal in a fabrication shop. Weld that with too much heat and you do not get a strong repair, you get a hole and a warped panel. That single fact drives every recommendation in this guide to the best MIG welders for auto body work, because the machine that suits a 1/4 inch frame rail bracket is frequently the wrong machine for a floor pan.
MIG welding, also called GMAW, works by feeding a continuous metal wire from a spool through the gun while a shielding gas blanket keeps air away from the molten puddle. You set amperage, you squeeze the trigger, and the machine does the rest. It is the most forgiving process a beginner can learn, and on thin automotive steel it delivers the least heat and the least cleanup of any process you can realistically pick up in a weekend. If you have never welded before, this is where you start.
What follows is a ranked look at eight machines that work with thin automotive gauge, from a straightforward gasless unit to a dual-voltage multi-process box with spot and spool-gun capability. Every pick here runs on household power and sits in the entry to mid tier of the market. If you need shop-grade output for production collision work, this is the wrong guide, but if you are welding a rocker panel in your own garage, you are in exactly the right place.
Table of Contents
Top 3 Picks for Auto Body Welding in October 2026
These are the three we would put on a workbench first. The Forney wins on proven reliability and the deepest review history in the group, the ARCCAPTAIN wins on feature density, and the Lincoln wins when the repair has to happen away from a wall outlet.
FORNEY Easy Weld 140 FC
- 140A flux core output
- 0.030 in wire
- 19 lb
- welds to 1/4 in mild steel
ARCCAPTAIN MIG200 6-in-1
- 6 processes including spot welding
- 110V and 220V
- 10 memory slots
- synergic control
Lincoln Electric 90i FC Weld-Pak
- 15 lb inverter
- metal case with shoulder strap
- 120V
- flux core to 1/4 in
All 8 Welders Compared Side by Side in October 2026
Scan this table before you read the reviews. The columns that actually decide a body-work purchase are amperage, input voltage, whether the machine can run gas-shielded solid wire, and how heavy it is when you need to carry it around a car.
| Product | Specifications | Action |
|---|---|---|
| FORNEY Easy Weld 140 FC |
|
Check Latest Price |
| ARCCAPTAIN MIG200 6-in-1 |
|
Check Latest Price |
 bestarc 145A MIG Welder |
|
Check Latest Price |
| Lincoln Electric 90i FC Weld-Pak K5255-1 |
|
Check Latest Price |
 FEMEROL 250A 6-in-1 |
|
Check Latest Price |
 YESWELDER 135A 3-in-1 |
|
Check Latest Price |
 YESWELDER 160A |
|
Check Latest Price |
 BILT HARD 135A 3-in-1 |
|
Check Latest Price |
1. FORNEY Easy Weld 140 FC – Best Overall for Panel Work
FORNEY Easy Weld 140 Amp 120-Volt Flux-Cored Wire Feed Welder (No Gas Needed)
140A flux core
19 lb
120V
Welds to 1/4 in mild steel
0.030 in wire
Pros
- Runs gasless flux core straight off household 120V
- Infinite voltage and wire feed control for real adjustment
- All-metal case built for daily workshop use
- Light at 19 lb so it moves to the job
- Includes 8 ft MIG gun 8 ft ground clamp and 20A to 15A adapter
Cons
- Flux core only with no gas-shielded solid wire mode
- 120V input caps output at 140 amps
- Basic controls with no synergic presets or memory
The Forney Easy Weld 140 FC is the machine we would put in front of most people. It is not clever, and that is exactly why it wins. Two knobs, no memory presets to confuse you, and a wire feed that owners describe as steady. It carries a 4.6 rating across more than 3387 reviews, the deepest history of any machine in this guide, and that long run of owners is the single most useful piece of evidence available on a welder you cannot test in a shop.
For panel work specifically, the infinite voltage and wire feed speed control is the feature that matters. Entry machines usually give you a fixed low setting and a fixed high setting, which on 18 gauge steel means you either burn through or you cold-stack the puddle. Being able to land somewhere in between is what lets you walk a bead up a door skin without warping it.
The honest limitation is that this is a flux-core-only design. It cannot run gas-shielded solid wire, which means the spatter you fight before primer and paint is part of the deal. For a rust patch, an exhaust hanger, or a bracket on a frame rail, that is a completely acceptable trade. For a visible seam on a restored quarter panel where the paint has to look factory-fresh, you will be spending real time with a flap disc and a file.
It also runs 120V only, so the output ceiling is 140 amps and it wants a 20 amp breaker. That is genuinely sufficient for sheet metal. The consensus among fabricators who work on cars is that you will never reach for the high end of the amperage range on body panel and you will not need a high duty cycle either, and this machine is built for exactly that envelope.
Who the Forney Easy Weld 140 FC suits
This suits anyone whose work list is patches, rockers, floor pans, exhaust and brackets, and who wants to unbolt the machine and take it outside. At 19 pounds with an all-metal case, it is the easiest one here to carry to a driveway or a car in the street. The included 8 foot ground clamp and 20A to 15A adapter mean you can plug in almost anywhere with a two-prong outlet.
If you are restoring a car in stages over several years, the appeal is boring but real. You will not be troubleshooting a machine you already own, and the consumables are ordinary wire, contact tips and nozzles that any welding supply house stocks.
Where the Forney falls short
It falls short the moment your work becomes cosmetically visible. Flux-core spatter on a hood or a roof seam means grinding and body filler work that gas-shielded wire does not create in the first place. If your project list is mostly seam welding on show-quality panels, this is the wrong process and you should look at a multi-process machine further down the list.
Second limitation: the spool holder accepts both 2 pound and 10 pound rolls, which is convenient, but the drive system is not fast enough for heavy production work. If you ever move to doing body panels all day, you will outgrow it.
2. ARCCAPTAIN MIG200 6-in-1 – Most Features Per Machine
ARCCAPTAIN 200A MIG Welder 110V 220V 6 in 1 Aluminum Welding Machine MIG200
200A output
110V and 220V
Six processes
Spot welding mode
Pros
- Six processes including a spot welding mode owners find useful on thin material
- Ten programmable parameter slots for repeat work on the same vehicle
- Large LED display readable with a helmet on
- Cooling fan runs on demand so it stays quiet between welds
- Two-year manufacturer warranty
Cons
- Thin power cable gauge warms up on long runs
- Synergic mode needs baseline amperage set manually and the manual does not explain it
- Comes with a 110V cord and adapter rather than a native 220V cord
The ARCCAPTAIN MIG200 packs in more capability per machine than anything else at this level, and for body work the specific process that matters is spot welding. A dedicated spot mode lets you tack 24 gauge together consistently without melting through it, which is a real problem when you are fitting a patch panel before committing to a seam. Multiple owners weld panels, floor pans and exhaust with this machine and rate it at 4.6 across 974 reviews.
It runs six processes: gas-shielded solid wire MIG, gasless flux core, stick, spot, lift TIG, and spool-gun aluminum through an optional connection. That range matters on modern cars, where an aluminum hood or a galvanized panel will not respond to the same settings as a steel quarter panel. Having the capability in the same box is worth something if you plan to keep welding for years.
The synergic mode is genuinely helpful once you understand it. It matches current and wire feed speed to the wire diameter and gas you select, with manual override, and it stores ten parameter sets so a repeat job on the same car goes quickly. The catch, and it is a real one, is that synergic mode does not simply work until you set the baseline amperage yourself for the material thickness, and the documentation does not make that clear.
Get that one setting right and the machine is a strong performer. Get it wrong and the first weld will feel strange and you may write the machine off unfairly. Read the controls before the first arc.
Why we like the ARCCAPTAIN for panel work
The combination of spot mode plus memory slots is the reason this lands at number two. Fabricating a patch panel means fitting, tacking, checking alignment, and often redoing the fit. Spot mode makes the tacking stage fast and predictable, and memory slots mean the second door takes five minutes to set up instead of twenty.
It also handles a wide wire range, from .023 through .040 aluminum, and includes adaptive crater fill and burn-back adjustment, both of which help produce a bead you can grind flush and paint without a lot of secondary work.
What to watch out for
The electrical side is the weak cluster in owner feedback. The power cable gauge is thin for the amperage and warms during long runs, and the machine comes wired for 110V with an adapter rather than a native 220V cord. If you plan to run it on 220V regularly, plan on replacing the cord with a properly gauged one.
One more practical note: wire feed speed is displayed in meters per second rather than the inches per minute most American wire charts assume. Translate it or find a chart that matches, because guessing here causes porosity and inconsistent beads.
3. bestarc 145A – Best Dual-Voltage Starter
Bestarc 145A MIG Welder, Flux Core/Gas MIG Stick Lift TIG Welding, 110/220V
145A output
110V and 220V auto-detect
13.7 lb
Four processes
Synergic voltage match
Pros
- Dual voltage suits RV and mobile work where only one outlet type is available
- Synergic settings plus a large LED display make it approachable for a first welder
- Owners report clean low-spatter solid MIG results
- Weighs 13.7 lb so it moves easily between garage and field
- Later production models include the knurled drive roll and longer torch owners asked for
Cons
- Torch lead is short on earlier versions and limits reach from the floor
- Spool holder spring tension is not adjustable and can crush the wire
- Included cables are shorter than advertised on some models
The bestarc 145A is the smartest first machine on this list for someone who is not sure where they will be welding. It auto-detects whether you plugged into 110V or 220V and shows the selected voltage on the front panel, so you can move it between a garage circuit and a shop outlet without guessing. It runs four processes including gas-shielded MIG, which matters for cosmetic seams, and it weighs 13.7 pounds.
At 4.6 across 680 reviews, the weld quality punches above the tier. Owners doing sheet metal and trailer work report clean, low-spatter solid MIG results they compare favorably to more expensive machines. The synergic control auto-matches voltage to wire feed speed, and you can fine-trim voltage from minus 3V to plus 3V, which is exactly the adjustment you want when a bead starts to sink into 20 gauge.
One thing worth knowing is that this model has a documented history of being improved. Early versions had V-groove drive rolls only, which made flux core arc stability poor until you fitted a knurled roll, and had a short torch lead. Later production models shipped with the knurled roll and the longer lead as standard. The company listened, and it shows in the current machine.
Where the bestarc 145A fits best
It fits a weekend restorer who will be welding outside as often as in. Dual voltage plus 13.7 pounds plus a shoulder strap means one machine covers a home garage, a mobile repair kit and a shop outlet. The top-load wire access means you are not unscrewing anything to change spools.
It is also a strong trailer and hitch machine. Gas MIG gives you the clean bead you want on a tongue or a leaf spring hanger, and the included 220V to 110V adapter covers outlets you find on the road.
What gives us pause
The spool holder spring tension is not adjustable, and owners report it running tight enough to crush the wire, which feeds as a kink you will find mid-weld. Check it at a bench before you start a panel.
The documentation is also thin. It does not explain that pushing the rotary knob in switches between wire feed adjustment and the voltage ratio setting, and that one missing sentence costs a beginner an afternoon. Cables on some models measure shorter than advertised, so plan your reach before you climb into a rocker panel.

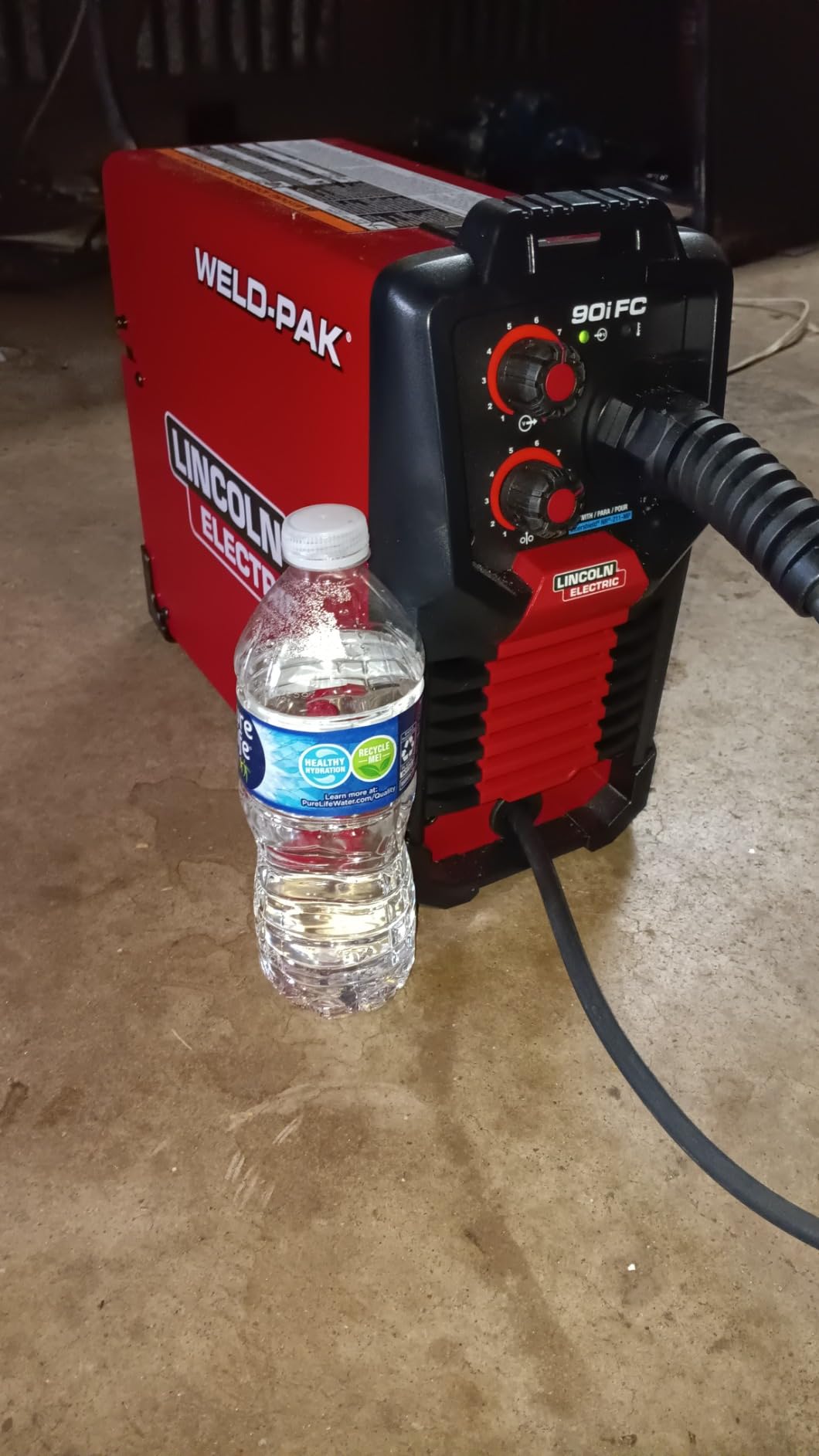

4. Lincoln Electric 90i FC Weld-Pak – Best for On-the-Go Repairs
Lincoln Electric 90i FC Flux Core Wire Feed Weld-PAK Welder, 120V Welding Machine, Portable w/Shoulder Strap, Protective Metal Case, Best for Small Jobs, K5255-1
90A class flux core inverter
15 lb
120V
Welds to 1/4 in
Metal case and strap
Pros
- Inverter design is about half the weight of a transformer machine at 15 lb
- Two-knob setup that beginners pick up immediately
- Owners doing sheet metal weld 14 to 18 gauge work cleanly once set
- Lincoln name means consumables and service are easy to find
- Metal case protects it in a work truck
Cons
- Ground clamp bonding braid is too short and detaches from the jaw
- Flux core spatters noticeably more than solid wire
- 120V only and will trip a 20A breaker on sustained work
The Lincoln Electric 90i FC Weld-Pak carries the highest average rating in this entire group at 4.7, across 572 reviews, and the reason is consistency rather than capability. The controls are two knobs. The arc is smooth. It weighs 15 pounds and comes with a shoulder strap and a metal case. For the specific job of pulling up on a car in a customer driveway and welding a broken bracket or a torn exhaust hanger, nothing else here is this frictionless.
Owners doing sheet metal work report it handles thin 14 to 18 gauge material and body panels cleanly once the settings are dialed in, and that multiple passes let it take on jobs bigger than the 1/4 inch headline rating suggests. That is a common and reasonable pattern on a compact inverter: you are not at full output, but the puddle behaves.
The Lincoln name is worth more than it sounds for a first machine. Consumables are ordinary, but they are stocked everywhere, and if something goes wrong there is a service network. If you already own commercial Lincoln gear, this reads as a natural portable complement rather than a toy.
Why the 90i FC earns its place
Portability is the whole argument. At 15 pounds with a metal protective case and a shoulder strap, you can carry it around a vehicle or set it on a tailgate. Inverter design also means it draws less power for the same output than a transformer of the same rating, which matters when you are plugging into whatever outlet is available.
For a beginner, the two-knob layout is a feature. There is nothing to misconfigure, which means your first weld is a test of your technique rather than a test of your ability to navigate a menu.
What to know before you buy
The most cited defect across reviews is the ground clamp. Its bonding braid is too short and can pull free of the jaw after a few welds, which on a car can produce a scorch mark on the paint and a bead you have to redo. Budget for a replacement clamp, and clamp on bare metal inside the panel, never on paint.
It is also flux core only, so you have the same spatter trade-off as the Forney, and it is 120V only, so sustained heavy work can trip a 20 amp breaker. For the driveway jobs it is built for, that is fine.
5. FEMEROL 250A 6-in-1 – Most Measured Output in the Group
FEMEROL 250A MIG Welder,6 in 1 Gas MIG/Gasless Flux Core/Stick/Lift TIG/Spot Welding/Spool Gun Compatible Aluminum Welding Machine Large LED Display 110V/220V Multi Process Welder
250A at 60 percent duty cycle
110V and 220V
Six processes
Spool gun ready
32.6 lb
Pros
- Verified output of roughly 230 to 245 amps rather than a nameplate claim
- Spot weld mode joins 24 gauge consistently without burning through
- Aluminum through the standard torch using the included teflon liner
- Generous 9.5 ft torch ground and stick cables for this tier
- Two-year guarantee with responsive support
Cons
- Cooling fan is loud and runs constantly rather than on demand
- Barbed gas hose fitting and the included hose is poor quality
- No TIG amperage control beyond preset so lift TIG is limited
The FEMEROL 250A is the only machine here where experienced welders running shorting-bar tests confirm the output numbers independently. The manufacturer claims 250 amps at a 60 percent duty cycle, and owners measuring the machine report roughly 230 to 245 amps. That is the single biggest reason to consider it, because headline amperage on compact machines is usually fiction.
It ships at 4.3 across 375 reviews, the lowest average in this group, and that tracks a machine with strong raw capability and uneven finishing rather than a flawed one. The one and two star reviews concentrate on build details: fan noise, plug gauge, gas hose fittings and torch angle. Reviewers with production experience rate it as a multi-machine shop alternative to a machine with a far higher price band.
For body work, two capabilities stand out. The spot welding mode lets you consistently join 24 gauge without burning through it, which is genuinely difficult by hand and is the fastest way to make a fit-up repeatable. And owners report welding aluminum with .035 wire through the standard torch using the included teflon liner, with no birdnesting, which spares you the cost of a separate spool gun for occasional aluminum panels.
Where the FEMEROL earns its slot
It fits the person doing heavier occasional work than pure panel work: a frame rail patch, a cab corner, a bumper reinforcement, a 1/4 inch bracket. Owners report running 1/4 inch to 1/2 inch steel at maximum output through a 10 pound spool in a day without the machine stumbling, and the wire range covers .023 through .045 including aluminum.
The 9.5 foot torch is genuinely generous at this level. A longer lead means fewer awkward postures when the machine sits on the floor and the panel is on a lift.
What to fix before you weld
The included 120V plug and cord are undersized for a 250 amp machine. Owners upsizing to heavier wire and a proper 50 amp plug report the machine then holds up to sustained high-amperage work, so treat that as a required modification rather than an optional one.
Second, the gas connection is a barbed fitting rather than a threaded quick-connect, and the included hose is poor quality. A barbed gas fitting on a machine that will see temperature cycles is a leak waiting to happen, so budget for a proper hose and regulator. The constant fan noise is a nuisance, and the absence of TIG amperage control limits you to preset heat on lift TIG.
6. YESWELDER 135A – Easiest First Machine to Own
YESWELDER 135A MIG Welder, 110V Flux Core Gasless MIG/Lift TIG/Stick 3-in-1
135A on 110V
11.4 lb
Gasless flux core plus stick and lift TIG
Mild steel to 3/32 in
Pros
- Ready to weld with two spools of E71T-GS wire included and no gas cylinder
- Synergic control cuts burn-through on thin panels with plus or minus 3V trim
- 11.4 lb makes it one of the most portable gasless welders
- Experienced users report clean strong beads on exhaust and tow bar work
- Large clear display that reads outdoors
Cons
- Synergic only in flux core so voltage cannot be set independently
- Wire spool holder and ground clamp feel cheap
- Capacity tops out around 1/8 in steel and flux core spatters
The YESWELDER 135A is the machine most first-time owners in this guide will end up with, and for a specific reason: it arrives with everything you need. Two spools of E71T-GS flux core wire, an electrode holder, a ground clamp and a MIG torch are in the box. You open it, plug it into a wall, and weld. No gas cylinder, no separate wire purchase, no trip to the supply house on day one.
At 11.4 pounds it is the lightest machine here, and it holds a 4.4 rating across 2985 reviews, among the largest review bases in the group. Experienced hobby welders who replaced dead entry-level machines with it report better penetration and less spatter than what they had before, especially on exhaust and general vehicle repair. That is the honest, unglamorous use case where it shines.
The synergic control is what protects a beginner from burning through thin panel. It matches recommended voltage to wire feed speed automatically, and you get plus or minus 3V of manual trim to walk the setting in once you know what you want. On 20 gauge auto body, that trim range is the difference between a weld and a hole.
Why beginners keep this one
It is the lowest-commitment way into welding, and the accessory situation is solved on day one. The included wire is the right type for the job, the display shows live current, and the machine is quiet on startup compared with older transformer designs.
It is also the easiest to move. Eleven pounds means you can take it to the driveway, the yard or the truck bed without thinking about it, which is how most first welding projects actually happen.
Where it will frustrate you
The synergic mode only operates in flux core, so you cannot independently set voltage and wire feed speed. Experienced users notice this immediately, and it is the thing that will eventually push a serious hobbyist toward a second machine.
Second, the hardware is thin: the spool holder, tensioner, stinger, electrode holder and ground clamp all feel cheap, and the contact tip can jam on very thin material at cold settings. With a 4.4 average and a visible cluster of outright failures in the reviews, expect to treat this as a learning machine rather than a lifetime one.
7. YESWELDER 160A – Best When Your Garage Has 220V
YESWELDER 160A MIG Welder, 110V/220V MIG/Flux Core/Lift TIG/Stick
160A output
110V and 220V dual voltage
Four processes
19.4 lb
Synergic and full manual
Pros
- Both synergic and full manual modes so beginners get a start and experienced users keep control
- Users coming from Miller and Lincoln report professional-looking low-spatter beads on solid wire
- Works on 110V and 220V which broadens where it can be used
- Handles 6010 6011 6013 and 7018 rods for work beyond MIG
- Long-term owners report two-plus years of reliable use
Cons
- Stick mode is hard to strike an arc on and 6010 runs poorly
- Included gun liner is thin and melted when it brushed a hot weld
- Truly needs 220V since the 110V adapter can pop the breaker
The YESWELDER 160A is the machine to buy if your garage has a 220V circuit. That single fact changes everything: you get a machine with both synergic and full manual control, real gas-shielded MIG performance, and enough output to work on more than just sheet metal. It runs at 4.5 across 908 reviews, and users arriving from Miller and Lincoln machines judge the MIG side competitive rather than a compromise.
On 110V, it is honest but compromised. Owners report that the 110V adapter periodically pops the circuit breaker, and that the machine is at its best on 220V. If you only have a two-prong outlet in your garage, choose the bestarc 145A or the Lincoln 90i FC instead.
The manual control mode is what separates this from the cheaper single-mode machines. You can set wire feed speed and voltage independently, which is precisely the control you need when you are fitting a patch panel and the gap varies by a few thousandths along the seam. The synergic mode is there when you want a quick start and the manual mode is there when you have earned it.
Why the 160A is worth the circuit requirement
It handles 2 pound and 10 pound spools of .030 and .035 solid or flux core wire, so you can run fine wire for panel work and heavier wire for frame brackets on the same machine. The LED display gives you a live readout, and the protection package covers over-current, over-load, over-heating and voltage fluctuation.
At 19.4 pounds with a carrying handle it is still perfectly manageable, and it doubles as a stick machine for exhaust and structural work that does not warrant a TIG setup.
What the reviews flag
Stick is the weak half. The arc is hard to start and 6010 electrodes run poorly next to 6011, 6013 and 7018, so treat the stick side as an extra rather than a reason to buy. The included gun liner is thin enough that owners report it melting after brushing a hot weld, so replace it early.
Sunlight readability is a real complaint, and it is a nuisance if you are welding outside, which is exactly when you may be doing panel work. There is also a small but notable group of reports describing machines that would not arc at all, tied to a wire drive polarity lead configuration the manual does not cover. Check the drive lead arrangement before your first weld.

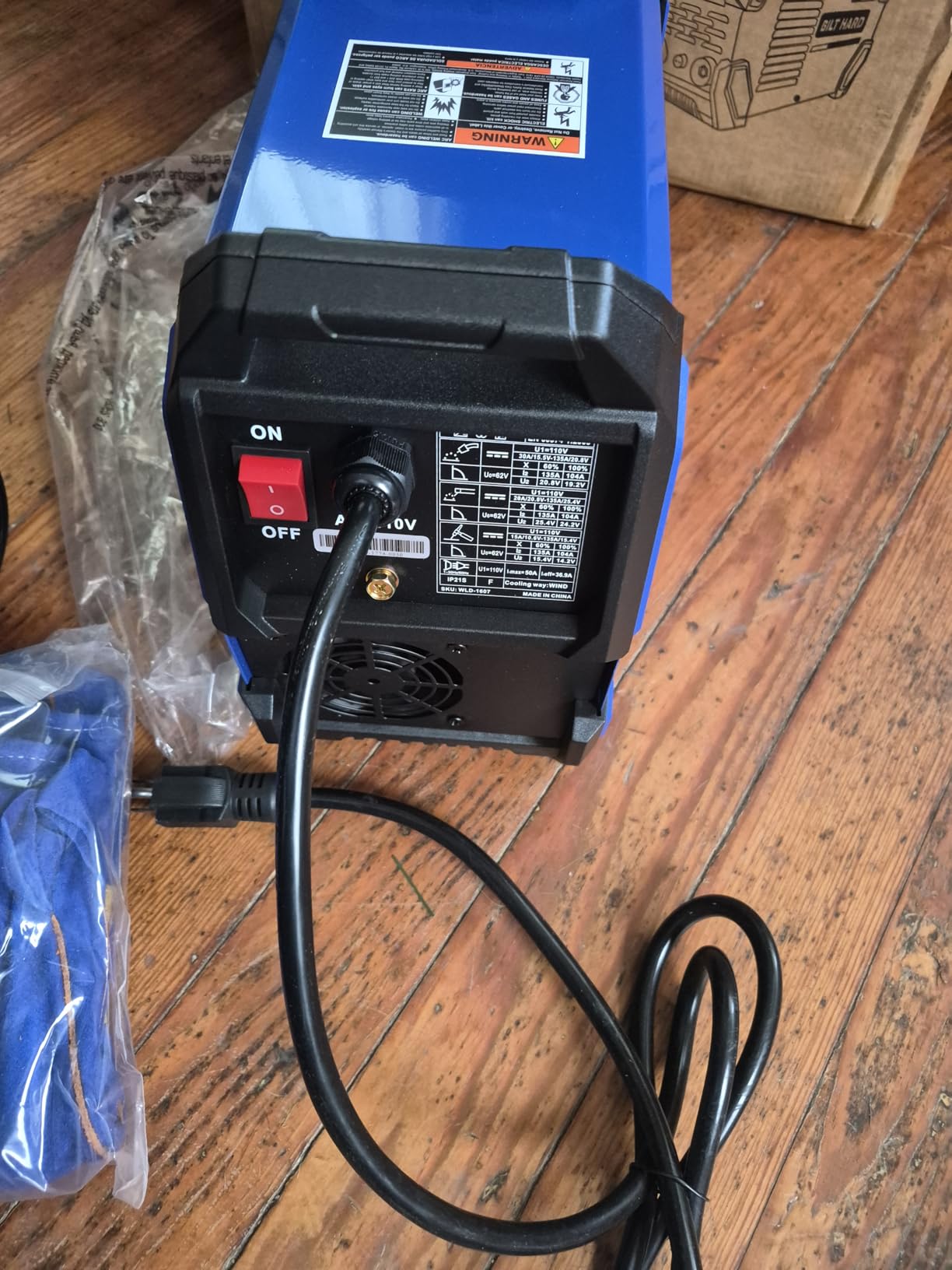

8. BILT HARD 135A 3-in-1 – Most in the Box
BILT HARD 135A 3-in-1 IGBT Inverter Welder, 110V Flux Core MIG/Lift TIG/Stick Welding Machine with Synergic Control, LED Display, 2T/4T/SPOT Modes & Full Kit (Solar Helmet)
135A IGBT inverter on 110V
Flux core MIG lift TIG and stick
2T 4T and spot modes
Solar helmet
Pros
- Feature set is unusual at this tier with LED display synergic control and spot mode
- Full kit includes a solar helmet wire gun ground clamp and contact tips
- Arc stability and bead quality exceed expectations for a 135A entry machine
- Plenty of power for exhaust rebar brackets headache racks and trailers
- Fault codes with error readouts help beginners diagnose overload
Cons
- Capacity realistically tops out near 3/16 in with 1/4 in as a hard ceiling
- Duty cycle is limiting on long sessions and requires breaks
- Included helmet darkness knob drifts and TIG must be bought separately
The BILT HARD 135A is the answer to the question nobody asks out loud but everyone wants to ask: what comes in the box. This kit includes a solar-powered auto-darkening helmet, a 6.6 foot MIG gun with a .030 inch contact tip, a 10 foot ground clamp, 2 pounds of flux core wire, a spare .035 inch tip, a brush and a chipping hammer. The helmet alone is a real purchase, so this is effectively a starter setup at a single-machine price.
The machine itself is better than the accessories. It runs 4.5 across 525 reviews, and buyers consistently report that the welder is more capable than expected, particularly the display and the synergic control. The 2T, 4T and spot trigger modes are a genuine bonus here: spot mode is useful for tack work on thin material, and 4T is the mode you want for a long seam once you are steady enough not to build a crater at the end.
The fault code system with E1 for overcurrent and E2 for overheat, plus a one to two minute fan cooldown, is a small touch that helps beginners learn. When something goes wrong, the machine tells you why.
Why this kit appeals to a first-time buyer
Safety gear is the thing people skip, and welding without a proper auto-darkening helmet is a bad idea no matter how small the job. Having a solar helmet in the box removes the excuse, and the LED display tracking voltage, current and wire speed in real time makes the machine feel like it is teaching you.

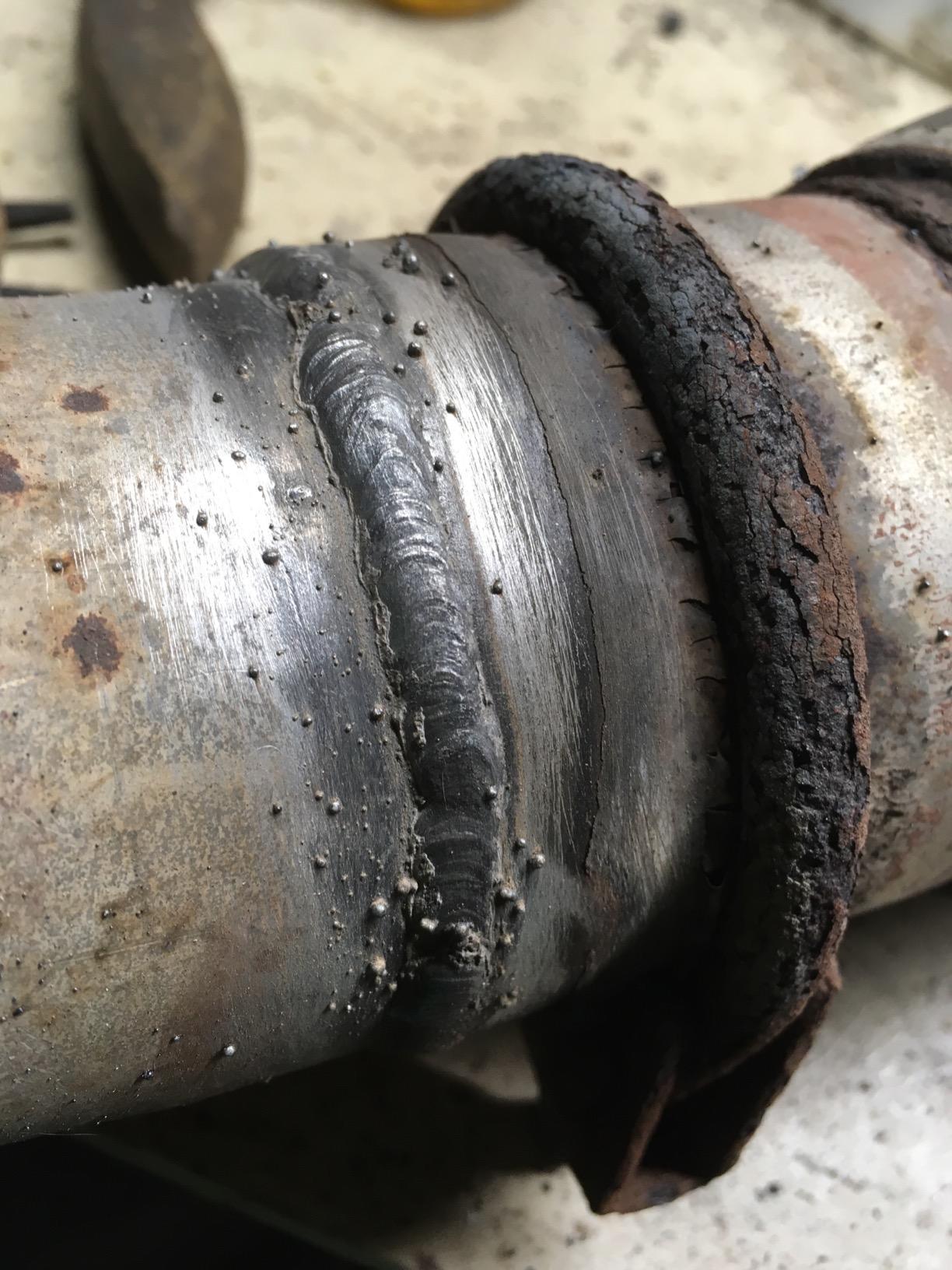

It is a genuinely capable 135A on 110V through an IGBT inverter, and owners put it to work on exhaust pipes, rebar brackets, truck headache racks and trailer repairs. The special MIG burn-back and inductance settings plus MMA hot start and arc force modes are useful on a small machine.
What to expect from the accessories
Expect the consumables to be the weak point, which is normal for a bundle. The helmet darkness knob rotates too easily and drifts, so check it before every weld until you trust it. The head band is difficult to assemble, the gloves are stiff and run hot in one spot, and the chipping hammer and brush are poor quality.
Capacity is the other limit: realistically near 3/16 inch, with 1/4 inch as an absolute ceiling, and the duty cycle requires breaks during long sessions. That is fine for panel work and small brackets, and it is not enough for a production day on structural steel. The spool spindle and wingnut also do not always engage cleanly, and a small number of owners received the machine without the wire spool, which the seller resolved.
Auto Body Welding Buying Guide: What Actually Matters
What kind of welder should I use for auto body work?
Use a gas-shielded MIG welder, also called GMAW, for body panels. A continuous solid wire feeds through the gun while an argon and carbon dioxide mix blankets the molten puddle, and that gas is what keeps spatter off your paint and your filler. It is the least heat-intensive process you can learn quickly, and it lays down a bead that sands flush for filler without warping the surrounding metal.
A flux-core machine will do the job, but it is a second choice for visible seams. The shielding comes from a flux powder in the wire core, so the wire is thicker and softer, the bead is wider and lumpier, and the spatter is significant. That spatter has to be ground off before primer, which is a lot of extra time on a panel you care about. For a hidden structural repair or a rusty patch, flux core is perfectly reasonable.
Is it better to weld with 110 or 220? And will your garage circuit handle it?
For sheet metal, 110V is genuinely enough. The prevailing view among people who weld cars is that you will never use the high end of the amperage range on body panel and you will not need a high duty cycle either. Auto body shops are full of 110V machines for exactly this reason.
The real question is your circuit, not the machine. A welder drawing more than about 12 amps at 120V will trip a 15 amp circuit, and the result is a machine that gets returned as defective when it is not. Check what your outlet is on before you buy: a 20 amp circuit has the T-shaped neutral slot on the hot blade, while a 15 amp circuit has two vertical blades of equal width. The National Electrical Code’s 80 percent rule means a 20 amp circuit supports about 16 amps of continuous load, so a 140 amp welder at typical input draw fits, but check the machine’s input amperage rating against your circuit before you order.
If you plan to weld 1/8 inch steel or thicker regularly, 220V is worth the electrician visit. A 30 or 50 amp dedicated circuit removes the breaker trips that derail a first project, and it opens up the dual-voltage machines in this guide that perform much better at the higher input.
What size MIG wire is best for bodywork?
Use .023 or .025 inch solid wire with a 75 percent argon and 25 percent carbon dioxide mix, commonly sold as C25. The smaller diameter gives you a narrower puddle and better heat control on thin gauge, which is exactly what you need on a door skin. Heavier .035 inch wire is for thicker material and will fight you on 20 gauge panel.
For aluminum panels, a spool gun feeding .035 or .040 inch wire with 100 percent argon is the only clean option. A standard C25 mix will not weld aluminum properly, and pushing aluminum through a standard torch liner risks birdnesting. If your car has aluminum hoods, panels or closures, factor a spool gun capability into the purchase before you buy the machine.
How do you stop burn-through and warped panels?
Turn the amperage down until you are slightly afraid it will not fuse, then raise it until you are slightly afraid it will burn through. On 20 gauge that usually lands in the range where you are running shorter arcs and moving faster than feels natural. Long, lazy welds on thin panel are how warping starts.
Distortion is a sequence problem more than a heat problem. Clamp your parts, tack from the middle of the seam outward, and use short stitch welds of about one inch with gaps between them rather than one long run. Back-stepping, where you weld a short segment and then move back over the previous one as the metal cools, balances the heat. Work on a flat surface where you can, and check flatness as you go rather than at the end.
How do you prep a rusty or galvanized panel before welding?
Grind back to clean metal. This is the step people skip and then spend an hour debugging. Rust pits, old paint and galvanized coating will all contaminate the puddle, and you will get porosity no matter how good your settings are.
Work in stages: strip the paint and surface rust with a flap disc or a wire wheel, grind the weld area back to bright metal a little wider than the seam, and clean it with a grinder-mounted or dedicated degreaser before you weld. Mask or grind back any factory seam sealer, weld-through primer or plastic coating in the joint area, because those offgas into the puddle and cause porosity. Vacuum the area afterward, because grinding dust trapped under the bead will keep rusting from the inside.
Fit-up matters as much as prep. Tack the parts, check the gap against your intended wire and travel speed, and remember that a gap wider than about 1/16 inch on thin panel will burn through before it fills. If you are working on a car, the factory spot welds and seam sealer are your reference for where the original joint sat.
What practice work should you weld first?
Do not learn on the car. Take scrap of the same gauge and weld it first: 18 and 20 gauge mild steel offcuts, in the same position you will work in on the vehicle, at the same wire and gas you plan to use. A single 20 gauge coupon will teach you more about heat control than any amount of reading.
From there, practice in a sequence that matches body work: butt joints, then lap joints, then a T joint for a bracket, then a longer stitch-welded seam so you can see how the panel distorts. Our broader guides to the best MIG welders overall and to the best welders across every process cover the wider buying picture if you want more than a body-work focus.
Finally, budget the safety gear before you order the machine. An auto-darkening welding helmet is non-negotiable, and our auto-darkening welding helmet guide covers the shade numbers you need. For the non-MIG repairs on the same project, stick welding comes up often, and we cover that in the best stick welder picks. Add gloves, a fume extractor or at least a cracked-open door, and a proper 10 percent shade for grinding.
Frequently Asked Questions
Which MIG welder is best for car body work?
For most home and garage projects, a 140 to 160 amp gasless flux-core or gas-shielded MIG machine on 120V is enough, because body panels are 18 to 20 gauge and you never need the top of the amperage range on sheet metal. Choose gas-shielded solid wire if the seams will be visible under paint, and flux core if they will be hidden or you want to avoid a gas cylinder.
What size MIG wire is best for bodywork?
Use .023 or .025 inch solid wire with a 75 percent argon and 25 percent carbon dioxide mix, often sold as C25. The small diameter keeps the puddle narrow and the heat low, which is what prevents burn-through on 18 to 20 gauge panel. For aluminum panels you need .035 or .040 inch wire, a spool gun, and 100 percent argon.
Do I need shielding gas for car body welding?
Not strictly. A gasless flux-core machine welds rusty steel and anything outdoors in wind, which is why many restorers keep one as a driveway tool. But flux core spatters, and every bit of spatter has to be ground off before primer on a visible seam. If the panels will be seen, gas-shielded solid wire is worth the cylinder.
Is it better to weld with 110 or 220?
For sheet metal, 110V is sufficient, provided your garage circuit can handle it. A welder drawing over roughly 12 amps at 120V will trip a 15 amp circuit, so check whether your outlet has the T-shaped neutral slot that marks a 20 amp circuit. Choose 220V if you regularly weld 1/8 inch steel or thicker, or if you want a dual-voltage machine to run at its best.
What welder is best for thin sheet metal?
Look for low minimum amperage, a synergic mode with manual voltage trim, and a spot welding mode for tack work. On 20 gauge you want to be able to run short arcs and move quickly, so a machine with independent wire feed and voltage control beats one where voltage is locked to the feed speed. Gas-shielded solid wire also produces noticeably less spatter on thin material.
Final Verdict: Which Auto Body Welder Should You Buy?
The FORNEY Easy Weld 140 FC is our pick for the best MIG welders for auto body work overall, because it has the deepest record of real ownership behind it and the controls that let you dial in thin gauge. If your seams will be seen under paint, move up to the ARCCAPTAIN MIG200 for gas-shielded MIG plus a spot mode, or the YESWELDER 160A if you have a 220V circuit. For repairs away from the garage, the Lincoln Electric 90i FC goes in the truck and does the job.
Whichever one you choose, buy it for the gas and wire setup you will actually use on 18 to 20 gauge steel, practice on scrap first, and grind back to clean metal before you strike an arc. That preparation is worth more than any machine on this list.
