The best TIG welders for aluminum are AC/DC machines with real alternating current output, high frequency arc start and usable amperage under AC. Our best overall pick is the PRIMEWELD TIG225X, a 225 amp AC/DC TIG and stick welder rated for 1/4 inch aluminum with 200 Hz pulse control and a genuine CK Worldwide torch in the box. Ten machines follow, covering entry-level to professional tiers.
Here is the part most shopping pages get wrong. A large share of machines sold with the word TIG on the box are DC-only, and a DC-only machine physically cannot weld aluminum because it cannot break the oxide layer that forms on the surface in milliseconds. Buyers discover this after the machine is set up on the bench, the shielding gas is flowing, and the tungsten is ground.
That is why every pick below was filtered on one question first: does the AC output do real work, or is it a token mode bolted onto a DC-only chassis? Secondary criteria were the minimum amperage you can strike an arc at, whether high frequency start is present, whether pulse is standard or an extra, and how honest the aluminum thickness rating is. We also weighed what is actually in the box, because a machine that ships without a foot pedal or argon regulator is not the same purchase as one that does.
Before you go further, it helps to have the wider machine picture in view. Our guide to the best TIG welders overall covers the DC-only machines and process combinations, and our general welder roundup covers MIG and stick options for the same shop.
Table of Contents
Top 3 Picks for TIG Welding Aluminum for October 2026
PRIMEWELD TIG225X
- 225A AC/DC TIG and stick
- 200 Hz pulse
- 1/4 inch aluminum
- CK17 Superflex torch included
Weldpro 200A AC/DC TIG
- 5 in 1 modes
- AC balance and frequency control
- Automatic 110V/220V
- Foot pedal included
Everlast PowerTIG 200DV
- 5 amp DC start current
- Lift start plus HF start
- Pre and post flow gas control
- Dual voltage
Best TIG Welders for Aluminum in October 2026
Every machine in the table below puts out real AC current. That is the non-negotiable filter, and everything else on the list is a preference.
| Product | Specifications | Action |
|---|---|---|
| PRIMEWELD TIG225X 225A AC/DC TIG and Stick |
|
Check Latest Price |
| Weldpro 200A AC/DC TIG with Pulse |
|
Check Latest Price |
| Everlast PowerTIG 200DV Dual Voltage |
|
Check Latest Price |
 LOTOS TIG200ACDC 200A Square Wave |
|
Check Latest Price |
 ARCCAPTAIN TIG200P 7 in 1 AC/DC |
|
Check Latest Price |
 Sunstac TIG-250 AC/DC Pulse |
|
Check Latest Price |
 Everlast PowerTIG 210EXT Advanced Pulse |
|
Check Latest Price |

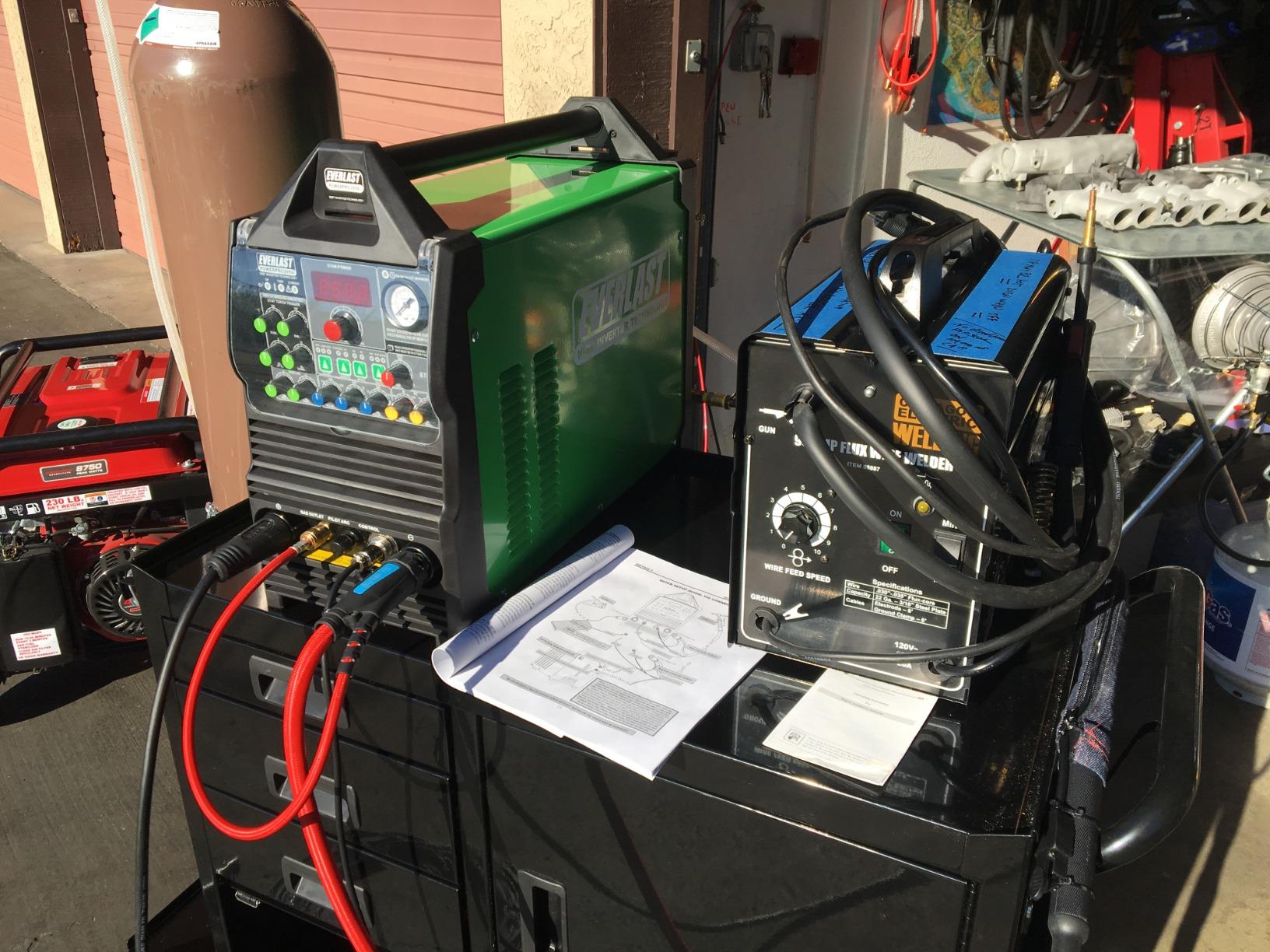

 Everlast PowerPro 205Si Multi Process |
|
Check Latest Price |

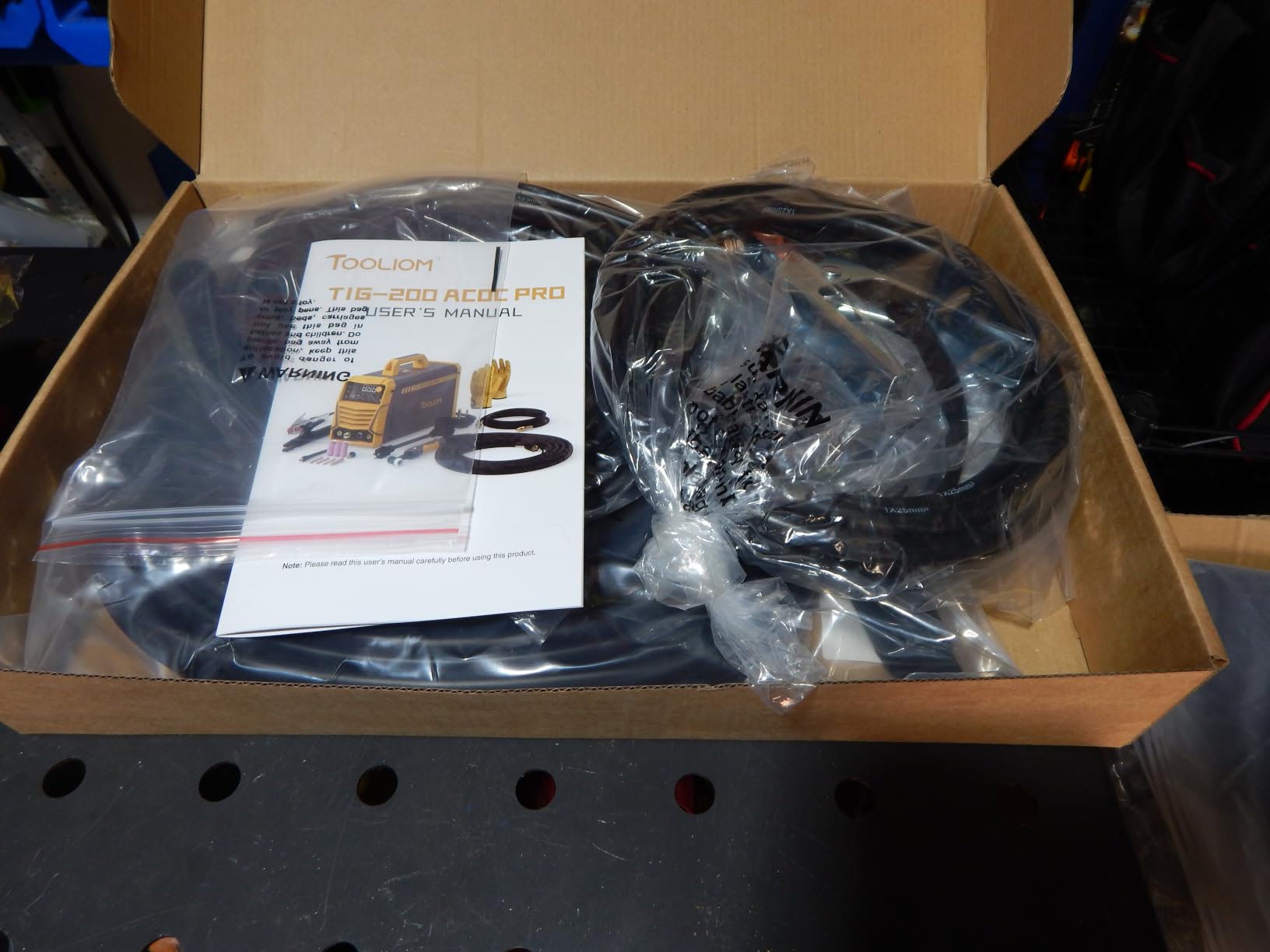

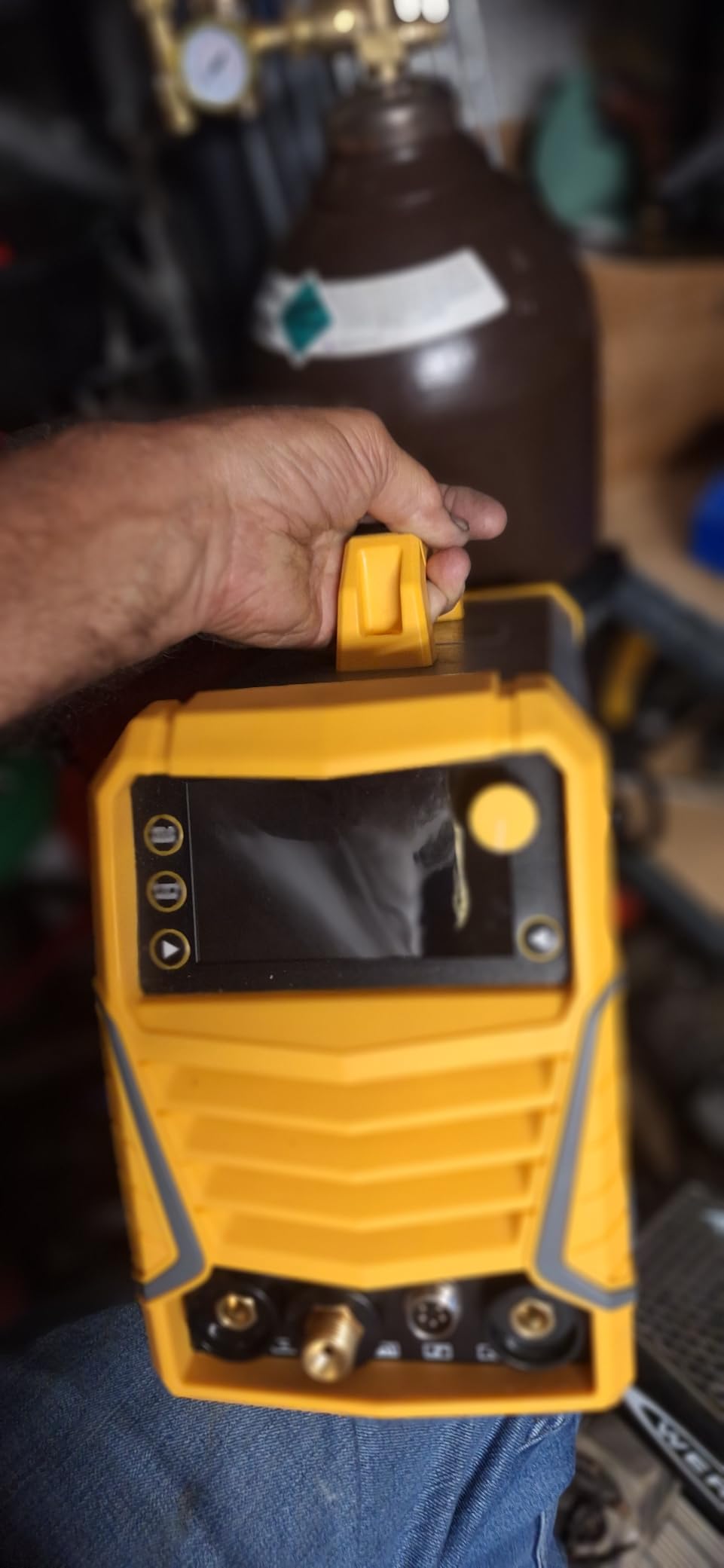

 TOOLIOM 6-in-1 AC/DC Pulse TIG |
|
Check Latest Price |
 AHP AlphaTIG 203Xi AC/DC with Pulse |
|
Check Latest Price |
1. PRIMEWELD TIG225X – The Best TIG Welder for Aluminum Overall
PRIMEWELD TIG225X 225 Amp IGBT AC DC Tig/Stick Welder with Pulse CK17 Flex Torch and Cable
225A AC/DC TIG and stick
Pulse at 200 Hz
1/4 inch aluminum capacity
110/220V, CK17 torch
Pros
- AC/DC pulse output handles aluminum
- stainless and thin steel
- Genuine CK Worldwide CK17 Superflex torch in the box
- Analog knobs that are easy to learn
- Responsive factory support
- 57-page instruction manual included
Cons
- Control and dial labels are hard to read in low light
- Cooling fans run continuously and are loud
- Main power switch sits on the rear of the chassis
This is the machine we keep coming back to. The TIG225X is a 225 amp AC/DC TIG and stick welder with a 200 Hz pulse frequency, rated by the manufacturer for 1/4 inch aluminum and 3/8 inch mild steel. Across 1426 reviews it holds a 4.8 star average, which is the widest validation of any AC/DC aluminum machine we looked at.
What earns it the top spot is not the headline amperage. It is the combination of a real CK Worldwide 17 Series Superflex torch in the box, a 57-page manual that actually explains AC balance, and analog knobs you can adjust while wearing a welding glove. For a machine that will be used hundreds of hours on mixed aluminum and steel work, that combination of usable hardware and readable controls is worth more than an extra 25 amps.
We also liked that pulse is a standard feature rather than a paid upgrade. Pulse is what lets you control heat on thin aluminum, and on a machine where it is buried in a menu behind a mode selector it becomes a setting you never touch. Here it is a dial.
Technically it is an IGBT inverter using PWM control, operating on 110 or 220 volts, with high frequency start controlled from the hand torch and heat controlled from the foot pedal. It welds 7018 and 6013 electrodes in stick mode, so the same box covers aluminum, stainless, mild steel and repair work on trailers or exhaust components.
The honest criticisms show up consistently in owner reviews and are worth weighing. The dial and control labels are hard to read in low light, which is exactly the lighting condition you weld in most often. The cooling fans run continuously rather than on demand, so the machine is louder than it needs to be when sitting idle.
A few owners also reported a faulty argon regulator arriving in the box, and the main power switch is on the rear of the unit rather than the front panel. None of these are deal breakers, and the support response is repeatedly described as good, but check the regulator on arrival. It is a two-minute fix if it leaks.
Who this TIG welder for aluminum suits
This suits the fabricator who alternates between aluminum, stainless and mild steel in the same week and wants one machine instead of two. It also suits anyone who has been renting or borrowing a TIG and has decided the per-project economics no longer work.
The 1/4 inch aluminum rating is the practical ceiling for most garage and small shop work. Automotive bracketry, trailer repairs, marine hardware and general fabrication all sit comfortably inside that number. It is a machine that is difficult to outgrow as a hobbyist or small-shop welder, which is the most common description in reviews.
Where it falls short
The continuous fan noise is the biggest daily irritation, particularly in a home garage where the machine shares space with a workshop. If you run long aluminum sessions back to back, the cooling is doing real work and the sound is the price of that.
There is also no manufacturer-published maximum aluminum thickness beyond the 1/4 inch figure, and no pulse parameter depth like adjustable upslope and downslope on the digital machines. If you plan to run production thin-gauge aluminum with tightly controlled heat input, look at the Weldpro or the ARCCAPTAIN instead.
2. Weldpro 200A AC/DC TIG – Best Value for Aluminum Work
Weldpro 200A AC/DC TIG Welder with Pulse, 110V/220V Dual Voltage Aluminum TIG Welder, AC TIG/DC TIG/AC PULSE TIG/DC PULSE TIG/Stick 5 in 1 Multiprocess Welding Machine with TIG Torch & Foot Pedal
200A AC/DC TIG and stick
AC and DC pulse 0.5-200 Hz
Auto 110V/220V
LED display, foot pedal included
Pros
- Five modes including AC pulse and DC pulse TIG
- Adjustable AC balance and AC frequency for aluminum
- Large LED display readable in bright and low light
- Rocker foot pedal included in the box
- Automatic dual voltage switching
Cons
- Rated 40% duty cycle at full 200A output
- 61.8 pound body is among the heavier machines here
- No manufacturer-claimed maximum aluminum thickness is published
The Weldpro 200A has an unusually complete feature set for a machine in this class, and it is the one we would hand to someone who wants control without learning an industrial interface. It runs five modes: HF AC TIG, DC TIG, AC pulse TIG, DC pulse TIG and stick. Pulse frequency spans 0.5 to 200 Hz with adjustable peak amperage, upslope and downslope, plus 2T and 4T trigger modes.
It is the second most validated machine here, with 836 reviews at a 4.6 star average. Owners single out the large high-contrast LED display, which stays readable in a dark garage and in bright outdoor light, and the rocker foot pedal, which gives fine amperage control without the dead zone a linear pedal can have.
The automatic 110V and 220V switching is genuinely useful rather than a checkbox. Plug it into a household circuit in the garage and it detects and switches, then move it to a 220V circuit in a dedicated shop and it does the same. The machine measures 17.6 by 7.9 by 16.2 inches and weighs 61.8 pounds.
Included in the box is a full accessory kit: TIG torch, rocker foot pedal, 300A ground clamp, stick holder, gas hose, flow meter, tungsten, nozzles, collets and back caps. That is a meaningful saving, because a replacement torch alone can approach the cost of a budget machine, and it removes the most common reason a first TIG purchase disappoints on arrival.
The technical specification is an IGBT inverter rated at 40% duty cycle for full 200A output, with overheat, over-current, over-voltage and under-voltage protection circuits. That duty cycle figure is the constraint to plan around rather than a defect. Sustained heavy plate work needs breaks; intermittent shop work and fabrication will not notice it.
One thing to note: the manufacturer does not publish a maximum aluminum thickness figure for this machine. The controls are clearly built for aluminum, including adjustable AC balance and AC frequency for aluminum, magnesium and other non-ferrous metals, but the aluminium ceiling is not spelled out. Ask yourself whether that matters. For most users the answer is no, because the practical limit is usually how much heat you can control rather than the machine’s rating.
Who this TIG welder for aluminum suits
This suits a beginner who wants the full set of aluminum controls on the front panel and a readable screen to learn from. Experienced TIG welders moving from a DC machine also tend to land here, because the AC balance and frequency adjustments are the first controls they reach for.
It is also a strong choice for someone who works in a garage without a dedicated 220V circuit, because the automatic dual voltage removes the question entirely. The pulse controls make it a good fit for thin aluminum sheet, where heat control is the whole game.
Where it falls short
The 40% duty cycle at full output is the clearest limitation. Run it hard on 1/4 inch aluminum plate for an hour straight and the thermal protection will ask for a break. Plan for that, or step down to 150A for production work.
The 61.8 pound chassis is also among the heavier machines in this group, which matters if you plan to move it between the garage and a job site regularly. And with no published aluminum thickness ceiling, you are buying on feature set and reviews rather than on a hard material limit.

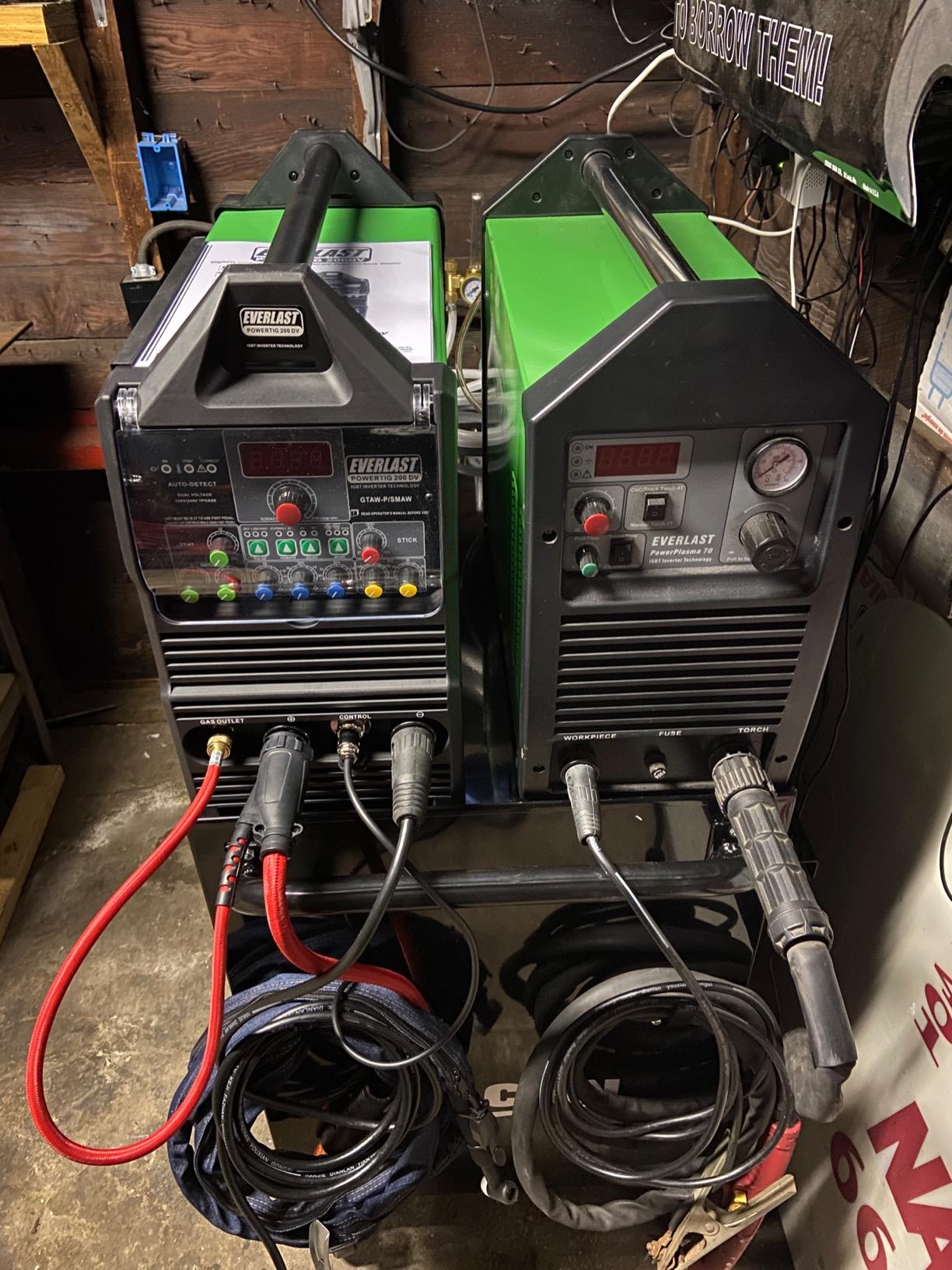

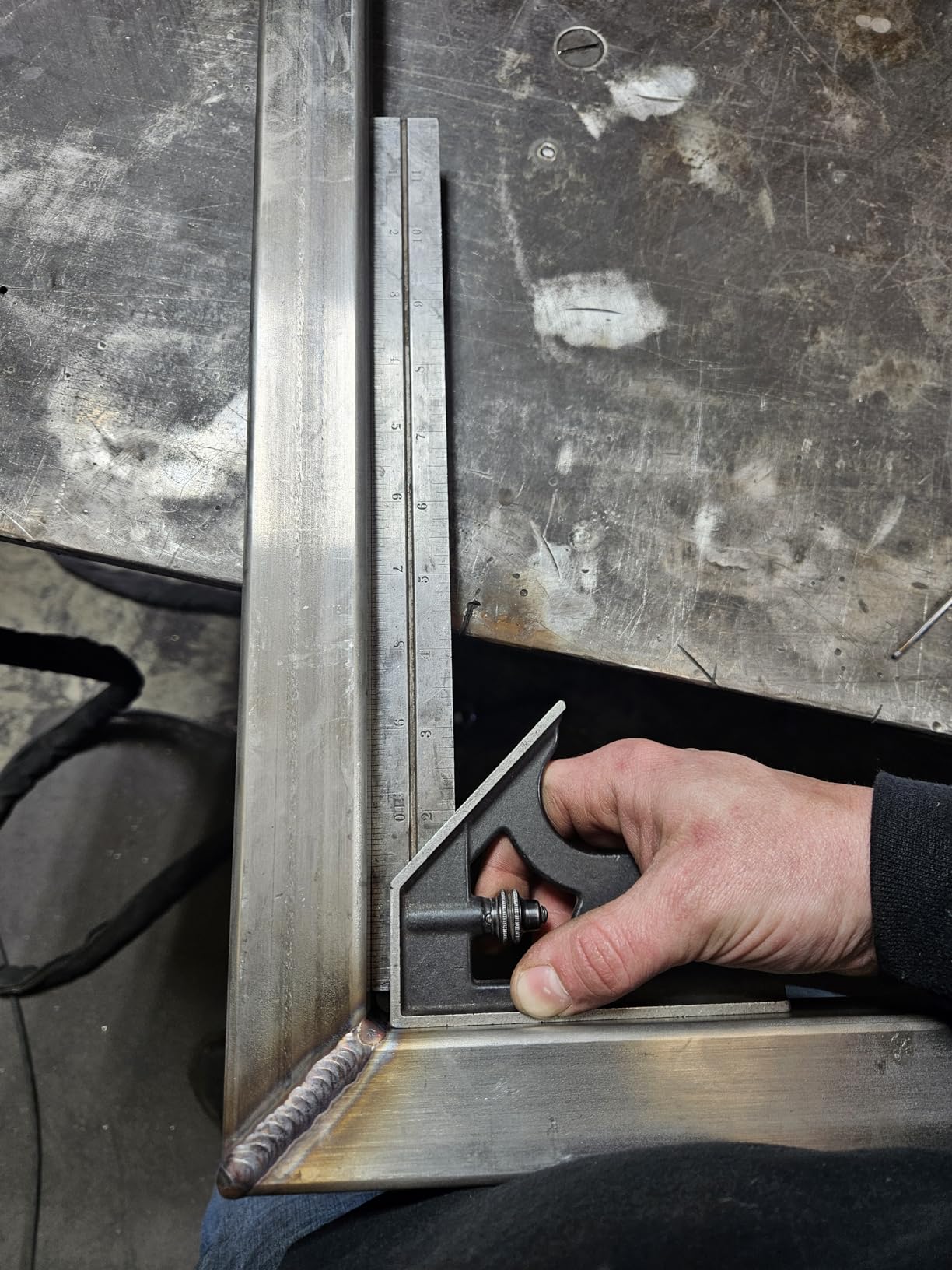

3. Everlast PowerTIG 200DV – Best for Very Thin Aluminum
New Everlast PowerTIG 200DV 110/220 Dual Voltage 200amp Pulse ACDC Welder
200 amp AC/DC pulse TIG
5 amp DC and 20 amp AC start
Lift start plus HF start
Pre/post flow gas
Pros
- 5 amp DC start current suits very thin material
- Lift start lets you skip high frequency start
- Pre-flow and post-flow gas control
- Arc Force helps reduce spatter
- Dual voltage for garage or shop
Cons
- 20 amp AC start floor is much higher than the DC figure
- 60 pound chassis is a two-person lift for some
- Analog panel with fewer pulse parameters than digital machines
Thin aluminum is where most machines let you down, and the PowerTIG 200DV attacks that problem directly. It will start an arc in DC TIG as low as 5 amps, and as low as 20 amps on AC. That low floor is the specification that decides whether you can weld a lid from a food container or a piece of trim without destroying it.
It is also one of the few machines here with a lift start function in addition to high frequency start. Lift Start means you make contact with the tungsten, press the electrode into the work, and the arc strikes mechanically, with no high frequency burst. Owners who work indoors or near people who dislike the electronic start sound rate it as a genuine practical advantage.
With 116 reviews at 4.6 stars and 83 percent five-star ratings, the feedback is consistent. Reviewers point to stable inverter performance, flexible dual-voltage use and the low start threshold suited to thin-gauge and delicate work.
The technical profile is a 200 amp AC/DC pulse TIG with 120V and 240V dual voltage capability built on IGBT inverter technology. It measures 9 by 24 by 17 inches and weighs 60 pounds. Pre-flow and post-flow gas control both adjust, which matters more on thin aluminum than most buyers realise: post-flow keeps the shielding gas over the hot, still-glowing puddle while it cools enough to stop oxidising.
Arc Force, which Everlast calls DIG, reduces spatter in the DC TIG mode. On aluminum you will spend most of your time in AC, so treat it as a bonus for the stainless and mild steel work that shares the machine.
The tradeoff for the low AC start current is straightforward. A 20 amp floor on AC is workable for thin material but it is not a hair-trigger, and it is noticeably higher than the 5 amp DC figure printed right beside it on the spec sheet. If your work is genuinely sub-thousandth-inch aluminum, look at a machine that advertises a low AC start current instead.
Who this TIG welder for aluminum suits
This suits someone whose work lives in the thin end of the range: sheet metal fabrication, trim and flashing, heat exchanger work and repair of thin-gauge parts. It also suits anyone who welds indoors where a loud high frequency start is a recurring complaint from family or neighbours.
Because it is dual voltage, it works in a home garage on 110V for light aluminum work and steps up to 220V for plate. The gas flow controls and lift start make it a comfortable machine for someone who is already comfortable holding a TIG torch and simply wants more control at the low end.
Where it falls short
The 60 pound chassis is heavy, and the machine is not especially compact at 24 inches wide. If you need to carry it into a boat hull or up a trailer ramp regularly, this is not the pick.
The control panel is analog with an adjustable pulse rate rather than the full digital parameter set the Weldpro and ARCCAPTAIN offer. There is no memory storage, so if you have found a perfect setting for a specific job you will be dialling it in again. And at 116 reviews the long-term track record is thinner than the machines above it.
4. LOTOS TIG200ACDC – Best Budget Machine That Truly Does AC
LOTOS TIG200ACDC 200A AC/DC Aluminum Tig Welder with DC Stick/Arc Welder, Square Wave Inverter with Foot Pedal and Argon Regulator 110/220V Dual Voltage Brown
200A AC square wave
10-200A TIG output
110/220V auto dual voltage
Regulator and foot pedal included
Pros
- Square wave AC cleans aluminum oxide effectively
- Torch
- foot pedal and argon regulator all included
- Automatic dual voltage and dual frequency switching
- Complete package for a first aluminum machine
Cons
- High frequency start only
- with no lift start option listed
- Included torch and regulator are entry-level
- 28 inch deep chassis takes up real bench space
There is a reason budget TIG machines get dismissed. Most of them are DC-only, or their AC mode is nominal. The LOTOS TIG200ACDC is a genuine exception: a 200 amp AC square wave inverter with 10 to 200 amp TIG output and 15 to 200 amp DC stick output, and it has been in the market since 2012, which shows in the volume of owner feedback.
At 278 reviews and a 4.4 star average with around 70 percent five-star ratings, this is the machine that proves the low end of the market can weld aluminum properly. Reviewers repeatedly credit the square wave AC performance on aluminum and the fact that a torch, foot pedal and argon regulator are all in the box.
The package is unusually complete. You get the power supply, TIG torch, MMA clamp, foot pedal, argon regulator, pigtail converter, ground clamp, a consumable set and a manual. The warranty story is better than most at this level too, with a 30 day money-back guarantee, a 1 year replacement warranty and a limited 3 year warranty with registration.
Technical details: 200A AC square wave inverter, 10-200 amp AC/DC TIG output at 80% power efficiency, and advanced IGBT cooling. It handles automatic dual voltage and dual frequency across 110/120V and 220/240V at 50/60Hz, so it works in most of the world without a transformer. High frequency start is controlled from the hand torch and heat from the foot pedal.
It weighs 37 pounds and measures 28 by 13 by 17 inches. That 28 inch depth is the one physical annoyance in an otherwise compact package, and it is a consequence of the accessory storage the machine ships with. It is not a machine you will carry up a set of boat stairs.
The honest limit is the torch and regulator. Both are functional and included, but they are not the same hardware as the CK Worldwide Superflex torch on the PRIMEWELD or the Nova Rotaflex on the AHP. Budget them as consumables you may replace within a couple of years, and the machine itself remains a sound entry point.
Who this TIG welder for aluminum suits
This suits a first-time TIG buyer who wants AC capability and a complete box without spending professional money. It is a good match for a hobbyist welding aluminum trailers, gas tanks, mower decks or general repair work a few hours a month.
It also makes sense for anyone who needs a second machine for aluminum in a separate shop location. Two lower-cost units in two places is a legitimate answer to a machine you cannot move, and the automatic dual voltage means both locations can be on ordinary circuits.
Where it falls short
There is no lift start listed, so arc initiation is high frequency only. In a small enclosed workshop that is the difference between welding quietly and getting asked about it.
The included torch and regulator are entry-level, and the 28 inch chassis is among the deepest bodies in this roundup. The 3 year warranty is conditional on registration, and parts availability for a lesser-known brand is worth checking against your local repair options before you commit.
5. ARCCAPTAIN TIG200P – Most Control Over Aluminum Oxide Cleaning
ARCCAPTAIN TIG Welder AC/DC 200A with Pulse 7 in 1 Aluminum Welding Machine
7 in 1 AC/DC multiprocess
Square and triangular AC
Aluminum 0.02 to 0.20 inch
26.5 lb body
Pros
- Square and triangular AC waveforms for real heat control
- Full MCU adjustment including AC balance and AC frequency
- On-demand cooling fan stays quiet when idle
- 26.5 pound body is easy to carry
- Spot TIG plus 2T and 4T trigger modes
Cons
- Foot pedal sold separately with a proprietary aviation connector
- Some machines arrived with cracked gas connections or sliced power cords
- Ground clamp reported to overheat at higher amperage
Most AC TIG machines give you a cleaning percentage dial and stop there. The ARCCAPTAIN TIG200P gives you the waveform itself. Seven modes cover DC TIG, DC pulse TIG, AC TIG, AC pulse TIG, AC pulse TIG with square wave, AC pulse TIG with triangular wave, stick, and spot TIG. That square versus triangular choice is the real reason to consider this machine over its cheaper siblings.
Square wave spends more time in the cleaning half-cycle, which scours the oxide layer harder. Triangular wave spends more time in the penetration half-cycle and moves heat deeper into the work. On a thick aluminum tank or a heat exchanger that wants penetration, triangular is easier to get a bead on. On thin material that you are trying not to melt through, square with a lower cleaning percentage is often the more controllable combination.
At 242 reviews and a 4.3 star average, the machine is well used. Owners and professional fabricators alike report a smooth, stable arc and clean aluminum results, and the 26.5 pound body is the lightest machine body listed in this roundup.
The manufacturer rates it for aluminum from 0.5 to 5mm, which is 0.02 to 0.20 inch, and other metals from 0.5 to 10mm. Adjustment runs through an MCU digital control covering pre-flow, initial current, upslope, peak current, base current, downslope, crater current, post-flow, pulse duty, AC frequency, AC balance and pulse frequency. Crater fill and adjustable upslope and downslope are the two parameters that most visibly improve bead appearance, and having them here puts it ahead of several machines in this list.
Weight is listed as 42.7 pounds in the shipping specification and 12kg, or 26.5 pounds, for the machine itself. The box measures 21.5 by 17 by 14 inches. The on-demand cooling fan is a real quality-of-life improvement over machines that run their fans continuously, particularly during long setup and grinding time between welds.
The rating spread is the thing to watch here. Roughly 70 percent of reviews are five-star, but there is a meaningful cluster of three-star feedback, and the complaints are consistent rather than random: proprietary foot pedal connector sold separately, some machines arriving with cracked gas connections or sliced power cords, and a ground clamp reported to overheat at higher amperage. Inspect the machine on arrival and plan on a better ground clamp.
Who this TIG welder for aluminum suits
This suits someone who already understands TIG and wants the controls a welding engineer would recognise. The waveform choice, crater fill and full ramp control matter most to people doing production aluminium work, prototype fabrication and repair where bead consistency is judged.
Beginners do fine with it too, because the large LED parameter screen and a clear menu structure make it one of the more learnable digital machines. If your work spans thin sheet through 1/4 inch plate, the 0.02 to 0.20 inch rated range is an honest and useful figure to plan against.
Where it falls short
The foot pedal is sold separately and uses a proprietary XS12 aviation connector, which means you cannot substitute a standard pedal and you cannot easily replace the connector if it fails. Budget for the pedal as part of the purchase.
Quality control on arrival is the other weak point, and a foot clamp that overheats is a safety matter rather than a nuisance. Warranty support has also been described as unresponsive by some buyers, so register the machine and keep the serial number somewhere you will find it.
6. Sunstac TIG-250 – Best for Spot Welding and Repeat Settings
Sunstac 250A Aluminum TIG Welder with Pulse ACDC Foot Pedal Control
250A AC/DC pulse TIG
Aluminum to 4mm at 110V, 6mm at 220V
Helmet-readable LCD
Parameter memory
Pros
- LCD screen readable through a welding helmet
- Parameter memory restores previous settings
- AC and DC spot modes for repeat welds
- 29.8 pound body is easy to move
- 110V and 220V dual voltage
Cons
- Manufacturer states AC mode current readings are not accurate
- Foot pedal is not included
- Aluminum rating tops out at 4mm on 110V
The Sunstac TIG-250 is built around a feature most machines at this level treat as an afterthought: spot welding in both AC and DC, plus a memory function that stores your welding parameters and restores them. For anyone doing repeat work, welding the same bracket fifty times, that combination removes more setup time than a higher headline amperage would add.
It runs seven modes including high frequency AC, high frequency DC, pulsed AC, pulsed DC, AC spot, DC spot and stick. The LCD screen shows voltage, current and other settings and is designed to be read through a welding helmet, which removes the flip-up-and-guess cycle at the start of every bead.
Where it earns its place is output. Up to 250 amps on 110 and 220 volts, with the manufacturer rating maximum aluminum thickness at 5/32 inch, or 4mm, on 110V and 6mm on 220V. At 29.8 pounds and 19 by 15.5 by 12.3 inches, it is also one of the more portable machines in this roundup.
Technical details include 2T, 4T and spot TIG modes plus foot pedal remote control, with work clamp and electrode holder cables measuring 118 inches rated to 300A. The long leads are a real convenience on a trailer or a boat where the machine stays in the truck bed.
Now the honesty part, and it comes from the manufacturer rather than from reviewers. The listing notes that AC mode current measurement is not accurate. That means the amperage you read on the screen in AC is an approximation, so you calibrate by ear and by the look of the puddle rather than by the number. On a machine where you are dialing 60 amps for 1/16 inch aluminum, that is a meaningful disadvantage and it is worth knowing before you buy.
The rating distribution also spreads wider than most here. At 4.1 stars across 145 reviews, around 15 percent are one-star. The foot pedal is not included, so the machine ships without the control you will use most for aluminum TIG work.
Who this TIG welder for aluminum suits
This suits production-style repeat work: tab joints, spot welds for tacking before a final pass, and any job where the same material thickness recurs. The parameter memory means you set a material once rather than every time you return to it.
It also suits a welder who works through a welding helmet and prefers not to break the seal to check a readout. And at 29.8 pounds with long 118 inch leads, it moves between a bench and a job site more easily than most machines in this list.
Where it falls short
The AC current readout is the significant one, and it is a manufacturer acknowledgement rather than a defect we inferred. If precise amperage control on aluminum is central to your work, choose a machine with a reliable AC meter.
The aluminum rating of 4mm on 110V is modest, and the foot pedal is sold separately. A 4.1 star average with a 15 percent one-star share also suggests more unit-to-unit variation than the machines rated above 4.5.

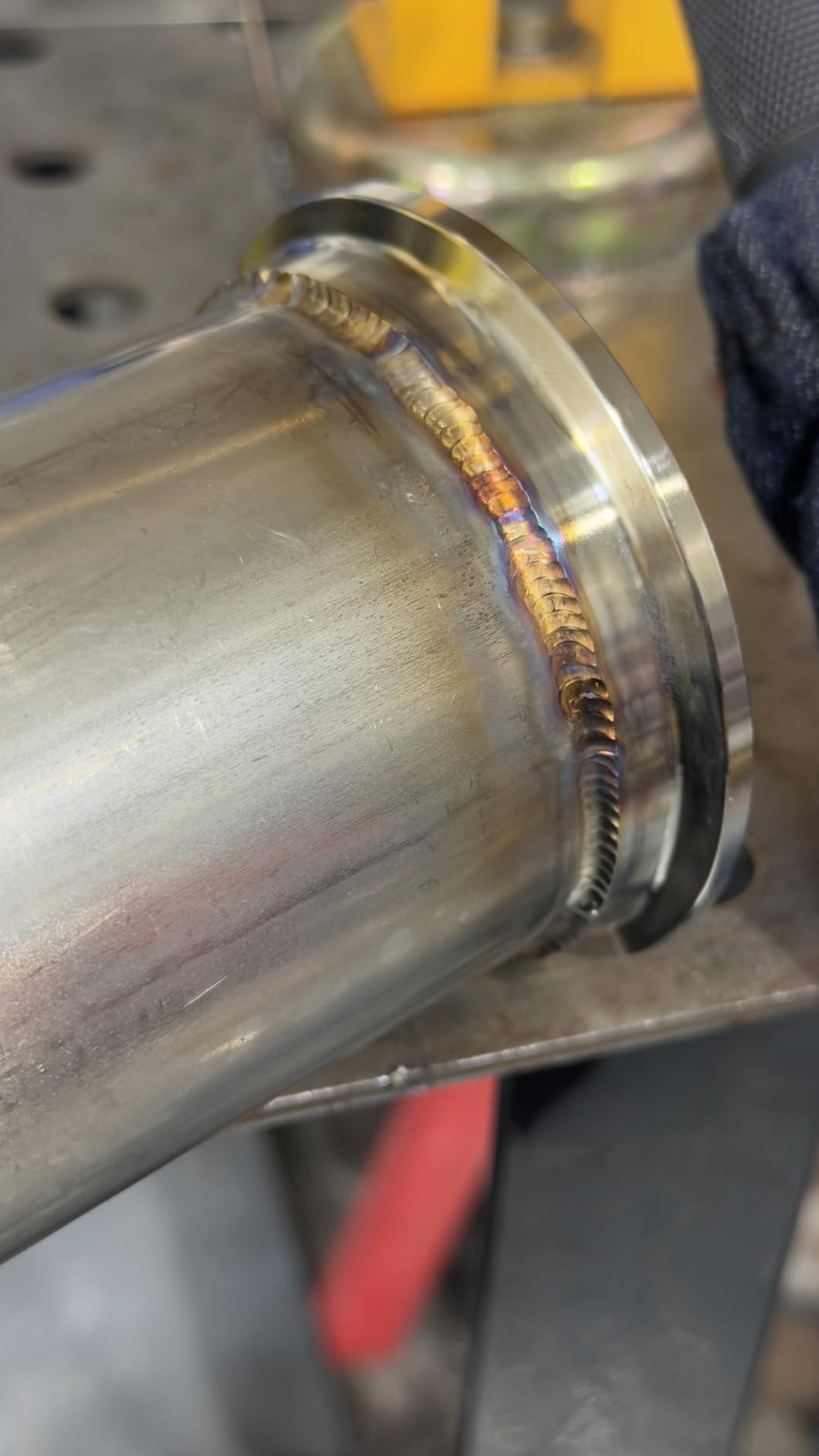

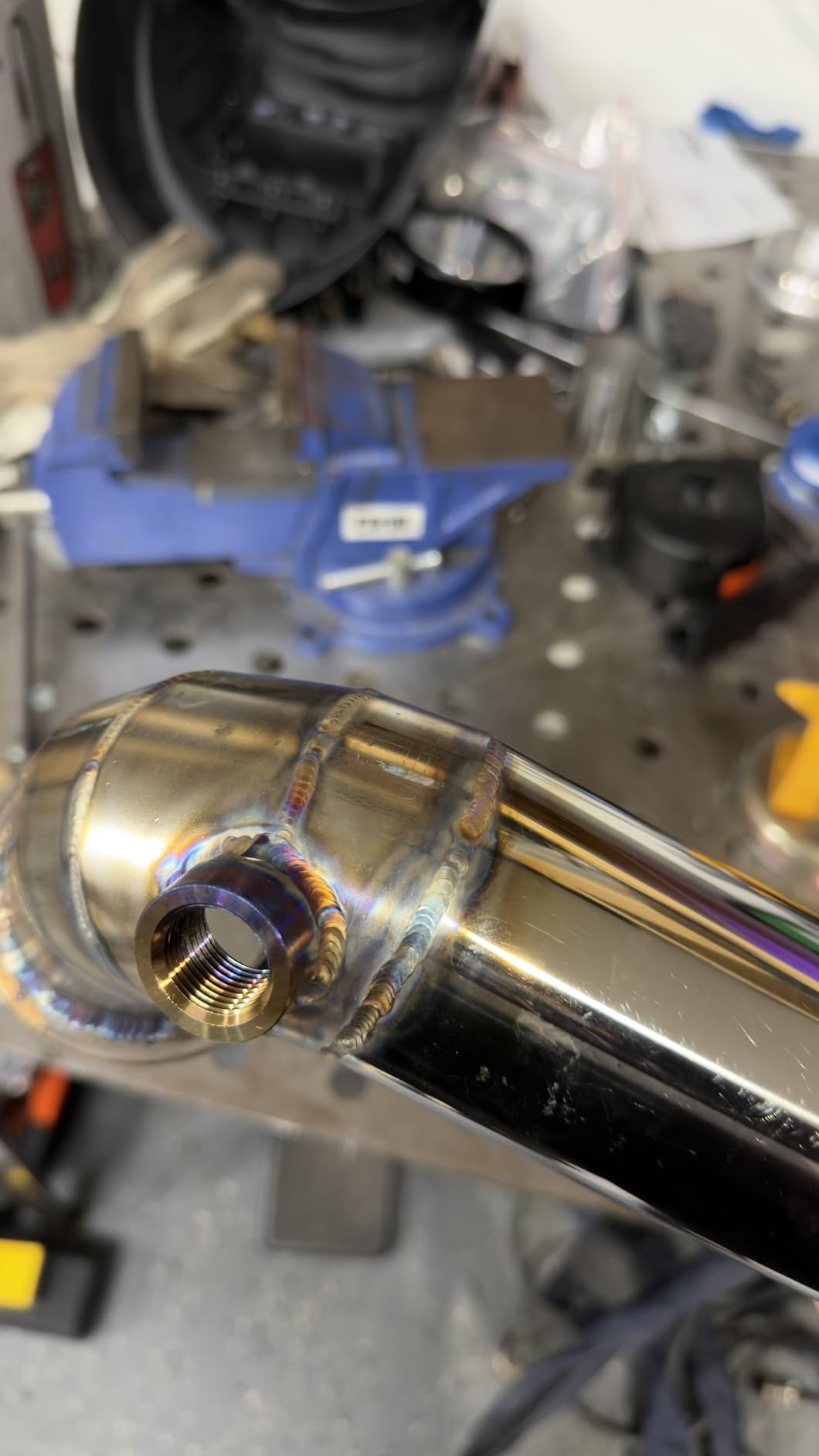

7. Everlast PowerTIG 210EXT – Best Advanced Pulse for Thin Aluminum
Everlast PowerTIG 210EXT 210Amp Ac Dc Tig Stick Advance Pulse Welder 110/220 Volt Inverter-Based IGBT Technology
210A AC/DC TIG and stick
Three AC waveforms
Advanced Pulse AC mode
Nine program memory
Pros
- Three selectable AC waveforms for aluminum work
- Advanced Pulse AC mode tuned for thin material
- Programmable memory for up to nine programs
- Fan-on-demand cooling keeps it quiet when idle
- HV start managed with no point gap to maintain
Cons
- 60 pound chassis is heavy to move
- Three waveforms and nine memory slots add a learning curve
- No manufacturer-claimed maximum aluminum thickness published
The PowerTIG 210EXT is the most refined aluminum machine here on waveform selection. It offers three AC forms: triangular wave, advanced square wave and soft square wave. Where the ARCCAPTAIN gives you two shapes, this gives you three distinct tools for three different behaviors on the puddle.
The headline feature is Advanced Pulse, an AC pulse mode specifically tuned for thin material work. The manufacturer states it increases travel speed and reduces warping, which is the correct goal for aluminium sheet. Warping is the failure mode that ends most attempts at thin aluminum TIG: the puddle melts through, the metal contracts, and the panel distorts.
Microprocessor control handles parameter management, and there is programmable memory for up to nine programs. In practice that means you set up a program for 1/16 inch aluminium with 2/32 inch filler, and it is available instantly the next time. Reviewers at 4.6 stars across 64 reviews single out the advanced pulse, the waveform selection and the programmable memory.
Other technical details worth knowing: fan-on-demand cooling that starts with the arc and stops when it is not needed, optional finger amp control torch, and programmable stick functions including hot start time, hot start intensity and arc force control. HV start or lift arc is available in both AC and DC modes, and the HV start is electronically managed with no point gap to maintain, which is a smoother version of the same idea.
The machine weighs 60 pounds and measures 24 by 9 by 17 inches on a 110/220 volt IGBT inverter platform. It dates from 2014, which is worth noting in one respect only: the pulse and waveform features are genuinely advanced, and they predate most of the digital machines in this roundup.
The cost of all this refinement is a learning curve and a carry weight. Three waveforms, nine memory programs and programmable stick functions mean a controls panel that rewards an afternoon of reading the manual before your first bead.
Who this TIG welder for aluminum suits
This suits a serious hobbyist or fabricator whose work is dominated by thin aluminum: heat exchanger fins, ducting, shrouds, panels and any application where warping is the enemy. Advanced Pulse was built for exactly that problem.
It also suits anyone who values an inbuilt path to repeatability. Nine stored programs, three waveforms and a finger amp torch option is a machine that rewards setting things up once and welding many. A shop welding mixed stainless and aluminium will use the programmable stick functions as much as the TIG settings.
Where it falls short
At 64 reviews the volume of owner feedback is among the smallest of the well-regarded machines here, so you are buying on engineering specification rather than a large body of long-term reports. The manufacturer does not publish a maximum aluminum thickness figure, which makes planning around a hard material limit harder.
The 60 pound weight and the depth of the panel are the other tradeoffs. If you are new to TIG and want a machine you will understand in an afternoon, the Weldpro or the LOTOS is a gentler starting point.
8. Everlast PowerPro 205Si – Best for a Small Shop That Also Cuts Steel
Everlast PowerPro 205Si 200amp AC DC TIG 50a Plasma Cutter Multi Process Welder PP205si
200A AC/DC pulse TIG
50A plasma cutter built in
Cuts steel to 5/8 inch
22 x 9 x 17 inch chassis
Pros
- TIG
- stick and 50 amp plasma cutting in one unit
- Stable arc with effective high frequency start
- Pulse and ramp settings held up on long aluminum runs
- Compact footprint for a small home or job shop
- Service department resolved transit damage quickly
Cons
- Supplied clear air hose and O-rings are weak points
- Factory crimped fittings can leak under pressure
- Connections must be swapped between cutting and welding
At 4.8 stars from 44 reviews, this is one of the two highest-rated machines in the roundup, and the reviews behind that number come from experienced fabricators rather than first-week buyers. They describe a very stable arc, an effective high frequency start, and pulse and ramp settings that held up over long production runs of aluminium couplers.
What sets it apart is the integrated 50 amp plasma cutter. A 200 amp AC/DC pulse TIG, a 200 amp stick welder and a 50 amp plasma cutter in one 22 by 9 by 17 inch chassis means a small shop can cut 5/8 inch steel, reach 3/4 inch under ideal conditions, and still have a machine that welds aluminium, without a second power source taking up floor space.
Duty cycle, over-current and air pressure indicator lights are on the front panel, which matters on a multiprocess unit where a failed air supply or an over-current condition should stop the job rather than surprise you. It weighs 60 pounds and is built around Infineon IGBT modules for consistent inverter performance across all three processes.
The documented weakness is the air plumbing. Clear plastic air hoses and factory crimped fittings are reported to leak under pressure, and the supplied clear hose and O-rings are named as weak points that may need replacing. For a shop that cuts regularly, budgeting for a proper hose and a re-crimped fitting early is sensible advice.
The other practical note is that connections must be swapped when switching between cutting and welding. That is inherent to combining the processes in one unit and is a thirty second change, but it is a change. Owners also mention that Everlast’s service department resolved transit damage quickly, which matters given the fragility of a plasma cutting unit in transit.
With 44 reviews the sample is small, so treat the 4.8 star figure as encouraging rather than conclusive. The specification is among the most complete in this roundup, and the plasma capability is a real operational saving rather than a novelty.
Who this TIG welder for aluminum suits
This suits a small shop, a garage fabricator or a mobile repair business that cuts steel and tube as well as welding aluminium. A separate plasma cutter is a significant additional purchase and another machine to store, so the saving here is real.
It is also a good fit for someone who appreciates a brand with a genuine service department and a support structure, rather than an unbranded import. The indicator lights for duty cycle, over-current and air pressure suit an operator who wants the machine to tell them when a condition is wrong.
Where it falls short
The air hose and O-ring quality is the concrete flaw, and it appears consistently in reviews. Expect to replace the consumable air plumbing once and crimp it properly.
The 44 review count is small for a machine at this level, and the 60 pound weight is unchanged despite the compact footprint. If you do not need the plasma cutter, the extra capability is weight you are carrying and complexity you are maintaining.
9. TOOLIOM 6-in-1 AC/DC – Lightest Way Into Aluminum Welding
TOOLIOM 6-in-1 AC/DC TIG Welder with Pulse, 110V/220V Dual Voltage
6 in 1 AC/DC pulse TIG
With spot TIG mode
3mm aluminum at 110V, 5mm at 220V
27.9 lb body
Pros
- Six-in-one mode coverage including spot TIG
- One of the two most portable machines here at 27.9 pounds
- Large digital display shows mode
- voltage and current
- Welds aluminum
- alloy steel
- copper
- stainless and carbon steel
Cons
- Foot pedal is not included
- 17 percent one-star rating suggests unit-to-unit variation
- Aluminum rating of 1/8 inch at 110V is the most limited here
At 27.9 pounds the TOOLIOM 6-in-1 is one of the two most portable machines in this roundup, and it is among the easiest to carry up into a boat hull, onto a roof or across a job site. It covers six welding modes: AC TIG, DC TIG, AC pulsed TIG, DC pulsed TIG, stick and TIG spot welding.
The rated aluminum capability is 1/8 inch, or 3mm, on 110V and 3/16 inch, or 5mm, on 220V. That is a modest ceiling, so this is a thin-to-medium material machine rather than a plate machine. It is also foot pedal compatible for remote start, stop and amperage control, though the pedal is not in the box.
It runs a software controlled square wave AC/DC TIG inverter with IGBT technology and a fish-scale waveform, and the large digital display shows mode, voltage and current. The manufacturer lists aluminum, alloy steel, copper, stainless steel, carbon steel and iron among the weldable materials.
The 4.1 star average comes from 32 reviews, with 65 percent five-star and 17 percent one-star. The one-star share is the story here: it is the highest proportion in the roundup, and combined with the small sample it points to more variation between individual machines than the higher-rated products. Treat the first session as an inspection and set up the machine carefully.
Dimensions are listed as 10 by 2 by 50 inches, which is a flat-packed shipping measurement rather than the assembled footprint. The listed weight of 27.9 pounds is the realistic transport figure and the reason this machine is so easy to move.
There is a sensible argument for this machine despite the rating. It gives you genuine AC TIG with square wave output, spot welding and dual voltage for a first aluminum project, and it does so in a package you can carry with one hand. If the work stays at thin material and in a location you cannot reach with a 60 pound machine, the portability is not a minor feature.
Who this TIG welder for aluminum suits
This suits someone who welds aluminium in awkward places. Boat hulls, trailer frames, ladders, roof-mounted equipment and staircases are all situations where a 60 pound machine is a problem and a 27.9 pound machine is not.
It also suits a complete beginner who wants the lowest commitment way to find out whether they enjoy TIG work. Six modes including spot TIG give you a lot to explore, and if the hobby does not stick you have lost very little.
Where it falls short
The 1/8 inch aluminum rating on 110V is the most limited in this roundup, and it is the constraint most likely to end the machine’s usefulness first. Plan on running it on 220V if you have the circuit.
The foot pedal is not included, quality varies more between units than most machines here, and there is no manufacturer-published duty cycle figure to plan production work around. For anyone moving past thin material, step up to the LOTOS or the Weldpro instead.
10. AHP AlphaTIG 203Xi – Best Support and Warranty in the Range
NEW 2024 AHP AlphaTIG 203Xi Amp IGBT AC DC Tig/Stick Welder with PULSE 110/220v 3 YEARS WARRANTY
200+ amp AC/DC TIG
1/4 inch aluminum capacity
Nova Rotaflex 9/17 torch
3 year warranty
Pros
- Very high duty cycle for sustained aluminum work
- Analog knobs are easy to dial in without menus
- Nova Rotaflex 9/17 torch with a light flexible hose
- Three year warranty with responsive support
- Works on 120V with the included adapter
Cons
- Digital readout does not match the knob setting on 120V
- No amperage limiting on 120V so breakers can trip
- 10 amp minimum TIG current is restrictive on very thin material
The AHP AlphaTIG has been in production since 2013 and has been through several revisions, including a 2024 update that added an electronic solid-state high voltage start with no point gap to maintain. At 603 reviews and 4.6 stars it is among the most validated machines in this roundup, and the review base is deep enough to show how it behaves over years rather than weeks.
It is rated for 1/4 inch aluminum and 3/8 inch mild steel on AC/DC TIG and stick output with pulse, on 110 or 220 volts, welds 7018 and 6013 electrodes, and uses an IGBT inverter with PWM control. The most consistently praised feature across the reviews is duty cycle, described as among the best in this price range.
The box is unusually well equipped: a 240V to 120V plug adapter, a 250A stick electrode holder, a basic consumable kit, a floating ball type billet brass argon regulator, a Nova foot pedal with a 25 foot cord, a Nova Rotaflex 9/17 TIG torch with a 12.5 foot hose and 9mm quick connect, and a work clamp. Support is repeatedly described as responsive, and AHP has replaced panels and parts for owners directly.
It is also one of only two machines here with a stated three year warranty, which matters more than buyers expect. Service on a lesser-known brand can mean shipping a machine across the country and waiting, and a three year term with an established parts channel removes a real risk.
The thread on Reddit asking for a budget TIG that can handle aluminium repeatedly names the AHP AlphaTIG line as the recommendation, specifically because it does both TIG and stick and has a solid reputation on aluminium. That is a long-standing community answer rather than a recent one.
The 120V weaknesses are the most useful thing to know before buying. Owners report that the digital readout does not match the knob setting on 120V operation, and that the machine does not limit amperage on 120V, so a breaker can trip if you run it hot. Owners confirm it is workable on 120V with the included adapter and a 12 gauge extension cord, but you need to know the limits before you set up.
Who this TIG welder for aluminum suits
This suits a garage welder who wants a warranty they can rely on and a support line that answers. For a first machine that will live in a home garage for a decade, the three year term and the replacement parts history are worth more than a slightly longer feature list.
It also suits people who prefer analog knobs. There is no menu to navigate and no mode sequence to memorise, which is a genuine advantage for anyone who finds digital interfaces fiddly with gloves on. The high duty cycle suits extended aluminium sessions without thermal breaks.
Where it falls short
The 120V readout mismatch and the lack of amperage limiting are the two documented problems, and both relate to running the machine hot on a household circuit. A high visibility LCD screen that disagrees with the knob is confusing when you are learning to trust your settings.
The 10 amp minimum TIG current is restrictive on very thin material compared with the Everlast 200DV, and the ground clamp is reported to have a cheap copper connection that breaks loose quickly. The machine weighs 69 pounds, the heaviest in this roundup, and the instruction manual is sparse.
How to Choose a TIG Welder for Aluminum
Aluminum is the least forgiving material most hobby welders touch. It conducts heat along and away from the puddle faster than steel, its oxide layer reforms almost instantly in air, and the thermal conductivity means heat you add ends up leaving through the clamp. Choose the machine on the following five things, in this order.
AC output, without exception
Aluminum’s oxide layer melts at a much higher temperature than the metal underneath it. A DC TIG machine melts the base metal and leaves the oxide sitting on the puddle, which is why aluminium beads either refuse to fuse or float on top of a grey film. AC current alternates polarity, and the electrode-positive half-cycle scrubs the oxide away while the electrode-negative half-cycle drives heat into the work.
Every machine in this roundup has genuine AC output. Many cheaper machines sold as TIG welders do not, and the sales copy often does not make that clear. If a listing gives you a maximum amperage but never mentions AC, assume it is DC only and will not weld aluminium.
High frequency start, and a low minimum amperage
High frequency start strikes the arc without touching the tungsten to the work, which is what you want on aluminium because contact can contaminate the electrode and the puddle. A lift start option is a quiet alternative for indoor work. Beyond that, look at the minimum output: a machine that starts at 20 amps cannot weld very thin material no matter what its maximum output is.
Pulse control for heat input
Pulse TIG cycles the current rapidly between a peak and a base value. The average is lower than the peak, and the puddle gets time to cool between cycles, which is what lets you weld thin aluminium without burning through. Experienced MIG welders hunting for a first TIG machine in a Facebook welding group consistently ask about the 200 amp dual voltage class specifically for 1/8 to 1/4 inch aluminium work, and pulse is the feature that answers their question.
Extra depth in pulse parameters, such as adjustable upslope, downslope, peak and base current, crater fill and 2T or 4T triggering, is what separates a machine you can learn on from a machine you can produce with. The ARCCAPTAIN and the Everlast 210EXT go furthest here, and the Weldpro sits in the middle.
Real AC amperage rather than headline amperage
This is the single most common source of disappointment. A machine advertising 200 amps is often quoting its DC or stick output, while the usable AC figure is lower. Compare the AC rating specifically. The PRIMEWELD is rated for 1/4 inch aluminium, the Weldpro and AHP are also rated for 1/4 inch, the ARCCAPTAIN for 0.20 inch, and the TOOLIOM for 3/16 inch at 220V. Those are the numbers to plan a project against.
Duty cycle and what else is in the box
Duty cycle is the percentage of a ten minute cycle you can weld at the rated output before the thermal protection intervenes. The Weldpro publishes 40% at full 200A. AHP’s is described by owners as among the best in this range, and the Everlast’s fan-on-demand design keeps it cool between welds. For intermittent garage work the difference is minor. For long aluminium sessions it decides whether you are welding or waiting.
Then check the box contents, because this is where the real cost of a machine hides. A foot pedal, an argon regulator and a gas flow meter are not optional extras on aluminium, and several machines here do not include them. If you also need a stick machine for structural work, our stick welder roundup covers the other side of that decision.
How Thick Aluminum Can You Weld?
Short answer: a 200 amp machine handles roughly 1/8 inch comfortably and 1/4 inch with room to spare, and going thicker needs a bigger machine or more passes. Real-world owner reports follow the same pattern. A welder on a welding forum described a 210 amp Hobart comfortably welding 1/8 to 1/2 inch aluminium while adding that it will not work for pop can thin material, which is the honest limit almost every machine shares.
Here is what the machines in this roundup are actually rated for, using manufacturer figures only.
TOOLIOM 6-in-1 – 3mm, or 1/8 inch, at 110V and 5mm, or 3/16 inch, at 220V.
Sunstac TIG-250 – 4mm, or 5/32 inch, at 110V and 6mm, or 6/25 inch, at 220V.
ARCCAPTAIN TIG200P – 0.5 to 5mm aluminium, which is 0.02 to 0.20 inch, with other metals to 10mm.
PRIMEWELD TIG225X – 1/4 inch aluminium, alongside 3/8 inch mild steel.
AHP AlphaTIG 203Xi – 1/4 inch aluminium, alongside 3/8 inch mild steel.
Two useful rules for reading those figures. First, a 200 amp class machine at the 1/4 inch rating is being pushed; you will want stringer beads, a good AC balance setting and a filler rod matched to the alloy. Second, thickness above the rating is a matter of passes and patience, not failure, as long as you accept that the heat has to go somewhere.
For thin material the constraint reverses. Below about 1/16 inch, the limiting factor is amperage resolution at the bottom of the range, which is why a machine that starts at 5 amps beats one that starts at 20 even though both reach 200.
110V vs 220V: Which One Do You Actually Need?
Almost every machine here runs on both, and most of them switch automatically. The question is not whether the machine can do 220V. It is whether your house can support it.
A 200 amp welder draws far more than a household 15A or 20A circuit allows, which is why the AHP owners report tripped breakers on 120V and why that machine does not limit its amperage on 120V. The machine will happily try to draw what you ask for, and the circuit decides otherwise.
The practical rules are these. On 110V, plan on working below roughly half of the headline output, and check whether your extension cord is 12 gauge or heavier. On 220V, use a dedicated circuit with a properly rated breaker and run the machine directly rather than through a long extension. The Facebook group discussion of the 200 amp dual voltage class for 1/8 to 1/4 inch aluminium is really a discussion of this exact problem: the class works, provided the circuit is there.
Check the 110V output figure rather than assuming it matches the 220V one. A 225 amp machine on 110V is not a 225 amp machine. And if a listing gives you one number for both voltages, treat the 110V figure as lower than stated.
AC Balance and Cleaning Percentage, Explained
Almost no competitor explains what this dial does, and it is the setting that decides whether an aluminium weld looks good. AC balance, sometimes called cleaning percentage, controls what proportion of each AC cycle is electrode positive. Electrode positive is the scrubbing half that removes oxide. Electrode negative is the penetrating half that drives heat into the work.
More cleaning means a brighter, more aggressively scrubbed bead and a wider bead. Less cleaning means a narrower bead with deeper penetration and more heat pushed into the metal. For thin aluminium and stainless you reduce cleaning, because too much electrode-positive time means excess heat in a narrow puddle and a burn-through risk. For thick aluminium and magnesium you increase it, because oxide removal becomes the limiting factor.
Start near the middle of the range on 1/8 inch aluminium, then move the dial until the puddle is bright and the oxide film disappears. If the bead is dim, grey and dirty, move toward more cleaning. If the puddle is violent and the edges melt back, move toward less. The ARCCAPTAIN’s square and triangular waveform options interact with this dial, and understanding both is what turns a first aluminium weld into a repeatable one.
Tungsten Selection and Consumables for Aluminum
Start on 2/32 inch lanthanated tungsten for 110V machines and 3/32 inch for 220V machines running 1/8 inch and thicker. Zirconiated tungsten is the traditional choice for AC aluminium because it holds up better than lanthanated at electrode-positive temperatures. Keep a lanthanated or ceriated electrode on DC TIG for steel and stainless, and never grind a contaminated tungsten back onto the work.
For filler, use a 2/32 or 3/32 inch aluminium rod matched to your alloy, and size the filler to the material rather than the machine. Argon is the only shielding gas you need at these amperages, and 15 to 20 liters per minute is the range most aluminium TIG work runs at. Too little gas and you get oxidation; too much and the arc gets pushed around by the jet.
Grind the tungsten along its length only, on a dedicated wheel, and taper the point to roughly the same angle the manufacturer specified. A contaminated or incorrectly ground electrode is the most common cause of wandering arcs on aluminium, and it is also the easiest thing to get wrong as a beginner.
What You Still Need to Buy Alongside the Machine
Several machines here ship with a torch, foot pedal and argon regulator, and several do not. Before you order, check which of the following are in the box.
Welding helmet – the auto-darkening type with a shade rating appropriate to your amperage. Not optional for aluminium TIG.
Argon regulator and flow meter – included with the LOTOS and the AHP, and the most commonly missing item elsewhere.
Foot pedal – included with the PRIMEWELD, Weldpro, Everlast 200DV, LOTOS and the AHP. The ARCCAPTAIN uses a separate purchase with a proprietary connector, and it is not included with the Sunstac or the TOOLIOM.
Filler rod – 2/32 or 3/32 inch aluminium, sized to your material.
Argon cylinder – and somewhere secure and ventilated to keep it.
Fume extraction – aluminium oxide fume is a genuine inhalation concern, and a small extraction unit is inexpensive against the machine.
Proper ground clamp – several owners in this roundup reported replacing the supplied clamp.
Consumables add up over time in a way the purchase price does not reveal. Tungsten, collet sets, nozzles, cups and argon are a recurring cost, and a machine that eats consumables faster is a machine that costs more to own than its specification suggests.
Frequently Asked Questions
Are Harbor Freight TIG welders any good?
The answer depends on which machine and whether it has real AC output. Harbor Freight has sold several TIG welders under the Vulcan and Titanium Unlimited names, and the ones that weld aluminium are the AC/DC models. A DC-only unit sold as a TIG welder physically cannot weld aluminium. Check that AC is listed, check the minimum amperage for starting an arc, and check whether the torch, foot pedal and regulator are included, because on budget machines they frequently are not.
How thick can a 200 amp TIG weld aluminum?
A 200 amp class machine handles roughly 1/8 inch aluminium comfortably and 1/4 inch with careful settings and stringer beads. Thin material below 1/16 inch is limited by the minimum amperage you can start an arc at rather than by the maximum. Thicker plate is possible in multiple passes, but the heat has to go somewhere. Owner reports commonly describe a 210 amp machine handling 1/8 to 1/2 inch while failing on pop can thin material.
What’s a good starter TIG welder?
A good starter TIG welder for aluminium needs genuine AC output, high frequency start, a foot pedal and a pulse function, and a square wave AC output is the one that matters most. Several machines in this roundup deliver all four with the torch, foot pedal and regulator included, which makes them far easier to start on than a cheaper DC-only unit with nothing in the box.
What type of welder is best for welding aluminium?
An AC/DC TIG welder is the right answer for thin to medium aluminium because TIG gives you heat control that MIG cannot match. For thick plate and production work, a spoolgun MIG machine rated for aluminium is faster. Stick welding is possible with the right electrode but is not the first choice for aluminium. If you only ever weld one material and it is thick aluminium, a multiprocess machine with a plasma cutter may serve you better than a pure TIG.
Do I need AC TIG to weld aluminum?
Yes. Aluminium’s oxide layer melts at a much higher temperature than the base metal, so a DC-only machine melts the metal and leaves the oxide sitting on the puddle, which prevents fusion. AC current alternates polarity, and the electrode positive half-cycle scrubs the oxide away. This is the number one mistake buyers make, and it is only visible after the machine is set up and running.
Is pulse TIG necessary for aluminium?
It is not strictly necessary on thick plate, but it is close to essential on thin sheet. Pulse TIG cycles between a peak and a base current so the puddle has time to cool, which is what prevents burn-through and warping on material under 1/16 inch. Advanced pulse modes on machines like the Everlast PowerTIG 210EXT also raise travel speed and reduce distortion. If your work is only 1/4 inch and thicker, standard AC is enough.
The Best Aluminum TIG Welder Is the One You Will Actually Use
Our best TIG welders for aluminum list starts with the PRIMEWELD TIG225X, a 225 amp AC/DC machine rated for 1/4 inch aluminium with 200 Hz pulse, a genuine CK Worldwide torch in the box, and the widest owner feedback base of anything we assessed. For the deepest control over oxide cleaning, the ARCCAPTAIN TIG200P takes square and triangular waveforms that no other machine in this range matches.
If you are starting from nothing, the LOTOS TIG200ACDC or the Weldpro 200A get you a working AC/DC aluminium machine with the torch, foot pedal and regulator already included. If warranty length and a support line matter to you, the AHP AlphaTIG 203Xi carries three years. If you work in places a 60 pound machine cannot reach, the TOOLIOM at 27.9 pounds is the practical answer.
Whatever you choose, verify three things before you order: real AC output, a minimum amperage low enough for your thinnest material, and whether the foot pedal and argon regulator are in the box. Those three checks prevent almost every aluminium TIG disappointment we have seen. For broader process coverage, our aluminum accessory roundup covers the supporting gear side of the shop.
